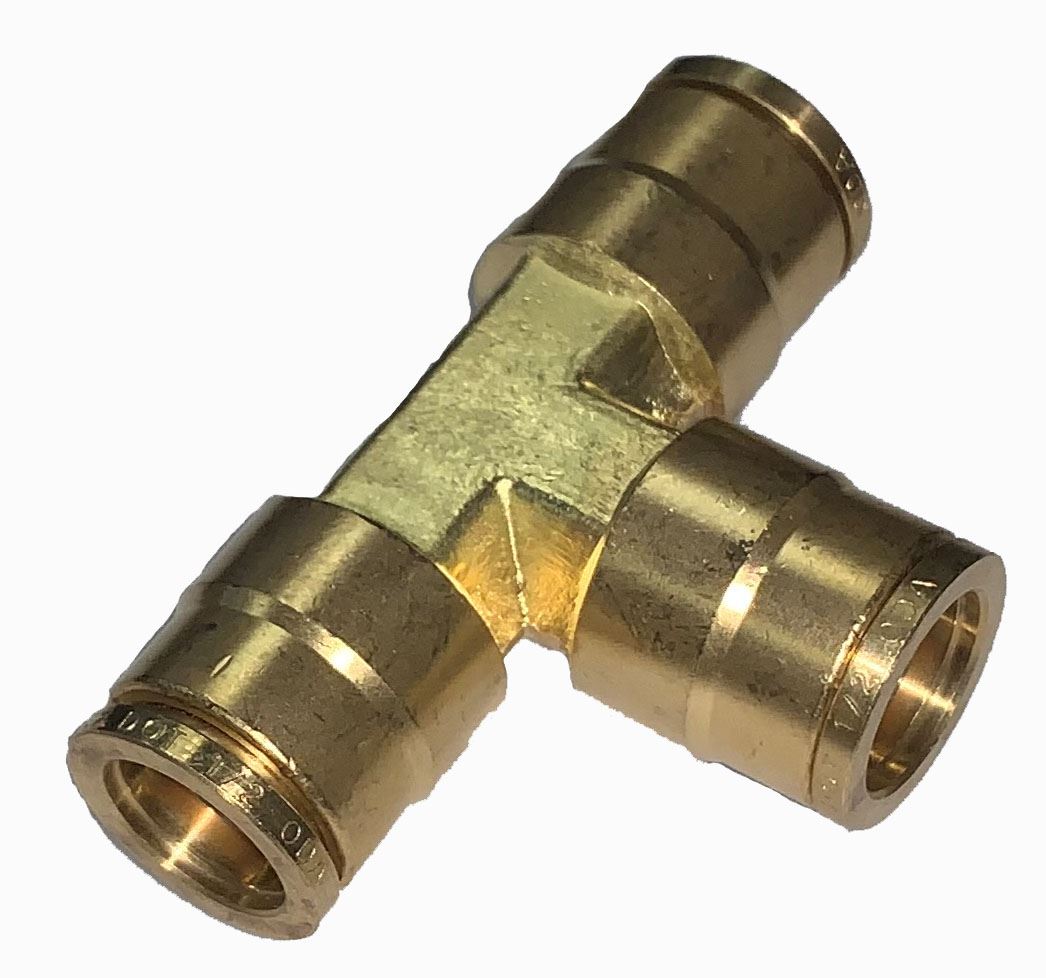

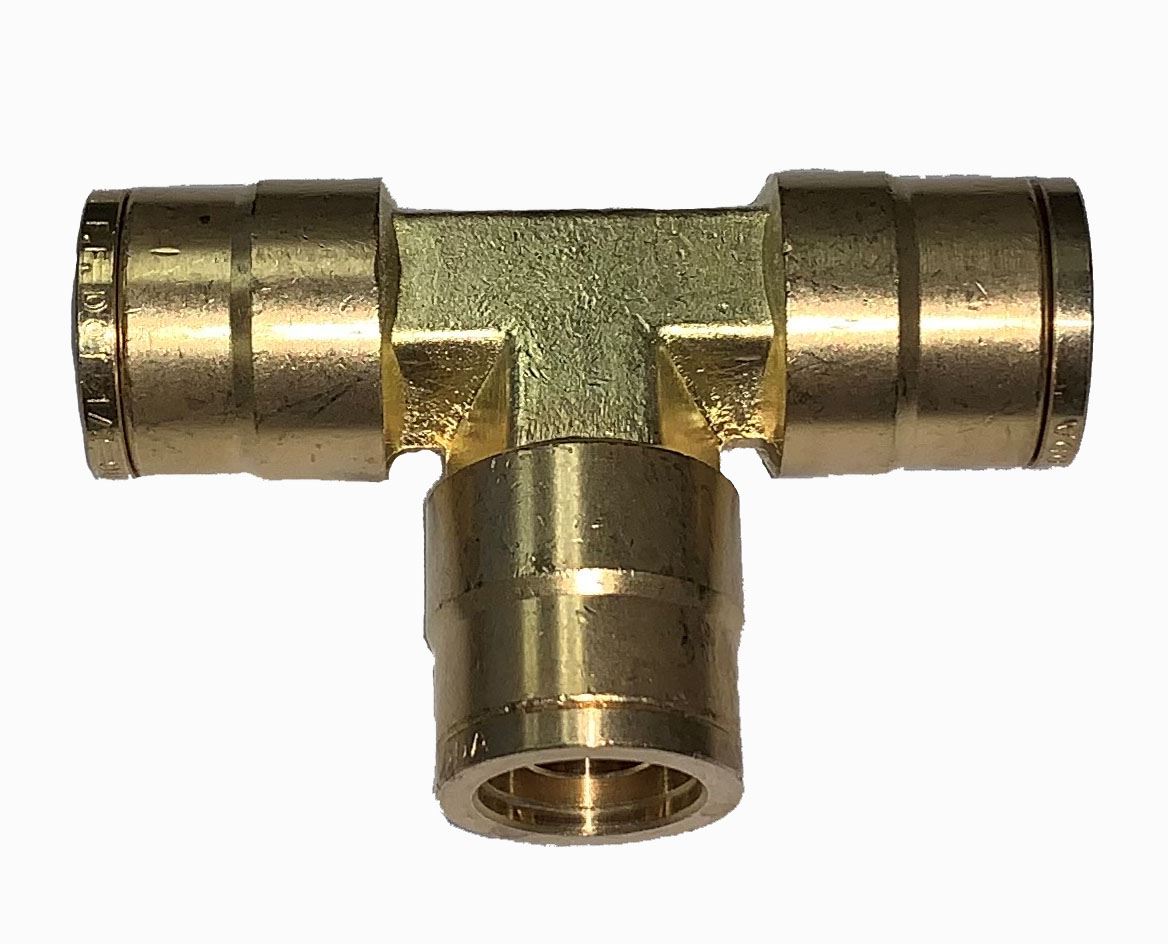

Fairview PC1464-10 5/8 Tube OD x 5/8 Tube OD x 5/8 Tube OD Brass D.O.T. Push-To-Connect Union Tee Air Brake Fitting. Fairview's Union Tees Feature A Labor Saving Full Flow Design That Requires No Tools
Applications:• Air brake systems. Used with copper tubing for rigid plumbing along frame and air tank• Use with J844D Nylon Air Brake Tube• D.O.T. RECOGNIZED FOR ALL AIR BRAKE APPLICATIONS EXCEPT THOSE FOR USE BETWEEN FRAME AND AXLE OR BETWEEN TOWED AND TOWING VEHICLES
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: Union Tee• Tube OD: 5/8"• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.30 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview PC1464-8 1/2 Tube OD x 1/2 Tube OD x 1/2 Tube OD Brass D.O.T. Push-To-Connect Union Tee Air Brake Fitting. Fairview's Union Tees Feature A Labor Saving Full Flow Design That Requires No Tools
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: Union Tee• Tube OD: 1/2"• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.23 lbs
Fairview PC1464-6 3/8 Tube OD x 3/8 Tube OD x 3/8 Tube OD Brass D.O.T. Push-To-Connect Union Tee Air Brake Fitting. Fairview's Union Tees Feature A Labor Saving Full Flow Design That Requires No Tools
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: Union Tee• Tube OD: 3/8"• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.16 lbs
Fairview PC1464-12 3/4 Tube OD x 3/4 Tube OD x 3/4 Tube OD Brass D.O.T. Push-To-Connect Union Tee Air Brake Fitting. Fairview's Union Tees Feature A Labor Saving Full Flow Design That Requires No Tools
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: Union Tee• Tube OD: 3/4"• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.34 lbs
Fairview PC1462-10 5/8 Tube OD x 5/8 Tube OD Brass D.O.T. Push-To-Connect Union Coupling Air Brake Fitting. Fairview's Union Couplings Feature A Labor Saving Full Flow Design That Requires No Tools
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: Union Coupling• Tube OD: 5/8"• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.20 lbs
