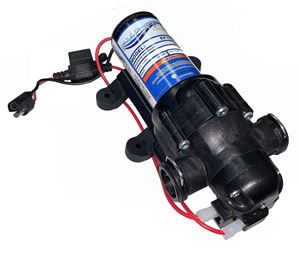

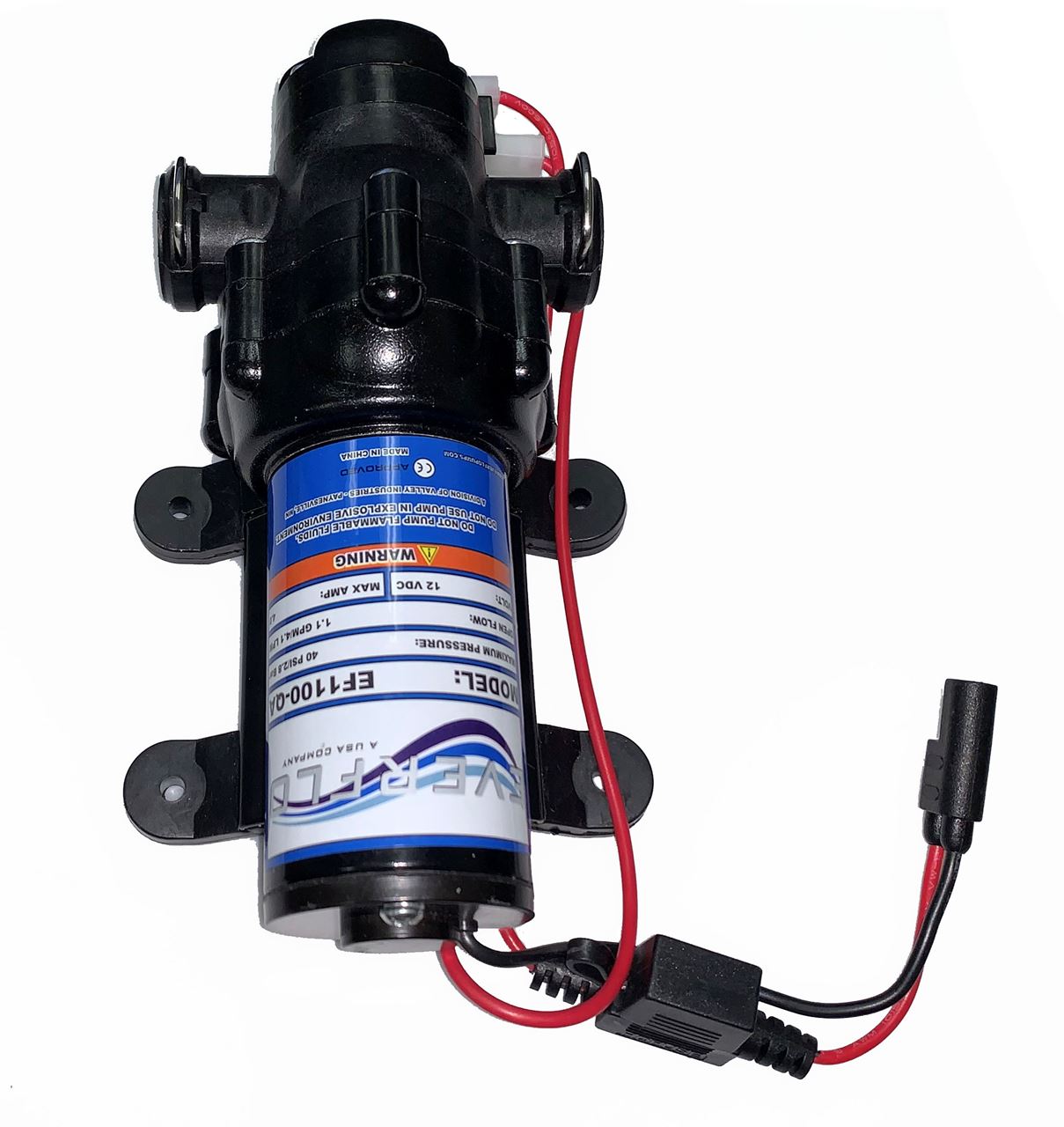

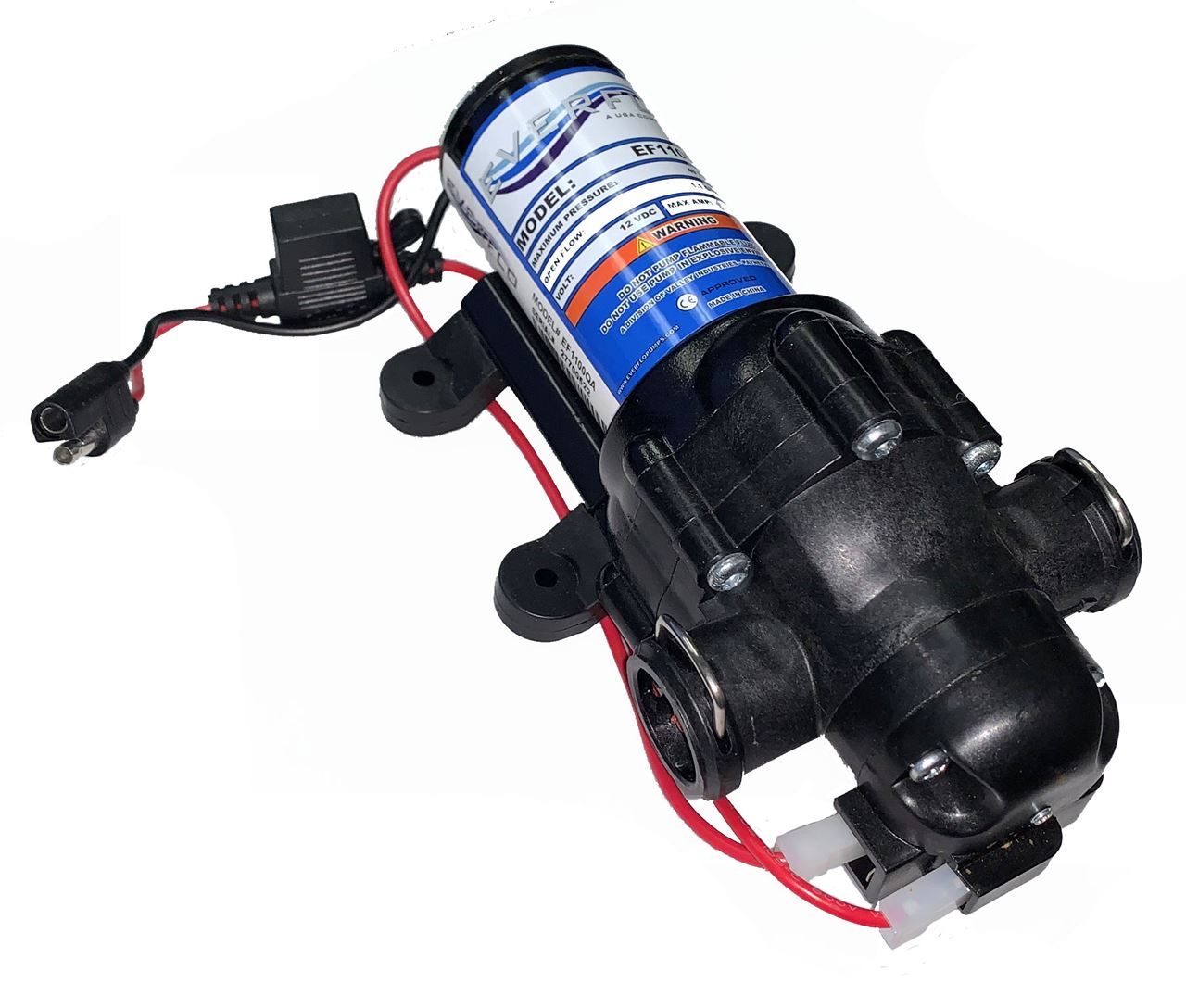

Picture of Everflo Diaphragm Pump 12 V, 40 PSI, 1.1 GPM QA Ports

Everflo Diaphragm Pump 12 V, 40 PSI, 1.1 GPM QA Ports

SKU: EF1100-QA

Brand: Everflo

$41.37

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Everflo EF1100-QA Diaphragm Pump with Quick Attach Ports. Demand Switch – Operates only when liquid flow is required. Replacement for agricultural sprayers and fluid transfer applications.


Features:
• Polypropylene pump housing and valve plate
• Corrosion Resistant Viton® Valves – Santoprene® Diaphragm
• Inline fuse protection
• Honeywell™ Micro Switch
• Self Priming up to 4’ above fluid level
• Zinc Plated Steel fasteners
• Polypropylene 2” Motor Shell
• Approved for use with Round-Up®


Specifications:
• Demand Switch – Operates only when liquid flow is required
• Max. Flow: 1.1 GPM
• Max. Pressure: 40 PSI
• Max. Fluid Temperature: 140° F
• Voltage: 12 VDC
• Max. Amps: 4.0
• Inlet/Outlet Ports: QA
• Wire leads with 2-pin connector
• Pump Dry Weight: 2.0 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

GP Quick Connect Fittings 5,000 PSI (SS Plug & SS Socket)

SKU: 88.0155


General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)


Features:
• Quick disconnect design
• Body Material: 304 Stainless steel
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Works with standard quick connects
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $8.26

Inline High-Pressure Filter 5,000 PSI 40 GPM 1/2" NPT-F x 1/2" NPT-M

SKU: 101146


General Pump 101146 Stainless Steel Turbo Nozzle Inline High-Pressure Filter 5,000 PSI 40 GPM 1/2" NPT-F x 1/2" NPT-M. Keeps debris out of nozzle and extends nozzle life


Features
• 100 mesh, stainless steel mesh screen is standard
• 60 mesh, stainless steel mesh screen is optional (Part No. 640055)
• Easy to install
• Easy to disassemble and assemble for cleaning
• Made with durable long-lasting materials
MADE IN USA


Specifications
• Max Pressure: 5,000 PSI
• Max Volume: 40 GPM
• Max Temp: 200° F.
• Inlet: 1/2" NPT-F
• Outlet: 1/2" NPT-M
• Material: Stainless Steel, Buna-N
• Dimensions: 3.5" x 1.25"
• Weight: 0.70 lb

  Price: $49.41

QD Socket, SS 1/2 x 1/2 NPT-M 5,000 PSI

SKU: D10091


General Pump D10091 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-M 5,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: 304 Stainless steel
• Socket Size: 1/2"
• Thread: 1/2” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS3MSS
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $11.09

QD Plug, SS 1/2 x 1/2 NPT-M 6,000 PSI

SKU: D10093


General Pump D10093 Quick Disconnect Coupler Plug Stainless Steel 1/2” x 1/2" NPT-M 6,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 1/2"
• Thread: 1/2” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP3MSS
• Weight: 0.15 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $4.10
