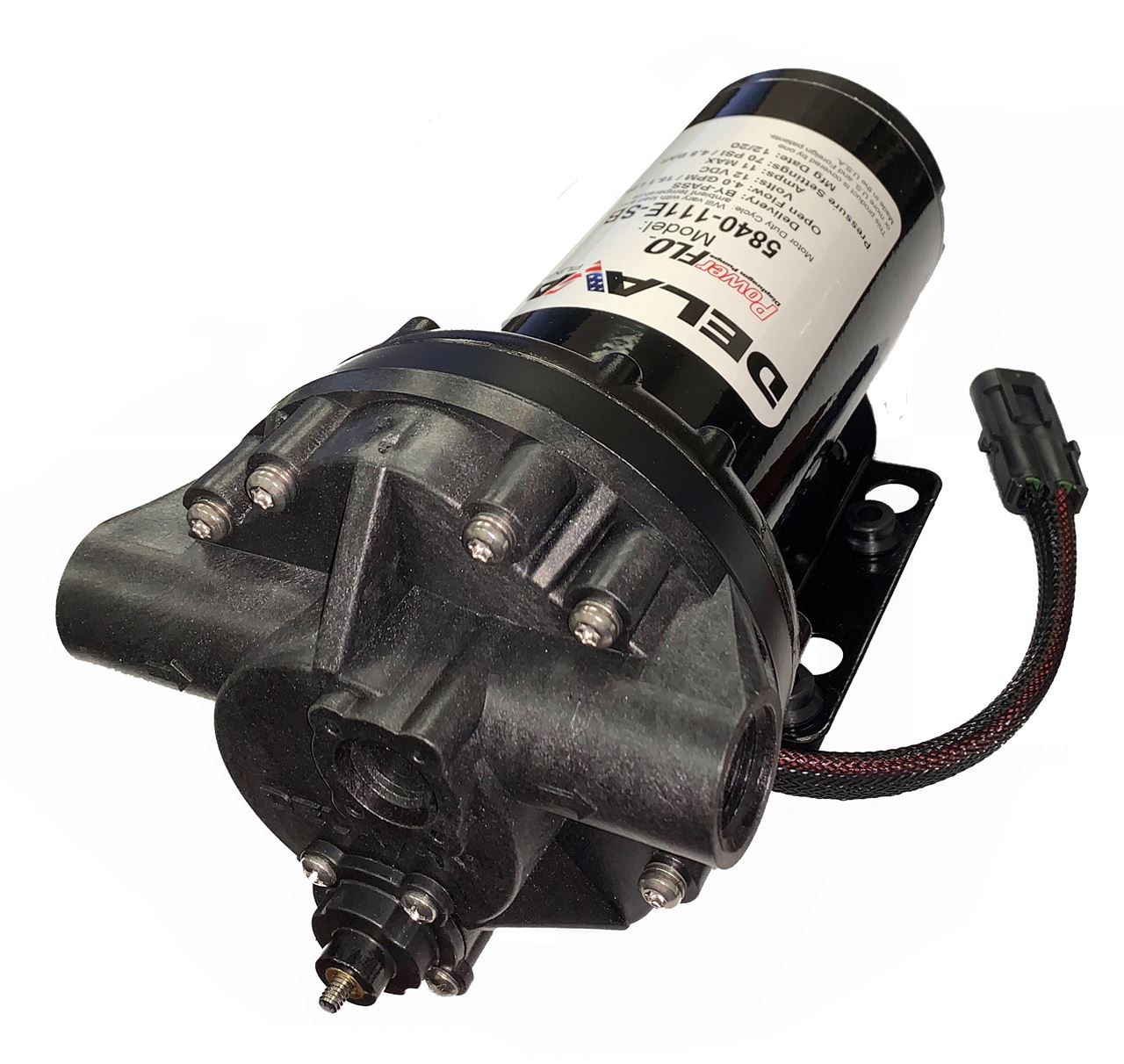

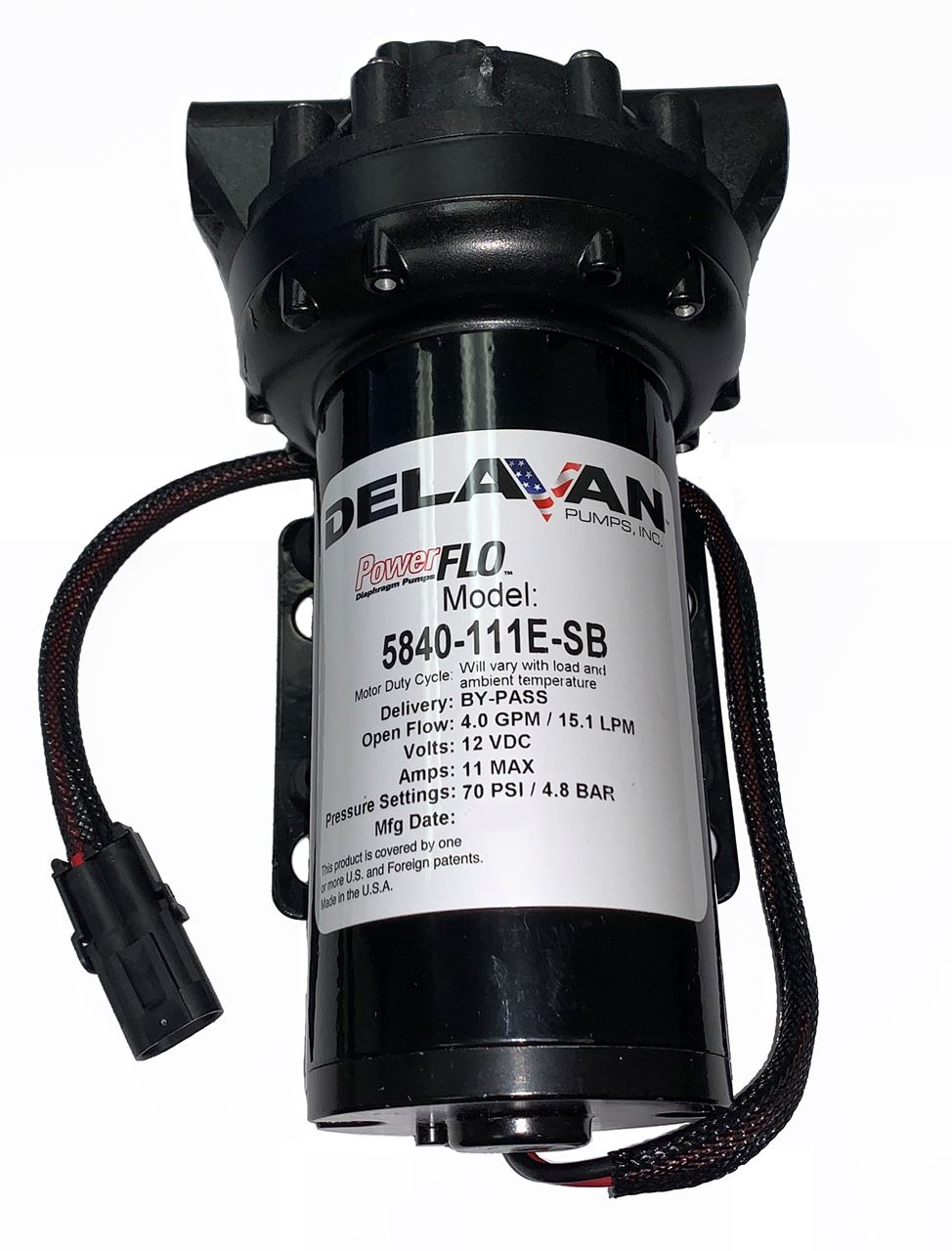

Picture of Delavan Diaphragm Pump 12V, 60PSI, 4.0GPM, BYP

Delavan Diaphragm Pump 12V, 60PSI, 4.0GPM, BYP

SKU: 5840-111E-SB

Brand: Delavan Fluid Power


Product Description

Delavan PowerFLO™ 5840 Series 4.0 GPM 60 PSI Diaphragm Pump. Bypass Design – Continuous operation

• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 12” long with Delphi Weatherproof Electrical 2 Pin Connector
• Amps: 11 Max
• Duty Cycle: See Heat Rise graph

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act

Manufacturer Recommendation:
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor

• Bypass Design – Continuous operation
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 4.0 GPM
• Max Pressure: 60 PSI
• Pressure Settings: 70 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Packaging: Small box
• Weight: 7.0 lbs
