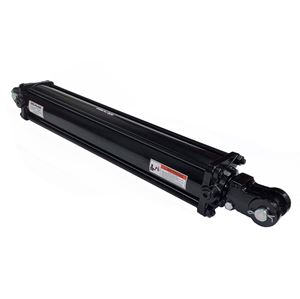

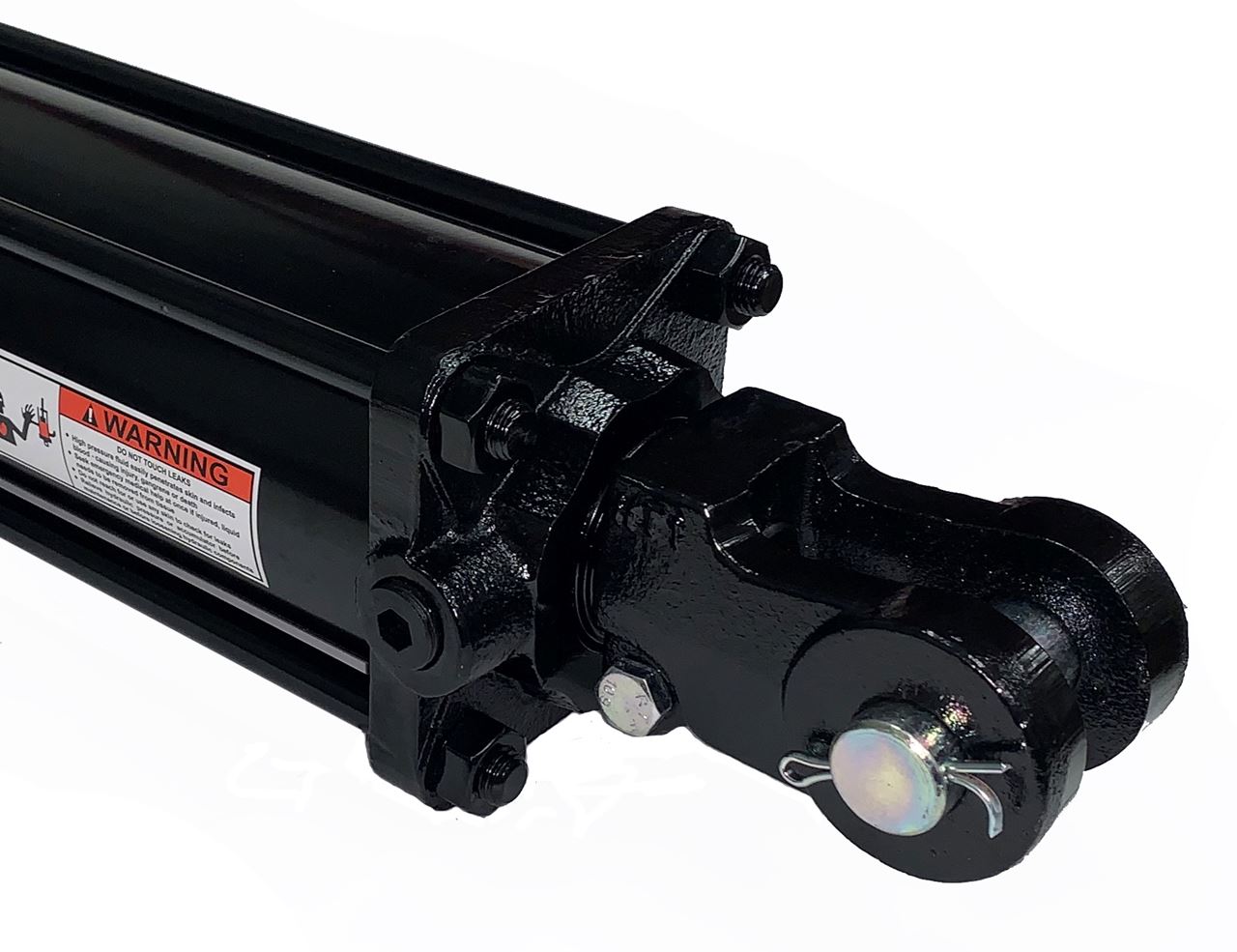

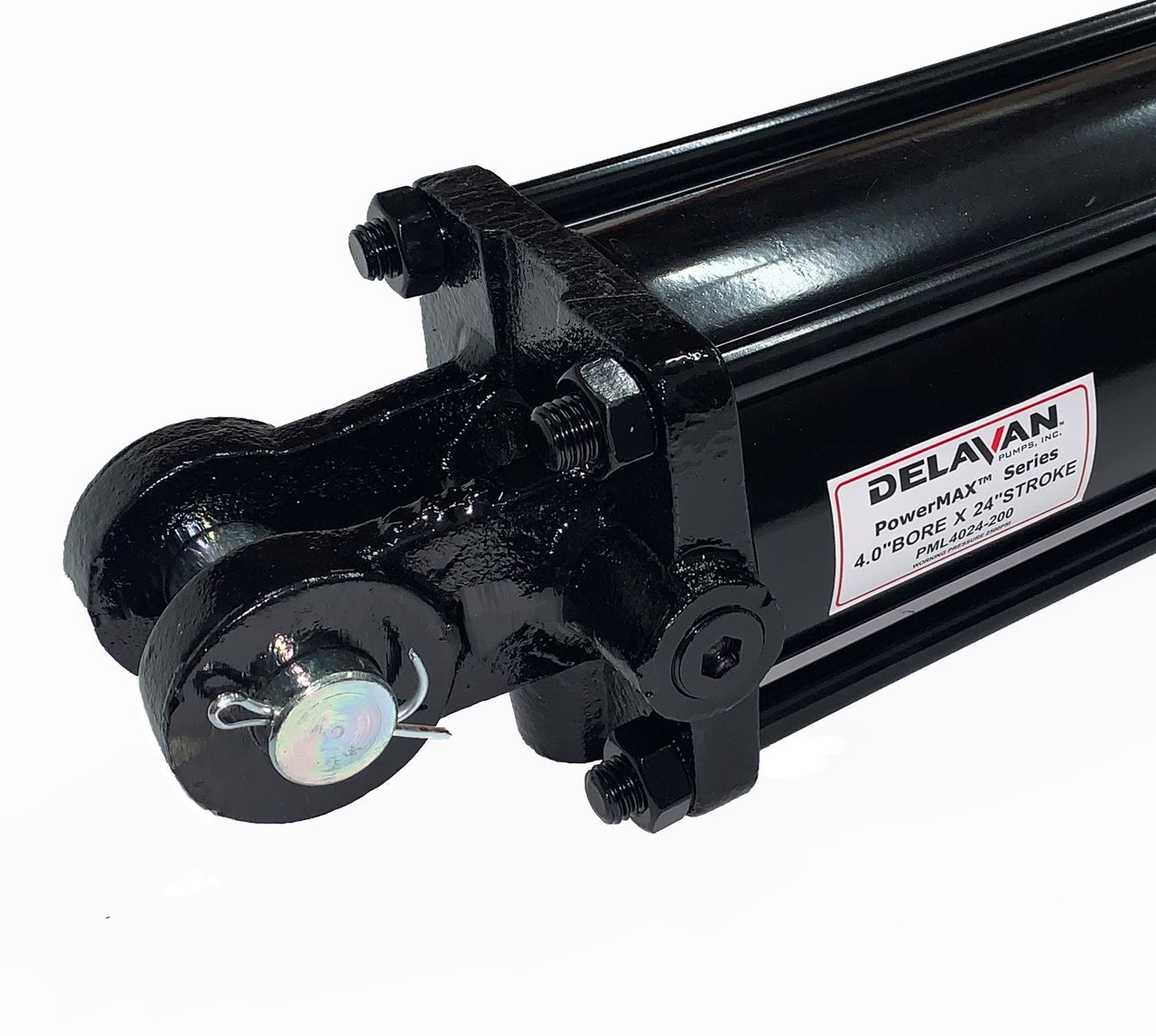

Delavan PowerMAX™ PML4024-200 4" x 24" x 2" Hydraulic Cylinder. This Tie-Rod Cylinder has 2,500 PSI Working Pressure and NPT Ports. Delavan PowerMax Hydraulic Cylinders are designed and manufactured to meet the most demanding requirements.
Features:• Chromed, polished and individually heat-treated shaft provides extended cylinder life• Built tough enough to stand up to the roughest conditions • Pins and retainers: high tensile steel, zinc plated to prevent corrosion, comes with cotter pin retainers• Ports: double ported NPTF for greater flexibility of assembly, unless otherwise stated, cylinders assembled with ports inline• Piston nut: heavy duty automation grade self locking piston nut holds piston in place under high cycle loading • Piston: ductile iron, precision machined providing a malleable bearing surface for extended cylinder life• Piston seal: 90 durometer O-ring with anti extrusion back up washers provide sealing under high load conditions• Tie-rods: high tensile steel to prevent failure under high pressure• Cylinder shaft: high strength, hard chrome plated shaft provides extended cylinder life in harsh applications• Tube: precision finished skive and burnished heavy wall steel tubing for extended seal and cylinder life• Rod seal: Premium Double Lip Polyurethane BS profile using a double lip design for leak-free performance throughout the pressure range and longer life expectancy• Rod cap and clevis cap: ductile iron comes with drilled oil passages, offering increased bearing surface for high shock and side load applications• Rod wiper: Polyurethane AN or D Style provides a tough/hard material to remove contaminants from shaft surface• Rod clevis: ductile iron able to withstand continuous high load without wear or fracture • All cylinders are 100% hydraulically tested up to 1.5 working pressure
Specifications:• Bore: 4”• Stroke: 24”• Rod Diameter: 2.0”• Working Pressure: 2,500 PSI • Pin to Pin Center Retracted x Extended: 34-1/4” x 58-1/4”• Clevis Pin Diameter: 1”• Port Size: 1/2” FNPT • Max Rated PSI on Full Extension: Full PSI• Max Rated Column Load on Full Extension: 31,416 Lbs• Packaging: Small box• Warranty: 3 Years from date of purchase• Weight: 73.0 lbs
