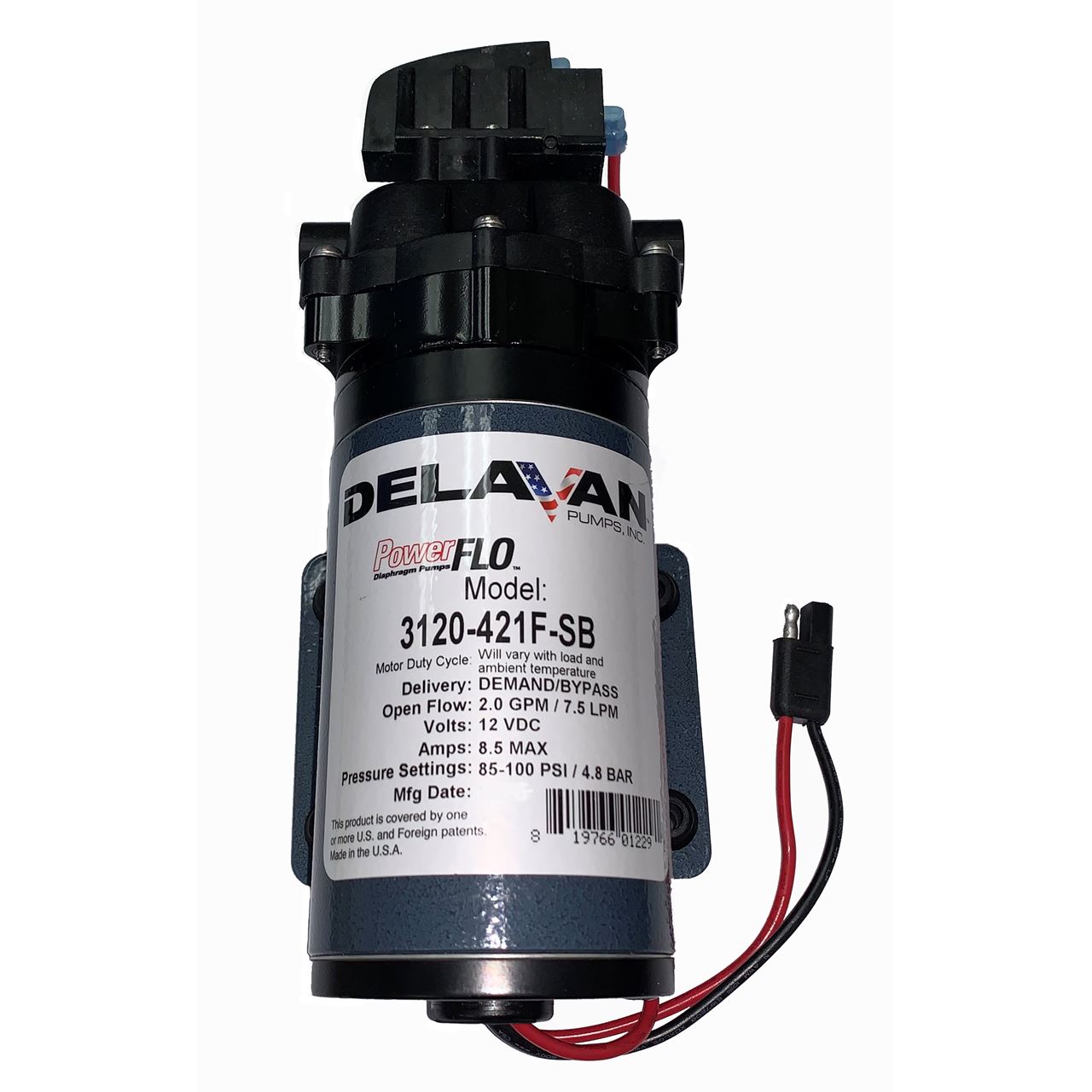

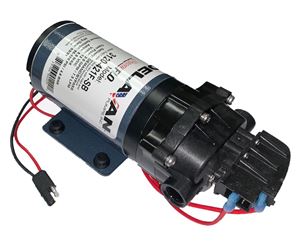

Delavan SmartFLO™ Series 3120-421F-SB 2.0 GPM 85-100 PSI Diaphragm Demand-Bypass Pump with 3/8” Female Threaded Ports. SmartFLO™ technology automatically adapts flow rates to provide optimal performance in any application. Harmful rapid switch cycling is completely eliminated to extend pump life with no additional setup required

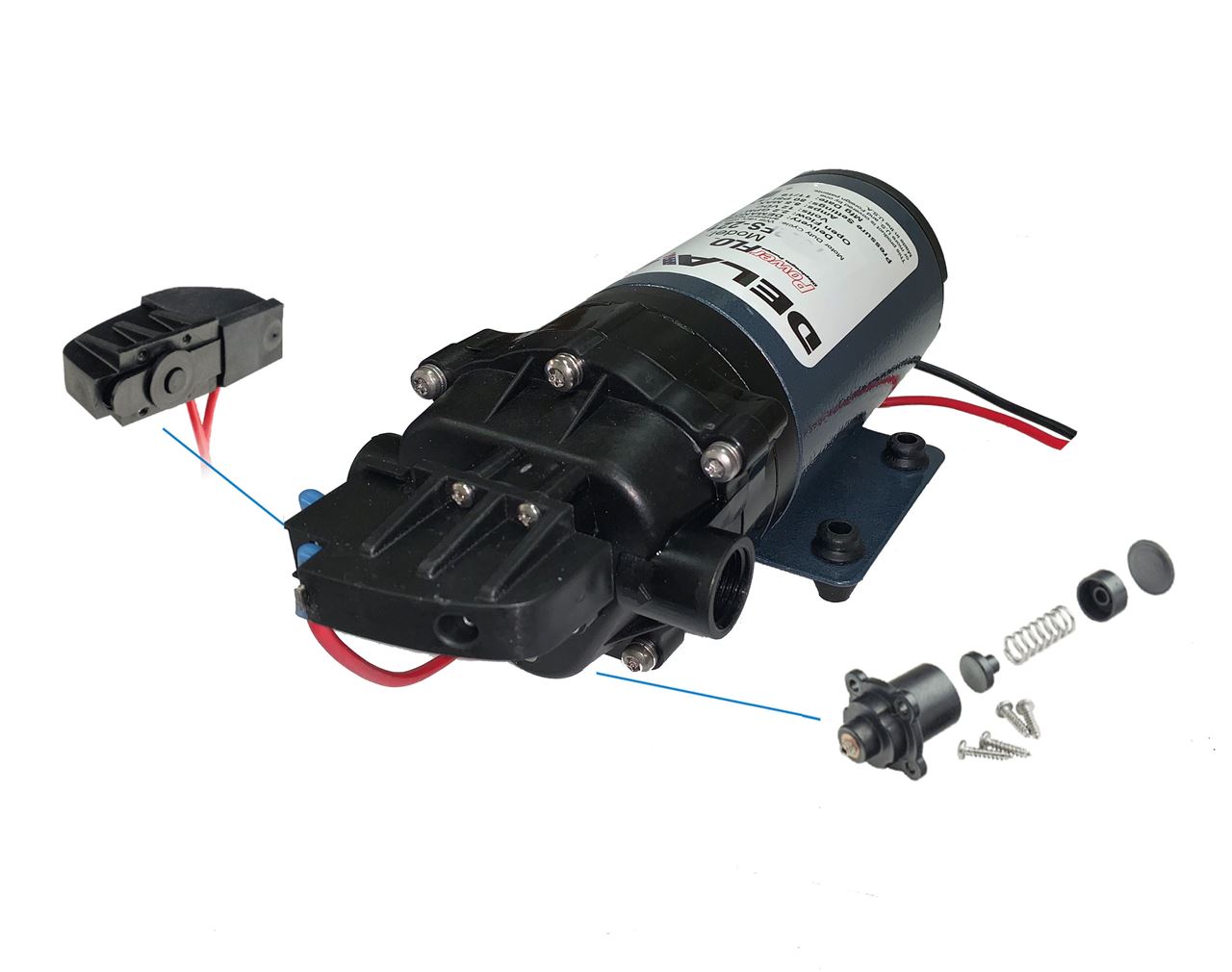

SmartFLO™:• Combines the advantages of both Bypass and Demand Controls• Utilizes Pressure Sensing Demand Switch AND Internal Bypass Valve• Automatically adapts to changing system demands• Constant and instant flow eliminates pump cycling• Will turn off when not in use and outlets are closed• Low chance of overheating when run for long periods
Fits All Applications:• RV and Marine systems• Small to medium size sprayers• Multi-outlet systems
Features:• 100% Factory tested• Self-Priming• Can be run dry• High Torque Motor for superior flow at pressure • 2 Year warranty from date of purchase
SmartFLO Pump Model 3222-421F-SB Video
Specifications:• Pump Type: Bypass - Demand, 3-chamber positive displacement• Flow: Up to 2.0 GPM• Valves: Viton• Diaphragm: Santoprene• Power: 12VDC• Leads: 12 AWG, 6” long with 2-pin molded connector• Amps: 8.5 Max• Pressure Settings: 85-100 PSI • Inlet/Outlet Ports: 3/8” FNPT• Packaging: Small box• Weight: 5.6 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Repair Kit for SG-2218-18 and SG-2200 (New Design)
White piece does not have o-ring and seal is on the shaft
