www.PWMall.com. PWMall-3222-421F-SB-Delavan SmartFLO Diaphragm Pump 12 V, 85-100 PSI 2.2 GPM 3/4" QA Ports

See All 52 items

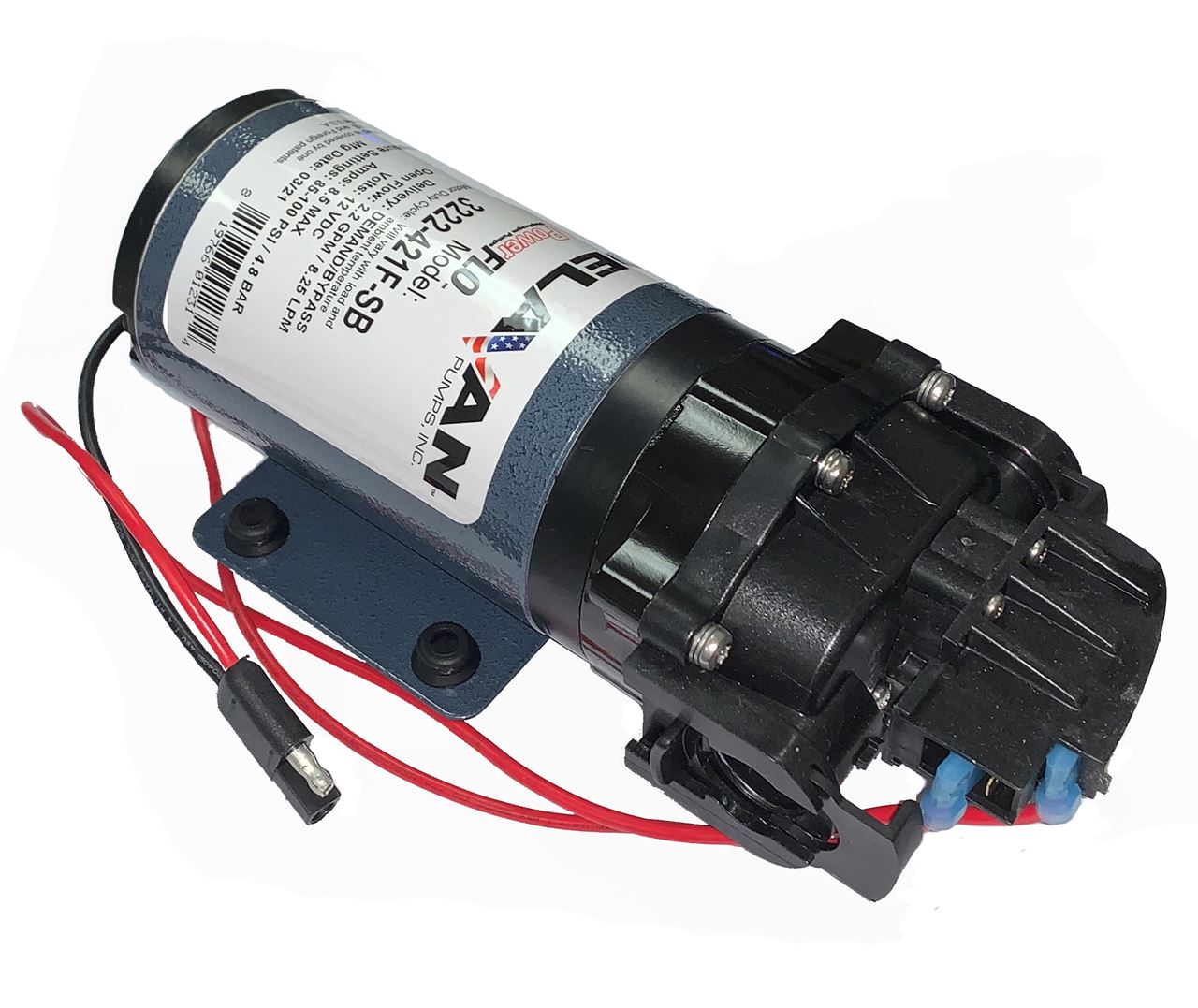

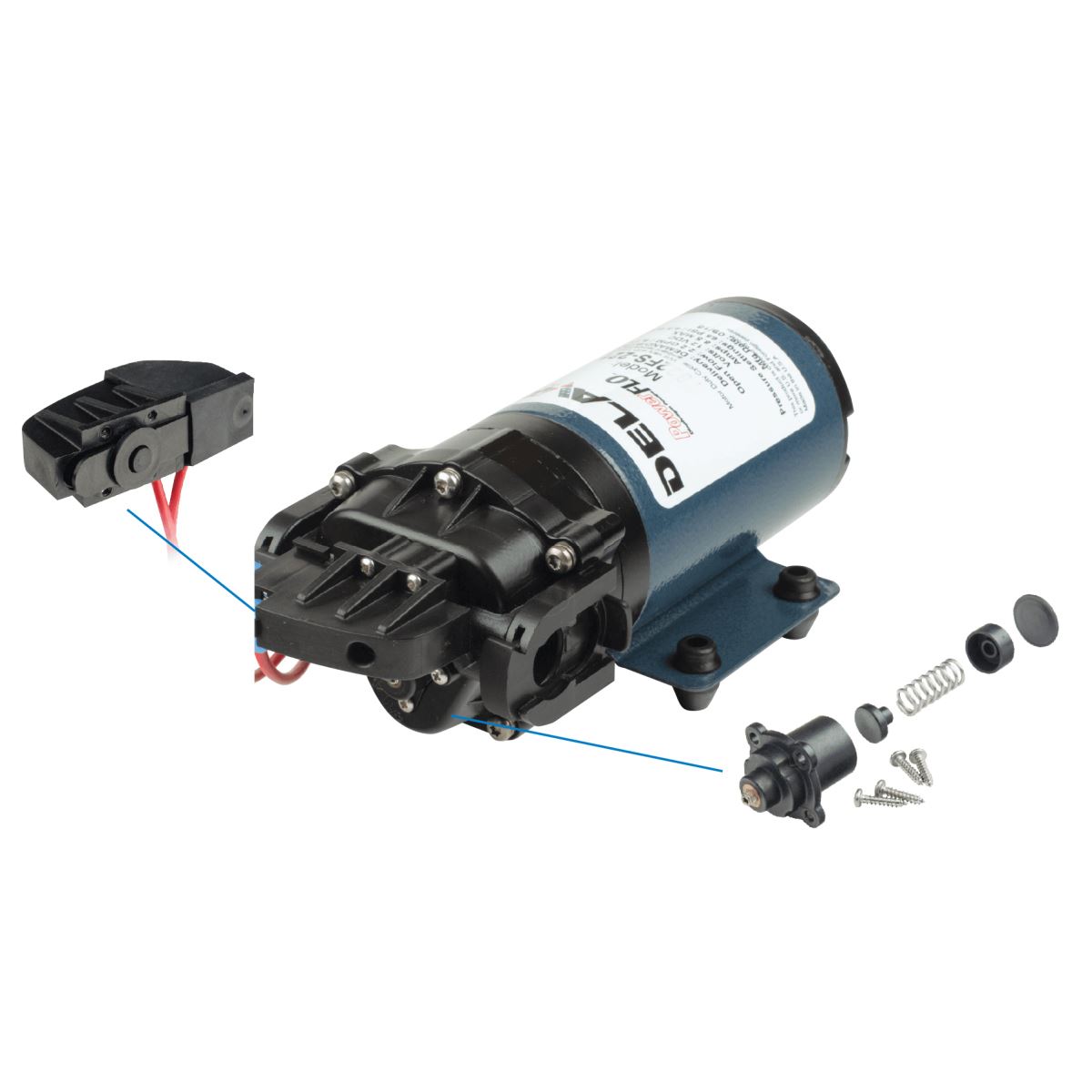

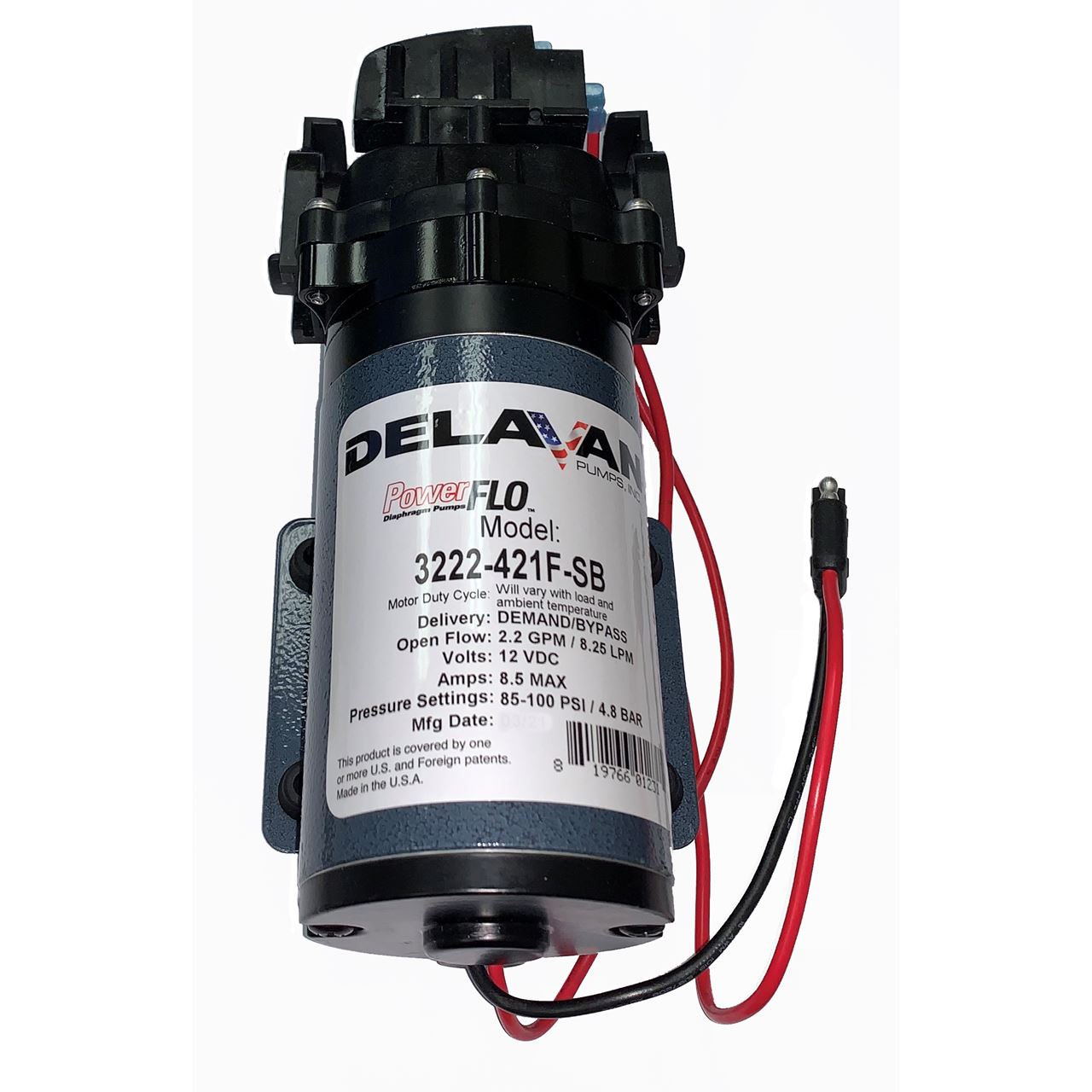

Delavan SmartFLO Diaphragm Pump 12 V, 85-100 PSI 2.2 GPM 3/4" QA Ports

SKU: 3222-421F-SB

Brand: Delavan Fluid Power

Price: $82.96

QTY:

ADD TO CART

ADD TO WISHLIST

Product Description

Delavan SmartFLO™ Series 3222-421F-SB 2.2 GPM 85-100 PSI Diaphragm Demand-Bypass Pump with 3/4” Quick Attach Ports. SmartFLO™ technology automatically adapts flow rates to provide optimal performance in any application. Harmful rapid switch cycling is completely eliminated to extend pump life with no additional setup required

SmartFLO™:
• Combines the advantages of both Bypass and Demand Controls
• Utilizes Pressure Sensing Demand Switch AND Internal Bypass Valve
• Automatically adapts to changing system demands
• Constant and instant flow eliminates pump cycling
• Will turn off when not in use and outlets are closed
• Low chance of overheating when run for long periods

Fits All Applications:
• RV and Marine systems
• Small to medium size sprayers
• Multi-outlet systems

Features:
• 100% Factory tested
• Self-Priming
• Can be run dry
• High Torque Motor for superior flow at pressure
• 2 Year warranty from date of purchase

SmartFLO Pump Model 3222-421F-SB Video

Specifications:
• Pump Type: Bypass - Demand, 3-chamber positive displacement
• Flow: Up to 2.2 GPM
• Valves: Viton
• Diaphragm: Santoprene
• Power: 12VDC
• Leads: 12 AWG, 6” long with 2-pin molded connector
• Amps: 8.5 Max
• Pressure Settings: 85-100 PSI
• Inlet/Outlet Ports: 3/4” Quick Attach Ports
• Packaging: Small box
• Weight: 5.6 lbs

WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
