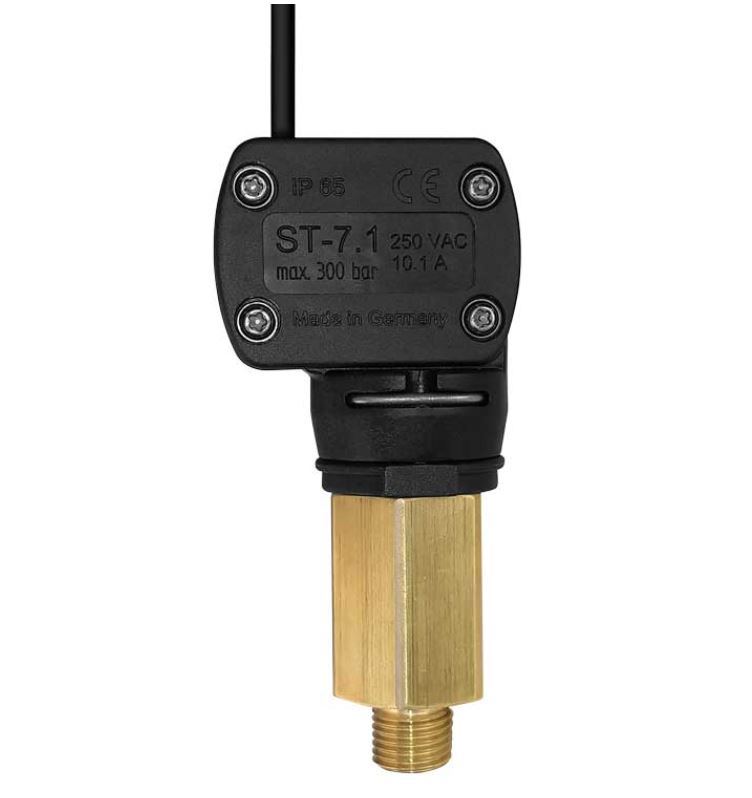

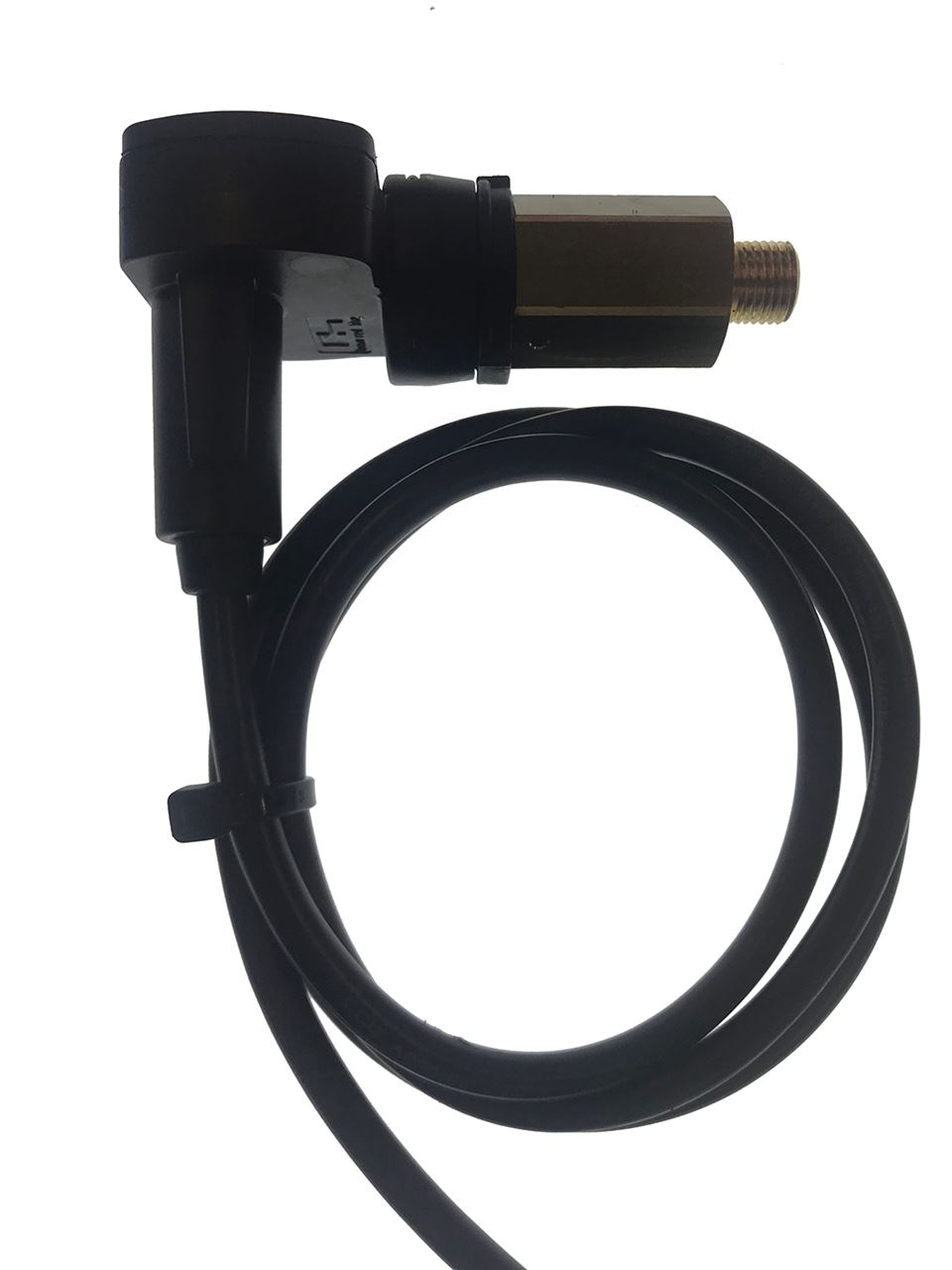

Suttner ST-7.1 Pressure Switch, 580 Switching Point (Black), 1/4" M 4,350 PSI

Features:
• IP 65 protection class
• Simultaneous N/O and N/C connection is possible
• The design of the micro switch allows comparably high inrush current (20 Amps N/C, 15 Amps N/O)
• The electrical capacity of the switch is 10.1 Amps (resistive load)
• No ingress of towing water into the environment of the microswitch possible

Suttner ST-7.1 Data Sheet

Specifications:
• Switch Point: 580 PSI (Black)
• Max. Pressure: 4,350 PS
• Voltage: 10.1 A - 250 VAC
• Max: Fluid Temperature: 194° F
• Cable Length: 37.4”
• Thread: 1/4” Male
• Material: Brass / plastic
• Protection Class” IP 65
• Weight: 0.65 lbs
