Picture of Suttner ST-7.1 Pressure Switch, 360 Switching (Red), 1/4" M 4,350 PSI

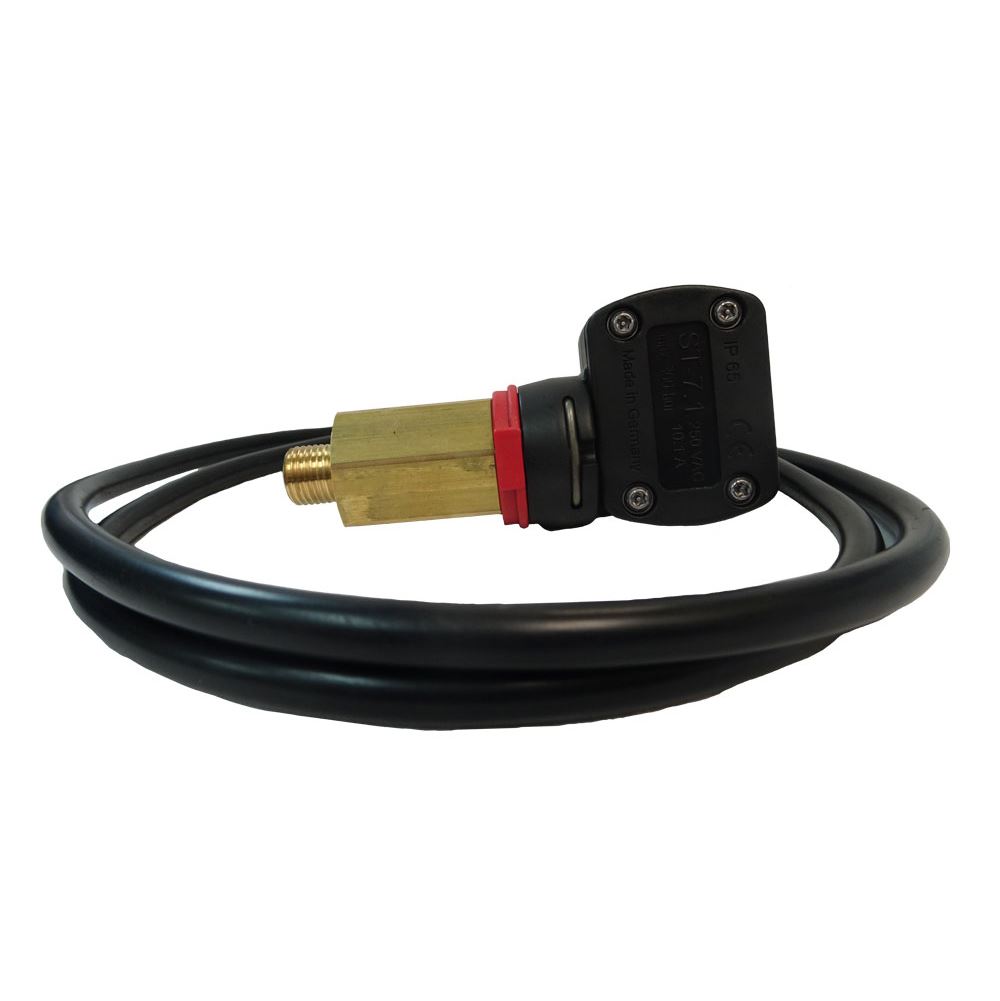

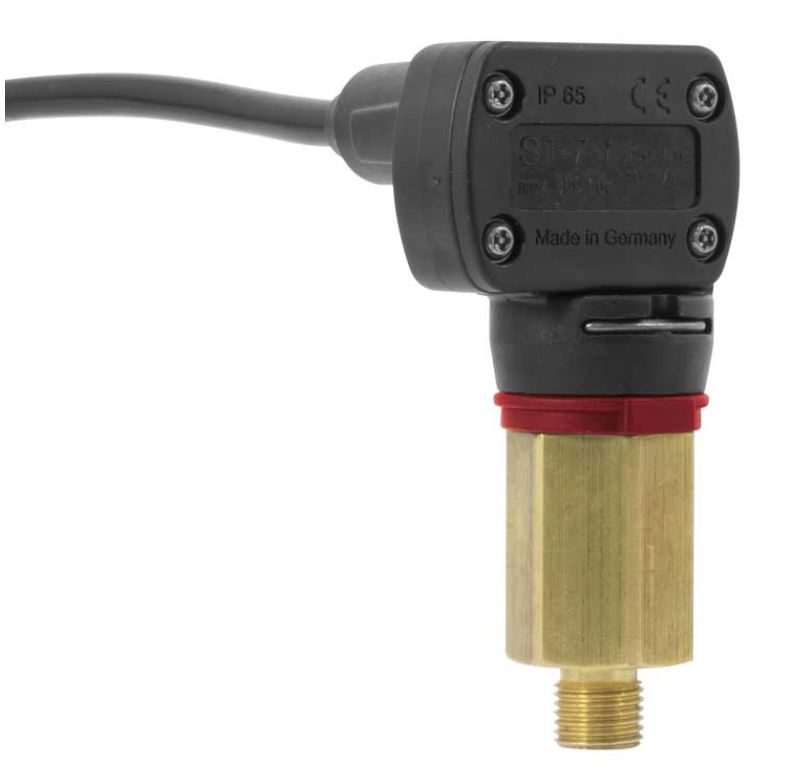

Suttner ST-7.1 Pressure Switch, 360 Switching (Red), 1/4" M 4,350 PSI

SKU: 200007801

Brand: Suttner America

$52.08

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-7.1 Pressure Switch, 360 Switching Point (Red), 1/4" M 4,350 PSI


Features:
• IP 65 protection class
• Simultaneous N/O and N/C connection is possible
• The design of the micro switch allows comparably high inrush current (20 Amps N/C, 15 Amps N/O)
• The electrical capacity of the switch is 10.1 Amps (resistive load)
• No ingress of towing water into the environment of the microswitch possible

Suttner ST-7.1 Data Sheet


Specifications:
• Switch Point: 360 PSI (Red)
• Max. Pressure: 4,350 PS
• Voltage: 10.1 A - 250 VAC
• Max: Fluid Temperature: 194° F
• Cable Length: 37.4”
• Thread: 1/4” Male
• Material: Brass / plastic
• Protection Class” IP 65
• Weight: 0.65 lbs
