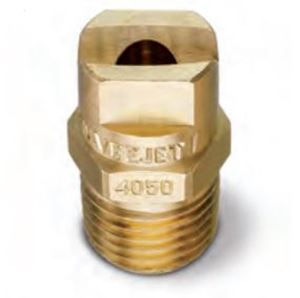

Spraying Systems 40º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray
Features• Flat fan type, tapered edge spray pattern• Consistent performance over the industry's largest range of flow rates and pressures• One-piece design• Uniform spray distribution with flow rates from .012 to 1237 gpm• Operating pressures up to 500 psi
TECHNICAL DATA SHEET
Specifications• Spray Angle: 40º • Capacity Size: 15• Operating Pressure: Up to 500 PSI• Material: Brass• Inlet Connection: 1/4" Male thread• Length: 1.0”• Hex: 9/16”• Net Weight: 0.8 Oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI
Features: • Quick disconnect design• Hardened Steel Zinc Plated
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCP2FS• Weight: 0.10 lb
General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCP2MS• Weight: 0.10 lb
General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI
Features: • Quick disconnect design• Brass• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: Brass• Socket Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCS2FB• Weight: 0.20 lb
Specifications• Spray Angle: 40º • Capacity Size: 20• Operating Pressure: Up to 500 PSI• Material: Brass• Inlet Connection: 1/4" Male thread• Length: 1.0”• Hex: 9/16”• Net Weight: 0.8 Oz
