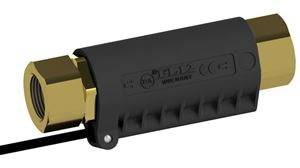

Picture of PA/General FL12/YFL12 4,500 PSI 26.4 GPM Flow Switch 3/4" NPT

PA/General FL12/YFL12 4,500 PSI 26.4 GPM Flow Switch 3/4" NPT

SKU: 28.0460.00

Brand: P.A. Srl

$116.35

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA FL 12 / General Pump YFL12 4,500 PSI 26.4 GPM Flow Switch with 3/4" NPT-F inlet


Features
• Electro-mechanical device in which the fluid passage moves a magnetized piston that opens an electric circuit. DN 20
• Magnetic drive obtained by the plunging piston movement
• Electrical insulation: class IP55
• Magnetic probe casing made of antiflame material


Specifications
• Rated Pressure: 4,000 PSI
• Permissible Pressure: 4,500 PSI
• Max Flow Rate: 26.4 GPM
• Activation Flow Rate: Horizontal: 2.0 GPM
• Activation Flow Rate: Vertical: 3.3 GPM
• Max Working Temp: 165° F
• Max. Voltage: 230 V
• Max. Curr. Strength: 3 A
• Cable Length: 49.2" (1250 mm)
• Electrical insulation: 55 IP - 0
• Materials: Brass, Stainless Steel, Buna-N, Plastic
• Inlet: 3/4" NPT-F
• Outlet: 3/4" NPT-F
• Weight: 34.4 oz.
