Picture of Suttner ST-160.3A Air Assisted Chemical Injector 3 Pairs of Injector & Nozzles #4.5

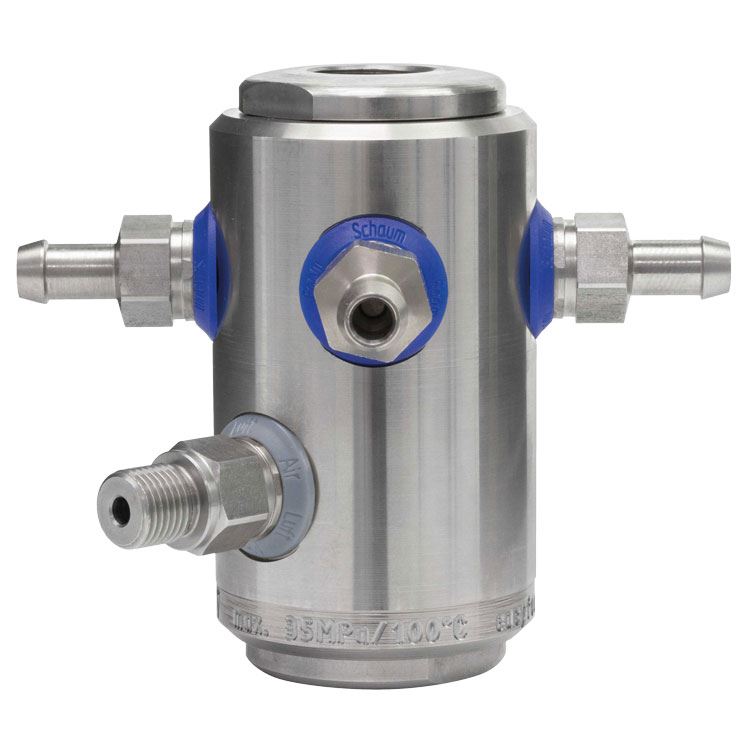

Suttner ST-160.3A Air Assisted Chemical Injector 3 Pairs of Injector & Nozzles #4.5

SKU: 200160300

Brand: Suttner America

$360.41

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner #4.5 ST-160.3A Air Assisted Stainless Steel Chemical Injector with 3 Pairs of Injectors & Nozzles. Injector for large water quantities and high dosages. Chemically resistant stainless steel 1.4305 / AISI 304 with compressed air connection and wall bracket


Features
• The stainless steel injector features three pairs of injector and nozzle in one housing which can be configured independently. This enables numerous metering and foam applications
• In order to produce large foam quantities in the low-pressure range, the injector is provided with an compressed air connection
• You can inject 3 of the same or three different cleaning agents at the same time
• Maximum draw rate per line is 7 – 8%
• Total injector draw rate will be 21% – 24%
• Each injector draw barb comes with a packet of dosing nozzles if you want to meter some of or all 3 draw lines


Specifications
• Nozzle/Orifice Size: 4.5
• Flow Rate: 1 - 24 GPM
• Pressure: 90 - 5,000 PSI
• Max Temp: 194° F.
• Inlet: 1/2” Female
• Outlet: 1/2” Female
• Air Connection: 1/4” Male
• Hose Barbs: .35” ID hose
Note: Optimum foam created 130°F or less
• Weight: 3.55 lb


Please use Nozzle Chart to determine proper nozzle size


Note: If between sizes, choose the larger nozzle size

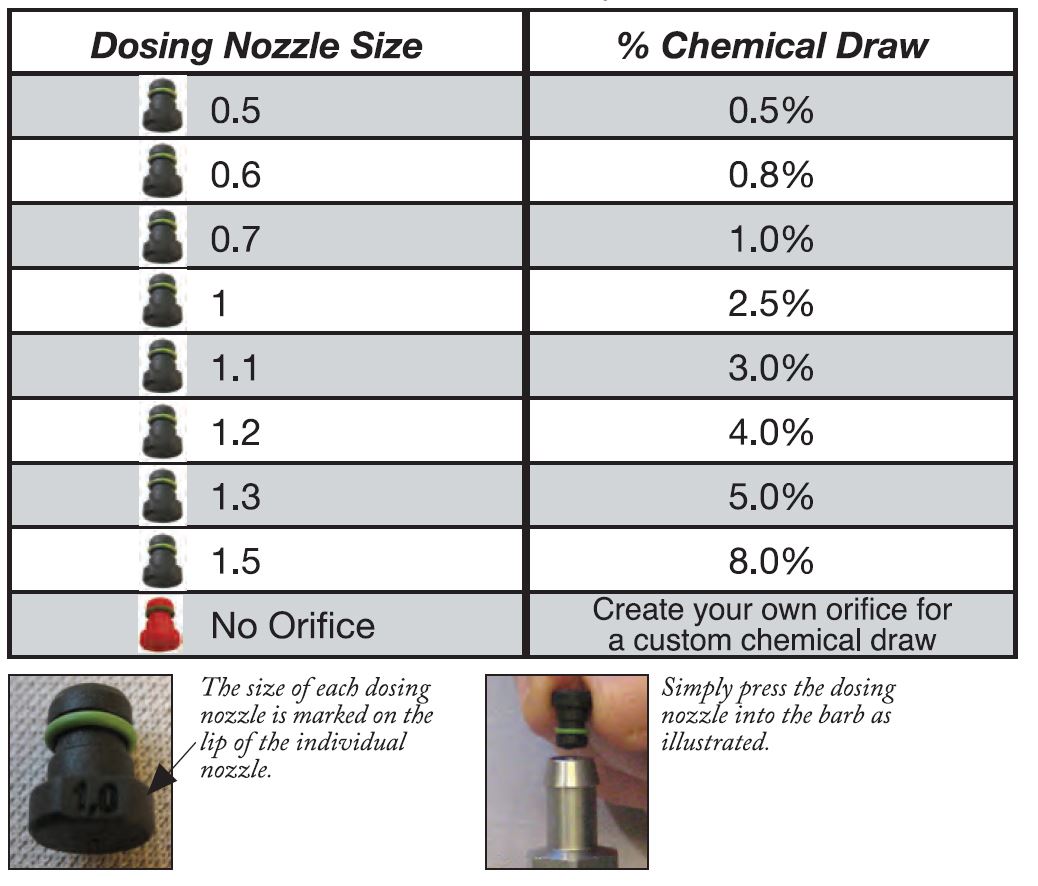

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
