Picture of Suttner ST-160.3A Extreme Air Assisted Chemical Injector 3 Pairs of Injector & Nozzles #4.5

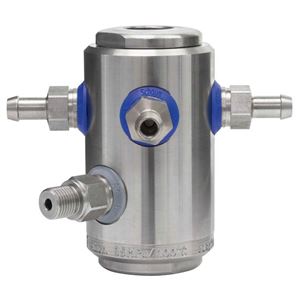

Suttner ST-160.3A Extreme Air Assisted Chemical Injector 3 Pairs of Injector & Nozzles #4.5

SKU: 200160300X

Brand: Suttner America

$514.27

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description

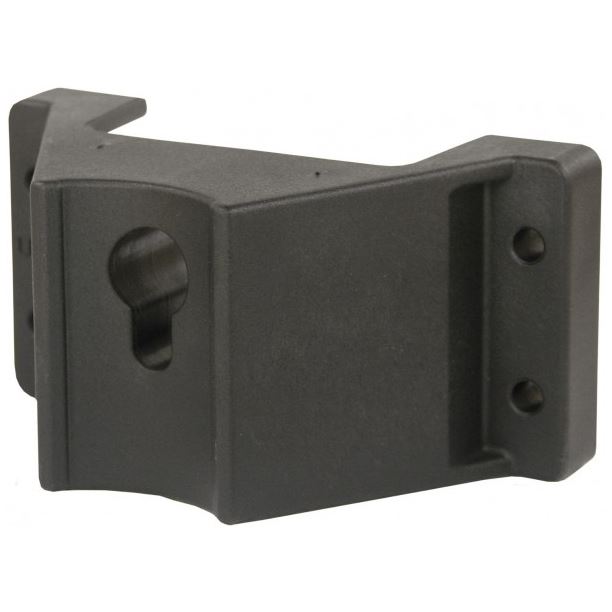

Suttner #4.5 ST-160.3A Extreme Air Assisted Stainless Steel Chemical Injector with 3 Pairs of Injectors & Nozzles. Injector for large water quantities and high dosages. Chemically resistant stainless steel 1.4305 / AISI 304 with compressed air connection and wall bracket


Features
Extreme chemical injectors for PH Level 2.0 or below
• The stainless steel injector features three pairs of injector and nozzle in one housing which can be configured independently. This enables numerous metering and foam applications
• In order to produce large foam quantities in the low-pressure range, the injector is provided with an compressed air connection
• You can inject 3 of the same or three different cleaning agents at the same time
• Maximum draw rate per line is 7 – 8%
• Total injector draw rate will be 21% – 24%
• Each injector draw barb comes with a packet of dosing nozzles if you want to meter some of or all 3 draw lines


Specifications
• Nozzle/Orifice Size: 4.5
• Flow Rate: 1 - 24 GPM
• Pressure: 90 - 5,000 PSI
• Max Temp: 194° F.
• Inlet: 1/2” Female
• Outlet: 1/2” Female
• Air Connection: 1/4” Male
• Hose Barbs: .35” ID hose
Note: Optimum foam created 130°F or less
• Weight: 3.55 lb


Please use Nozzle Chart to determine proper nozzle size


Note: If between sizes, choose the larger nozzle size

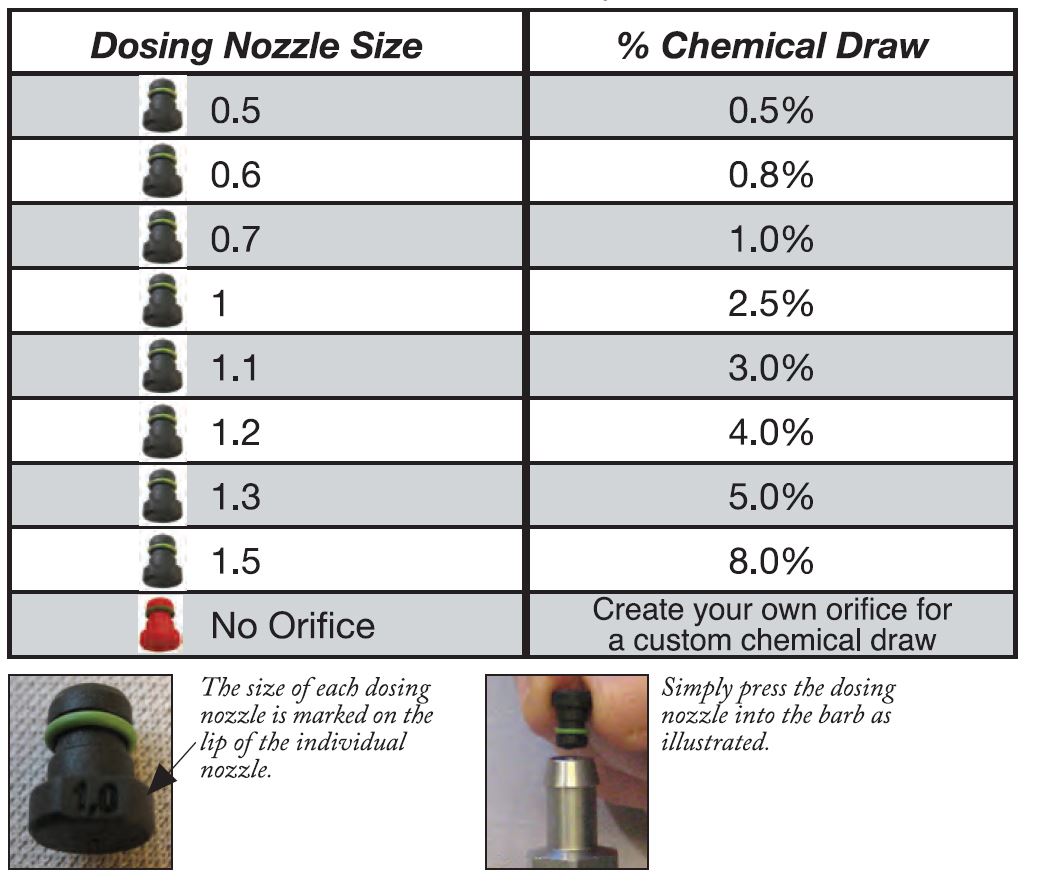

Nozzle Chart
