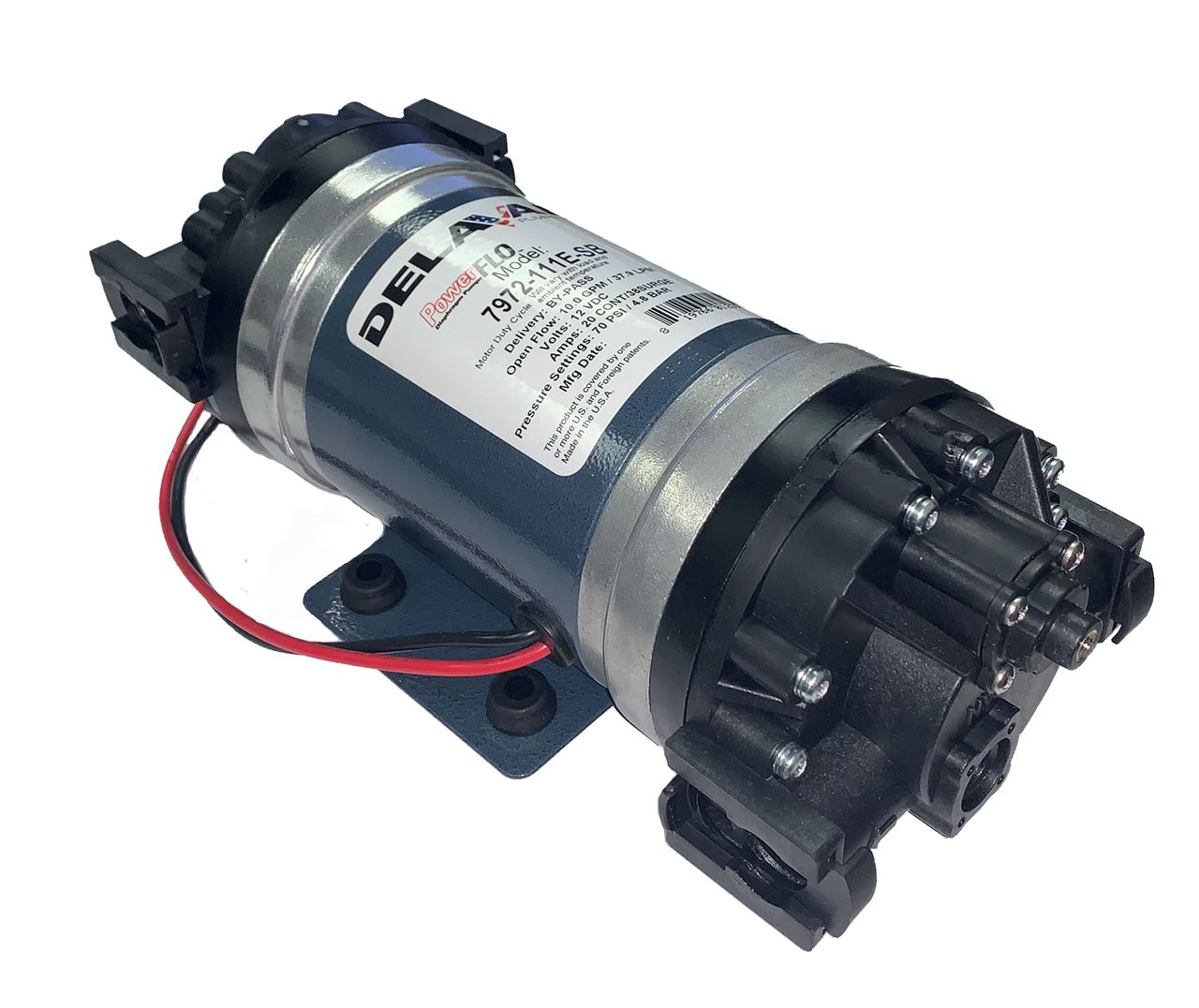

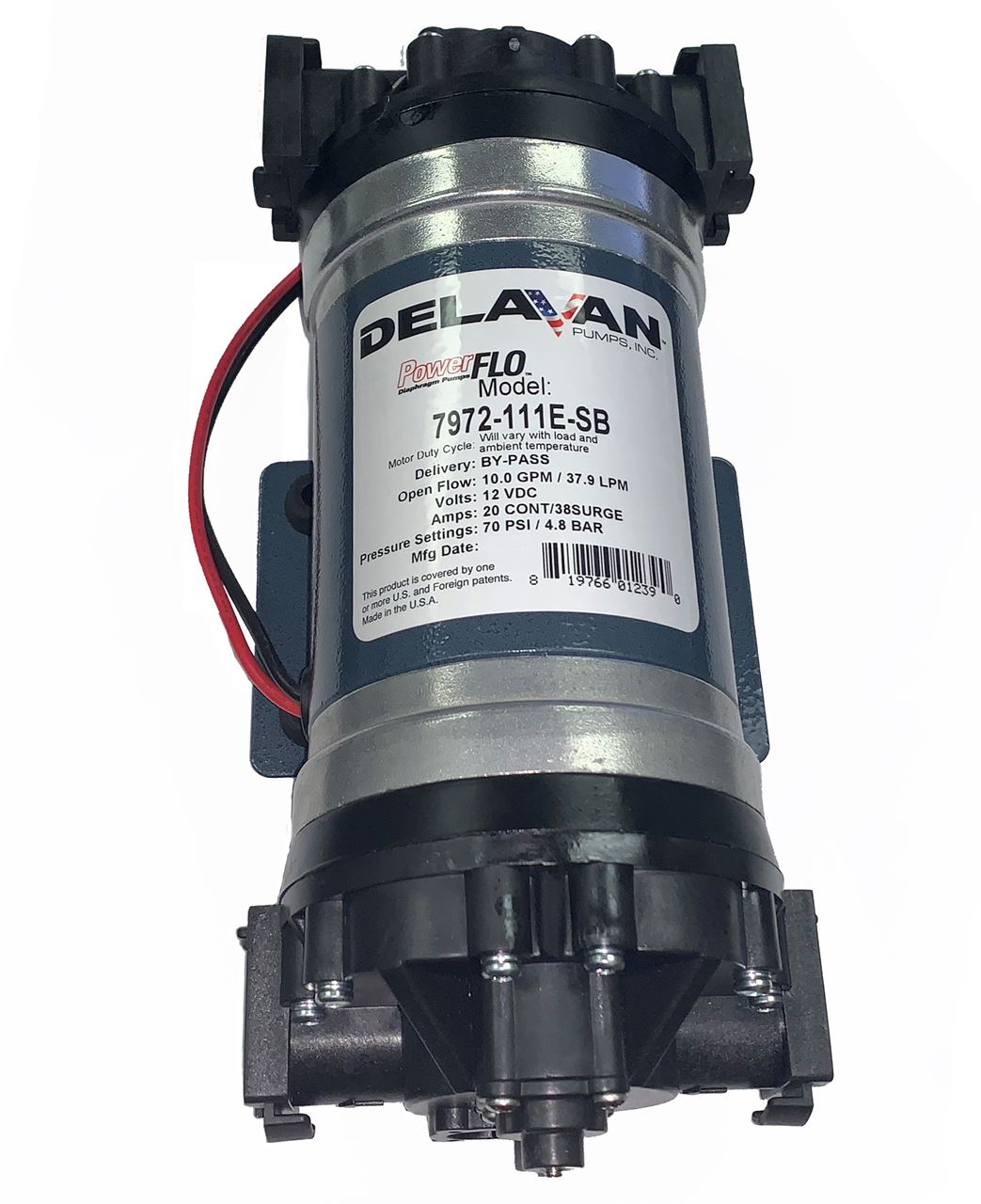

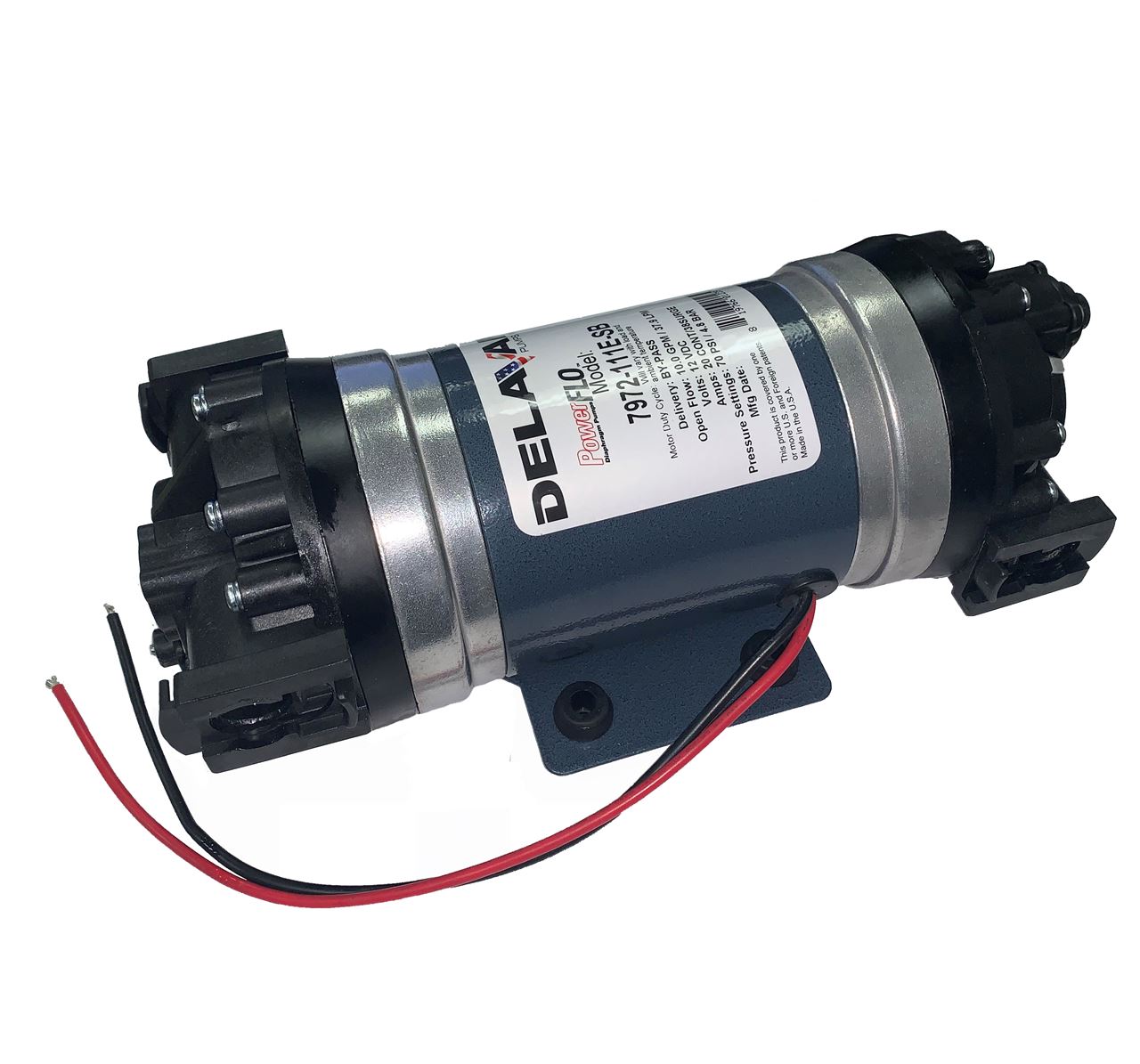

Picture of Delavan FB6 Double Pump 12V, 70 PSI,10 GPM, BYP 3/4" Quick Attach

Delavan FB6 Double Pump 12V, 70 PSI,10 GPM, BYP 3/4" Quick Attach

SKU: 7972-111E-SB

Brand: Delavan Fluid Power

$278.44

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan 7972-111E-SB PowerFLO™ Double Pump FB6 Series 10.0 GPM 70 PSI Diaphragm Pump with 3/4” Quick Attach Ports. Bypass Design – Continuous operation.


Features:
• The all new FB6 Double Pump is Delavan Fluid Power’s newest and strongest HIGH VOLUME diaphragm pump on the market
• Double Sided Design Engineered for Extreme Flow and up to 3x Longer Life
• High Torque Motor for Industry Leading Flow at Pressure
• Heavy Duty Reinforced Diaphragm Extends Pump Life in Demanding Applications
• Self-priming
• Life tested at 40 psi to over 1,500 hours
• Multiple intake/ output options for custom solutions - Can intake fluids from 1 or 2 separate sources, Output can be separate or combined
• Can be run dry for priming, but cannot operate 1 side onIy for extended periods
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Volts: 12 VDC
• Amps: 20 Cont / 38 Surge
• Type: Permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 6” long
• Recommended Wire is 12 AWG
• Recommended Fuse size is 40 Amp


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene/Stainless Steel
• Fasteners: Stainless Steel


Pump:
• Bypass Design – Continuous operation with internal bypass
• Type: 5-chamber positive displacement
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Open Flow: 10.0 GPM
• Pressure Setting: 70 PSI
• Inlet/Outlet Ports: 3/4” Quick Attach
Heat sink recommended (Part # 50-126)
• Packaging: Small box
• Weight: 12.5 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
