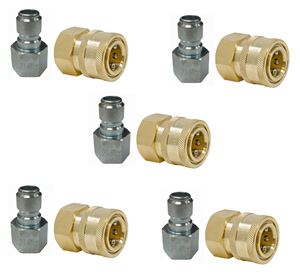

10 Pack General Pump 3/8" 4,000 PSI Quick Disconnect Coupler Fittings (5 Steel Plugs & 5 Brass Sockets)
Features: • Quick disconnect design• Body Material: Brass and steel
Package Contents: • 5 pc: General Pump 3/8” NPT-F Brass quick coupler socket • 5 pc: General Pump 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
Specifications: • Max Temp: 175°• Max Operating Pressure: 4,000 PSI • Works with standard quick connects• Weight: 1.55 lb
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.3 mm (5.0 to 8.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
General Pump 0° (Red) #3.0 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 0° (Red)• Nozzle Size: 3.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Spraying Systems 1/4" WashJet® 25º MEG Spray Nozzle
Features• High impact flat fan spray pattern with uniform distribution• Medium-sized drops• Quick visual reference for spray alignment with milled side flats• Longer wear life and flow control accuracy with especially hardened stainless steel construction
Specifications• Nozzle Size: 30.0• Spray Angle: 25º• Max Pressure: 3,000 PSI • Inlet: 1/4" Male NPT• Weight: 0.75 Oz
General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2MSS• Weight: 0.11 lb
