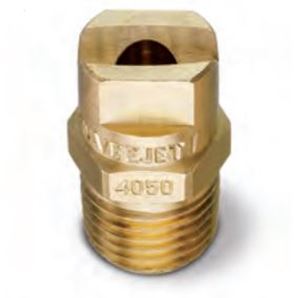

Spraying Systems 65º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray
Features• Flat fan type, tapered edge spray pattern• Consistent performance over the industry's largest range of flow rates and pressures• One-piece design• Uniform spray distribution with flow rates from .012 to 1237 gpm• Operating pressures up to 500 psi
TECHNICAL DATA SHEET
Specifications• Spray Angle: 65º • Capacity Size: 50• Operating Pressure: Up to 500 PSI• Material: Brass• Inlet Connection: 1/4" Male thread• Length: 1.0”• Hex: 9/16”• Net Weight: 0.8 Oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• High Quality, German engineered components• Ergonomic design• Unitized valve for easy repair• LFT "Low Friction Trigger, reduces pulling force• Same inlet and outlet angles as the ST-1500 & ST-2000 Spray Guns
Specifications • Max Pressure: 5,000 PSI• Max Flow: 10 GPM• Max Temp: 302° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.25 lb
Features• Made in USA with high quality components• Stainless steel body and insert• Repairable
Specifications• Maximum Pressure: 5,000 PSI• Maximum Temperature: 200° F• Material: Stainless steel • Inlet: 1/4" FPT• Outlet: 1/4" MPT• Weight: 3.0 oz
Spraying Systems 1/4" WashJet® 15º MEG Spray Nozzle
Features• High impact flat fan spray pattern with uniform distribution• Medium-sized drops• Quick visual reference for spray alignment with milled side flats• Longer wear life and flow control accuracy with especially hardened stainless steel construction
Specifications• Nozzle Size: 50.0• Spray Angle: 15º• Max Pressure: 3,000 PSI • Inlet: 1/4" Male NPT• Weight: 0.75 Oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
