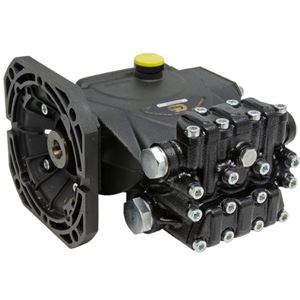

General ET1506E34 2,610 PSI 2.9 GPM (Left Handed) Direct Drive Pump flanged to direct couple on electric NEMA 56 C motors Features:• “HR” anti-corrosion surface treatment on manifold• New generation seal package• Dust protection chamber• Solid ceramic plungers• Oversized plunger guide• Optimized inlet and outlet valves• Oversized crankcase Hollow shaft, flanged for direct couple to electric motors (NEMA56C)
Specifications:• Max. Volume: 2.9 GPM• Max. Discharge Pressure: 2,610 PSI • Max. Horsepower Requirements: 5.2 EBHP• Max. Pump Speed: 3,400 RPM • Max. Fluid Temp.: 165º F• Oil Capacity: 8.5 oz • Inlet Port Thread: 1/2"-14 BSP-F• Discharge Port Thread: 3/8"-19 BSP-F• Shaft Diameter: 5/8” Hollow• Dimensions – Nominal: 7.3" x 7.4" x 5.5" • Weight: 11.0 lb
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• High Quality, German engineered components• Horizontal flow-through design• Forged brass housing for maximum strength• Unitized valve for easy repair• Stainless steel spring, needle, ball, and seat for chemical resistance• Special heat and chemical resistant seals for optimum performance even in the harshest of environments
Specifications • Max Pressure: 4,000 PSI• Max Flow: 12.0 GPM• Max Temp: 320° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.16 lb
