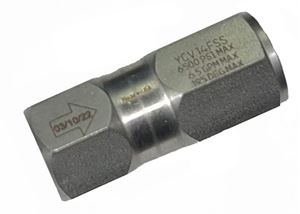

Picture of GP YCV Check Valve, Stainless Steel 1/4 FPT x 1/4 FPT 6,500 PSI

GP YCV Check Valve, Stainless Steel 1/4 FPT x 1/4 FPT 6,500 PSI

SKU: YCV14FSS

Brand: General Pump

$26.60

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump YCV14FSS Stainless Steel Check Valve 1/4 FPT x 1/4 FPT 6,500 PSI


Features
• Light Cracking Pressure
• Stainless Body with Stainless Wetted Parts
• O-ring on Poppet for a Leak Proof Seal
• Solid Body Construction, Won’t Come Apart During Installation

GP YCVSS Specifications Sheet


Specifications
• Body Material: Stainless Steel
• Max Volume: 6.5 GPM
• Rated Pressure: 5,800 PSI
• Maximum Pressure: 6,500 PSI
• Maximum Temperature: 195° F
• Port Sizes: 1/4" NPT-F
• Cracking Pressure: 5.8 PSI
• Length: 1.85”
• Weight: 1.9 oz
