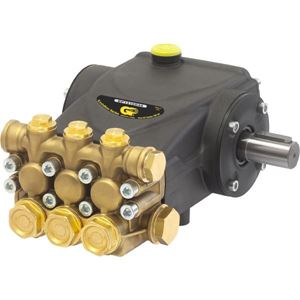

General EP1812S17 Triplex EP Series 1,750 RPM Solid Shaft Plunger Pump.

Features:
• Triplex plunger pump
• New Forged brass manifold
• New plunger guide bushing (patent pending)
• Solid ceramic plungers with dual guide system
• New dual diameter plunger guide
• New optimized outlet valves
• New dual lip oil seal

Specifications Sheet

Specifications:
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 2,500 PSI
• Horsepower: 6.6 HP
• Max. Pump Speed: 1,750 RPM
• Oil Capacity: 15 oz
• Max. Fluid Temp.: 165 degrees F.
• Inlet Port Thread: 1/2”-14 BSP-F
• Discharge Port Thread: 3/8”-19 BSP-F
• Shaft Diameter: .945 in./24 mm
• Dimensions – Nominal: 9.5” x 8.38” x 5.1”
• Weight: 15.4 lb.
