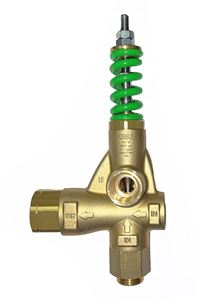

General Pump ZH288 Trapped Unloader (Blue/Green) 4,060 PSI 21.1 GPM 1/2” NPT-F
Features• Suitable for Industrial use• Dual bypass port• Extremely reliable• Easy maintenance
Specifications Sheet
Specifications• Max Volume: 21.1 GPM• Maximum Operating Pressure: 4,060 PSI• Maximum Temperature: 185° F• Inlet: (2) 1/2" NPT-F• Outlet: 1/2" NPT-F• Bypass: 1/2" NPT-F• Spring Color: Blue/Green• Note: Spring color changed to green late 2022 • Dimensions: 9.15” x 3.69” x 1.81”• Weight: 2.87 Lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
General Pump D10093 Quick Disconnect Coupler Plug Stainless Steel 1/2” x 1/2" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/2"• Thread: 1/2” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP3MSS• Weight: 0.15 lb
Accutek® S1022-D Steel Male Hex Nipple 1/2 Male Pipe x 1/2 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.15 lbs
