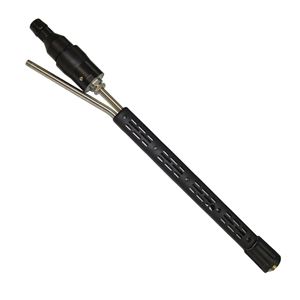

Suttner ST-176 Stainless Steel 27.5” Foam Blaster Lance 3,625 PSI with 1/4" F Inlet. Switch from foam to rinse by turning the valve that’s conveniently within hands reach
Features• The ST-176 Foam Blaster lance is the ideal accessory for Suttner's foam injector line. The innovative change-over technology allows to direct the full flow into either one or the other outlet pipe just by turning the hand wheel at the inlet• In one position of the hand wheel the flow is directed thru an ST-76 foam blaster head for foaming. After changing over the full flow is directed thru the other pipe• Injector nozzles sold separately• Wash or rinse nozzle sold separately
Specifications • Flow Rate: 1.0 – 6.0 GPM • Max Pressure: 3,625 PSI • Overall Length: ”• Max Temp: 212° F.• Inlet: 1/4" Female NPT• Outlet (Foam): ST-76 Foam Blaster head (3 Air Injector Nozzles not included)• Outlet (Rinse): 1/4" Male (Nozzle not included)• Note: Suttner (ST-160, ST-160M or St-164 Chemical or Foam injector), air injector nozzles and rinse/wash nozzle required and are not included• Weight: 3.45 lb
Please use Nozzle Chart to determine proper spray nozzle size
Nozzle Chart
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Air Injector Nozzle to use
Foam Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-510 Poly Chemical Spray Gun 18.5 GPM, 365 PSI, 1/2" FPT
Features• High Quality, German engineered components• Reinforced polypropylene will withstand the harshest chemicals• Gun with stainless steel V4A / AISI 316 ball being resistant to chemicals• Ideal gun for use in soft wash applications
Specifications • Max Pressure: 365 PSI• Max Flow: 18.5 GPM• Inlet: 1/2" Female NPT• Outlet: 1/2" Female NPT• UDOR # 15.0003.13• Weight: 0.30 lb
Features• High Quality, German engineered components• Stainless steel material• Extends the life of your hose• Double PTFE slide rings for easy movement• Bearing material: PTFE• Axial and radial slide bearing
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12 GPM• Max Temp: 300° F.• Inlet: 3/8" Male NPT• Outlet: 3/8" Female NPT• RPM: 30• Weight: 0.29 lb
Features• High Quality, German engineered components• The Relax-Action™, German Engineered Technology reduces trigger pulling force by 40% and holding force up to 90% compared to usual competitors spray gun• Relax-Action™ is designed for operators and applications with longer periods of cleaning time• Stainless Steel Housing• Ceramic ball together with a seal kit made out of stainless steel• Food Grade
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.25 lb
