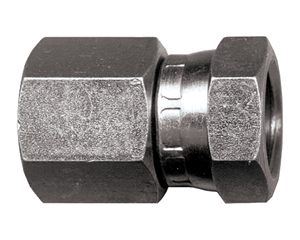

Accutek® S1103-KK Steel 1-1/2 FPT x 1-1/2 Female NPSM Connector. Fairview's Female Pipe Connector Steel Mechanical Pipe (NPSM) Swivels Allow Pipe Connections to be Properly Oriented Before Tightening.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 1,500 PSI• Burst Pressure: 6,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 1.06 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview GAS-FLO™ 1-1/2” ID x 300” AOL Type 1 Rubber Propane Hose Assembly with 1-1/2” MPT x 1-1/2” MPT Fittings. Fairview's Type 1 Rubber F.SAE Assemblies are CSA Certified to 350 PSI WP -40°F To 180°F
Applications:• Used To Conduct Natural Gas In A Gaseous State And Propane In Either A Liquid Or Gaseous State Up To 350 P.S.I • UL/CSA Approved Type 1 Propane/Nat Gas Assy (Type 1 Assy)
Specifications:• Hose ID: 1-1/2”• Assembly Overall Length: 300” (Tolerance ±1% of length measured to the nearest 1/8 of an inch)• Temperature: -40°F to +180°F• Color: Black• Max Pressure: 350 PSI• End: 1-1/2” Steel MPT• End: 1-1/2” Steel MPT • TO BE INSTALLED BY LICENSED GAS FITTERS ONLY• Weight: 36.3 lbs
