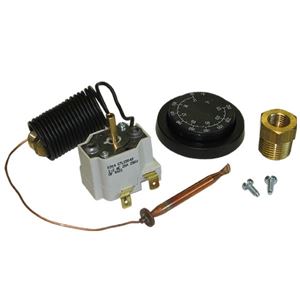

General Pump 100995 Capillary Style 70° - 250° Adjustable Thermostat 6,000 PSI. Probe Style Thermostats, Insulated SS Capilary Copper Immersion Bulb (UL/CSA Approved), 25 Amp, 250V Electric Rating
Features:• Available either for temperature regulation or over-temperature protection• Precise temperature control with fast reaction time• 6,000 PSI• Trip free manual reset
Specifications Sheet
Specifications:• Temp Range: 70°- 250º F• Max. Pressure: 6,000 PSI • Electrical Rating AC: 25A - 250V (UL)• Material: Bulb and Capillary in Copper• Capillary Length: 71”• Connections: Brass fastons• Weight: 0.50 Lb
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 100723 6,000 PSI Safety Relief Valve 3/8” MPT-N with 1/4” Hose Barb. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system
Features:• High pressure safety valve: 2,500 – 6,000 PSI relief pressure • One model fits all pressures - no springs to change• Less “whistling” and chatter than competing brands• Highly accurate over full range of pressures• Fits any brand of pump• Designed and made in the USA
Specifications:• Adjustable Range: 2,500 - 6,000 PSI• Max Volume: 6 GPM • Discharge: Side• Hose Barb: 1/4” • Max Temperature: 32 - 150° F • Inlet: 3/8" NPT-M• Body Dimensions: 2.6” x .875” Hex• Weight: 0.325 lbs
Suttner ST-5 Vertical Mount Flow Switch. Vertical mounting position and free floating brass magnet configuration
Features:• Vertical mounting ONLY• Reed switch encased in protective vacuum sealed glass tube eliminating exposure to corrosive cleaning chemicals• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close• Easy reed switch replacement• Most proven and reliable flow switches in the industry
Specifications:• Max. Pressure: 4,380 PS• Min. Pressure: 75 PSI• Max. Flow Rate: 8 GPM• Min. Flow Rate: 1 GPM• Contact: 1 A - 250 V• Max: Fluid Temperature: 176° F • Cable Length: 47.0” • Inlet & Outlet: 3/8” FNPT• Housing: Brass• Color: Black• Replaces 200005500• Weight: 0.98 lbs
