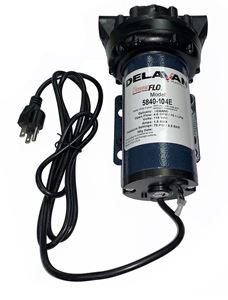

Delavan PowerFLO™ 5840 Series 4.0 GPM 60 PSI 115VAC Demand Switch – Operates only when liquid flow is required

Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

Motor:
• Type: 115 VAC permanent magnet, totally enclosed, non-ventilated
• Leads: 6' with plug
• Amps:  1.5 Max
• Duty Cycle: See Heat Rise graph

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act

Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 4.0 GPM
• Max Pressure: 60 PSI
• Pressure Settings: 70 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Weight: 7.0 lbs
