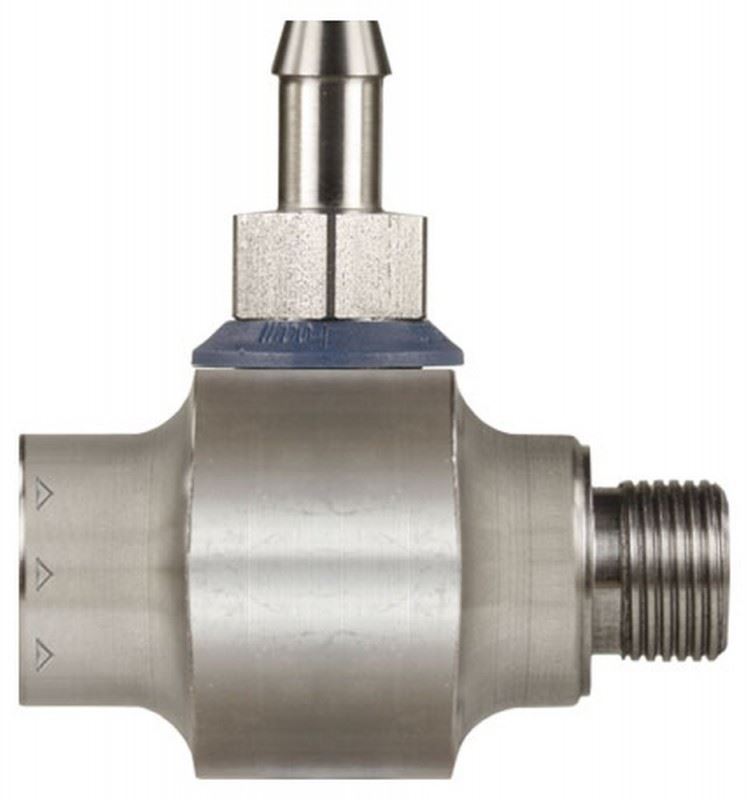

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #14, 5000 PSI, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 14• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size

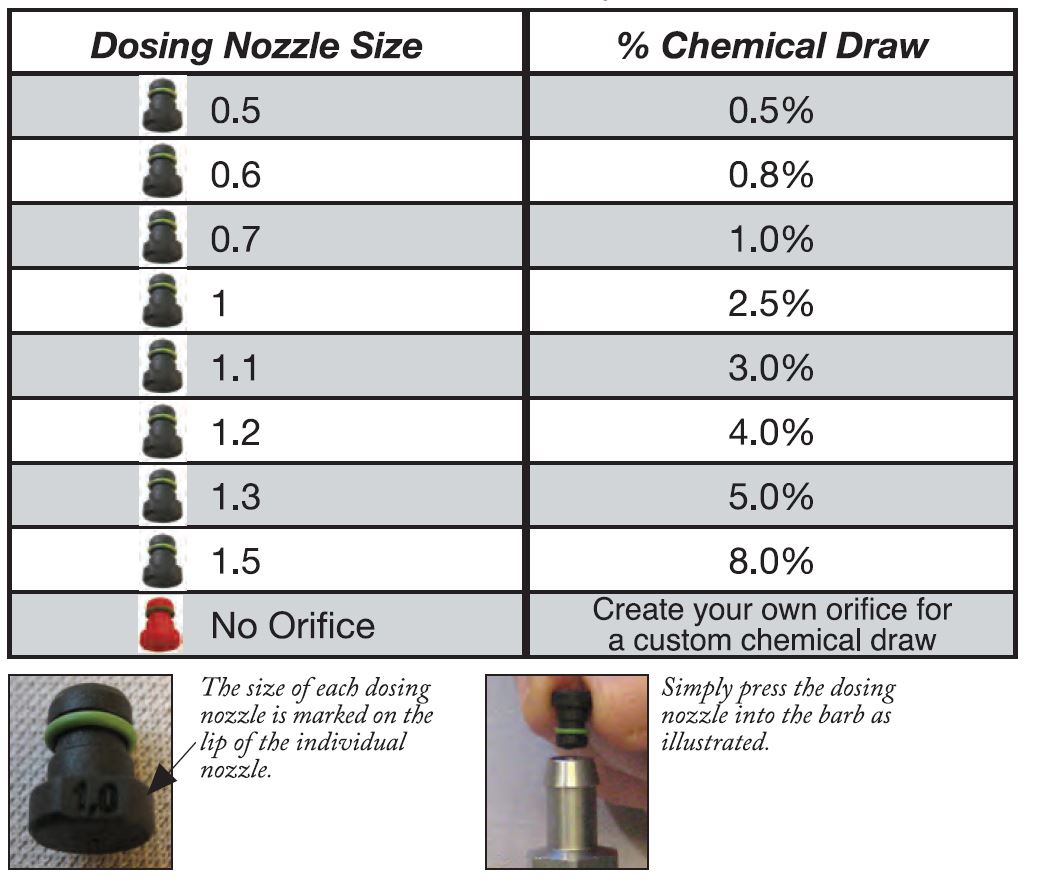

Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
