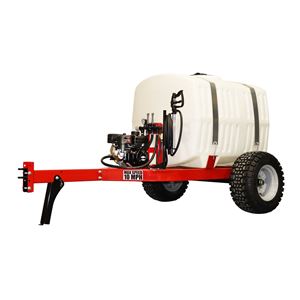

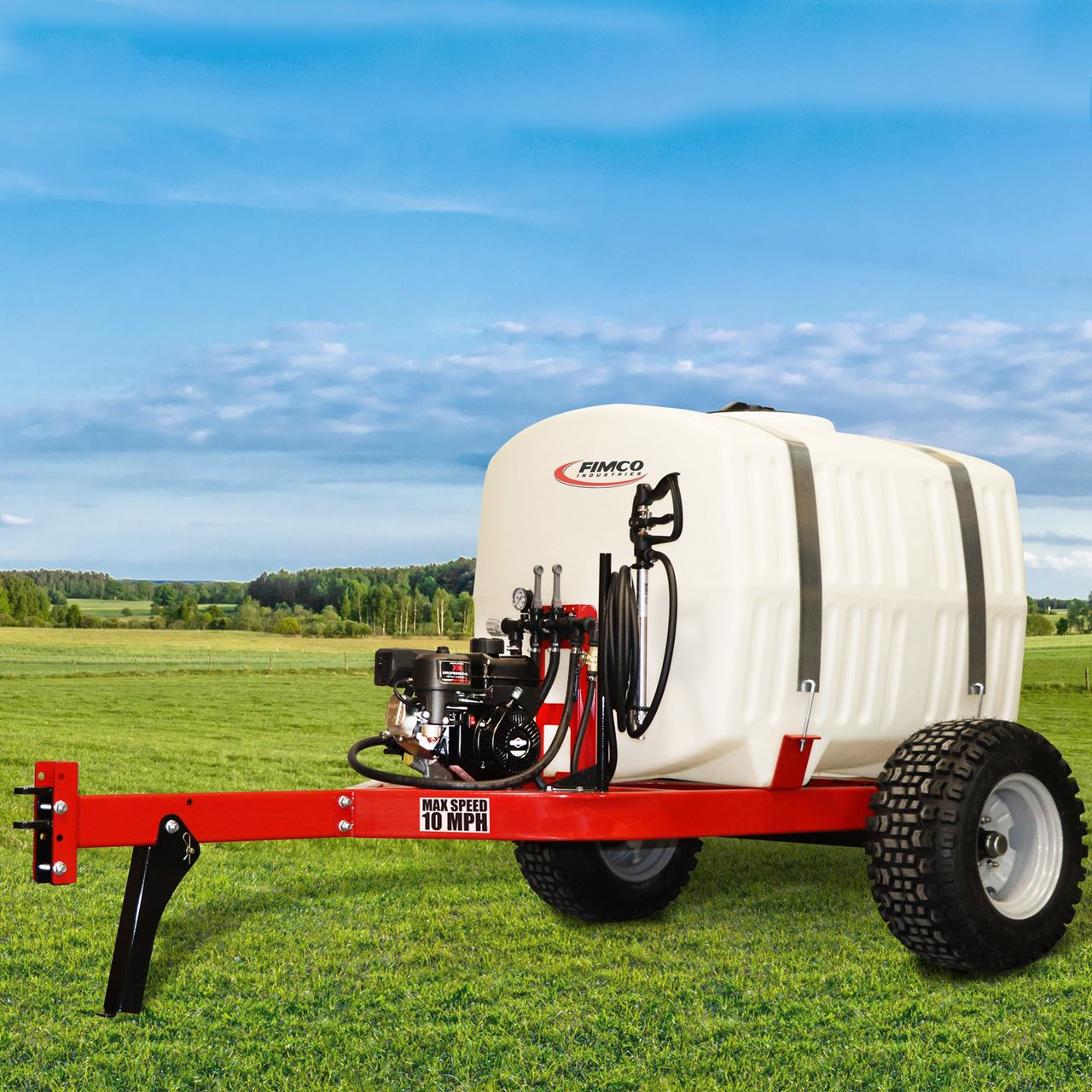

The FIMCO ATVTS-200-4R-BL 200 Gallon Trailer Sprayer with 4 Roller Pump, Spray Wand and Broadcast Nozzles is designed for the home and land owner to deliver large capacity liquid application in a truly universal platform. The UV resistant, molded polymer tank has a 16 inch lid for easy access and is completely drainable. Built in step allows easy filling of the 200 gallon tank. This model pasture sprayer features a 127cc Briggs & Stratton 3.5 HP Gas Engine with a Hypro 4 Roller Pump with a 7 GPM max flow. The FIMCO Pro Series 22" Spray Wand features an adjustable nozzle that distributes up to 45 feet of horizontal spray, 33 feet of vertical spray with 25 feet of 3/8 inch hose. This Trailer Sprayer is built on a welded powder coated steel frame with 23” x 10.5” 4 ply tires to easily pull over rough terrain, long grass and weeds, brush or other obstacles. Designed to be pulled behind an ATV, UTV or tractor the lightweight frame and poly tank allow easy hook up and go with a heavy duty clevis hitch. The high performance tow-behind trailer sprayer is a must have for precision spray technology. The best sprayer for controlling overgrown grass and weeds in pastures, ditches and fence lines this trailer sprayer can cover up to 12.5 acres on a tank fill.

Features:
• 22” High Pressure Spray wand delivers 45 feet of horizontal spray and 33 feet of vertical spray
• 23” x 1050-12, 4-Ply Tires, 10 MPH Maximum Speed
•25 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
• Cast iron 4 roller pump provides up to 7.2 GPM
• Durable powder coated steel frame

Specifications:
• Manufacturers Warranty: 1 yr Consumer / 90 day Commercial
• Tank Size (Gal) 200
• Flow (GPM): 7
• Pressure (PSI): 150
• Spray Wand Type: Heavy Duty Pistol Grip Spray Wand
• Spray Pattern: Adjustable Pattern Tip
• Pump Type: Hypro 4 Roller Pump
• Spray Height (ft.): 33
• Horizontal Spray Distance (ft.): 45
• Power Supply: Gas
• Hose (in. x ft.): 3/8 x 25
• Boom Spray Coverage (ft.): 32
• Assembled L x W x H (in.): 85 x 62 x 55
• Pump Warranty: 2 yr Consumer / 90 day Commercial
• Item ships standard freight via truck due to size and weight
• Weight 550 lbs
