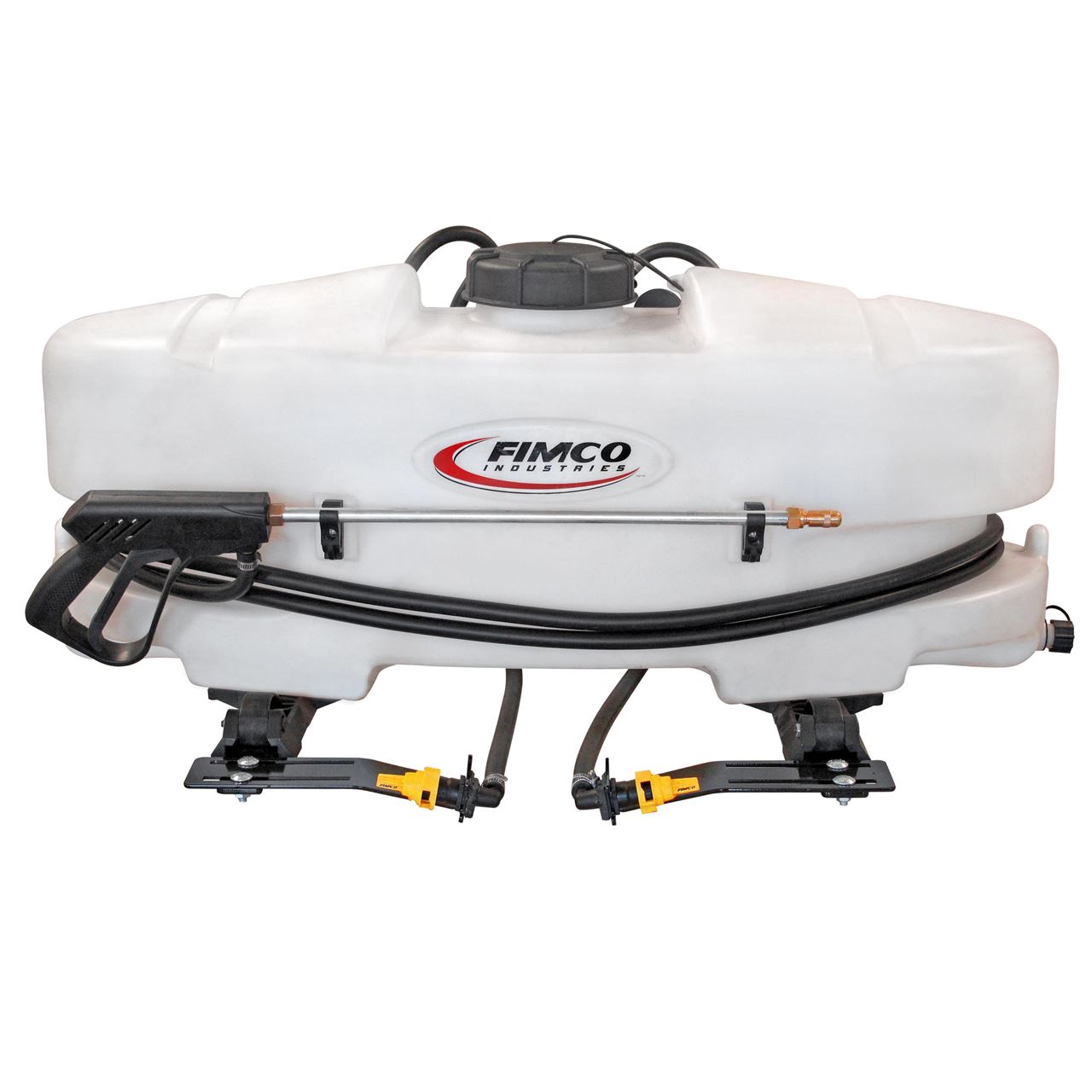

Picture of 25 Gallon ATV Sprayer 2 Nozzle Broadcast Boom (LG-25- BL-QR)

25 Gallon ATV Sprayer 2 Nozzle Broadcast Boom (LG-25- BL-QR)

SKU: 5302323

Brand: Fimco Industries

Estimated Delivery: 2 - 3 Weeks


Product Description

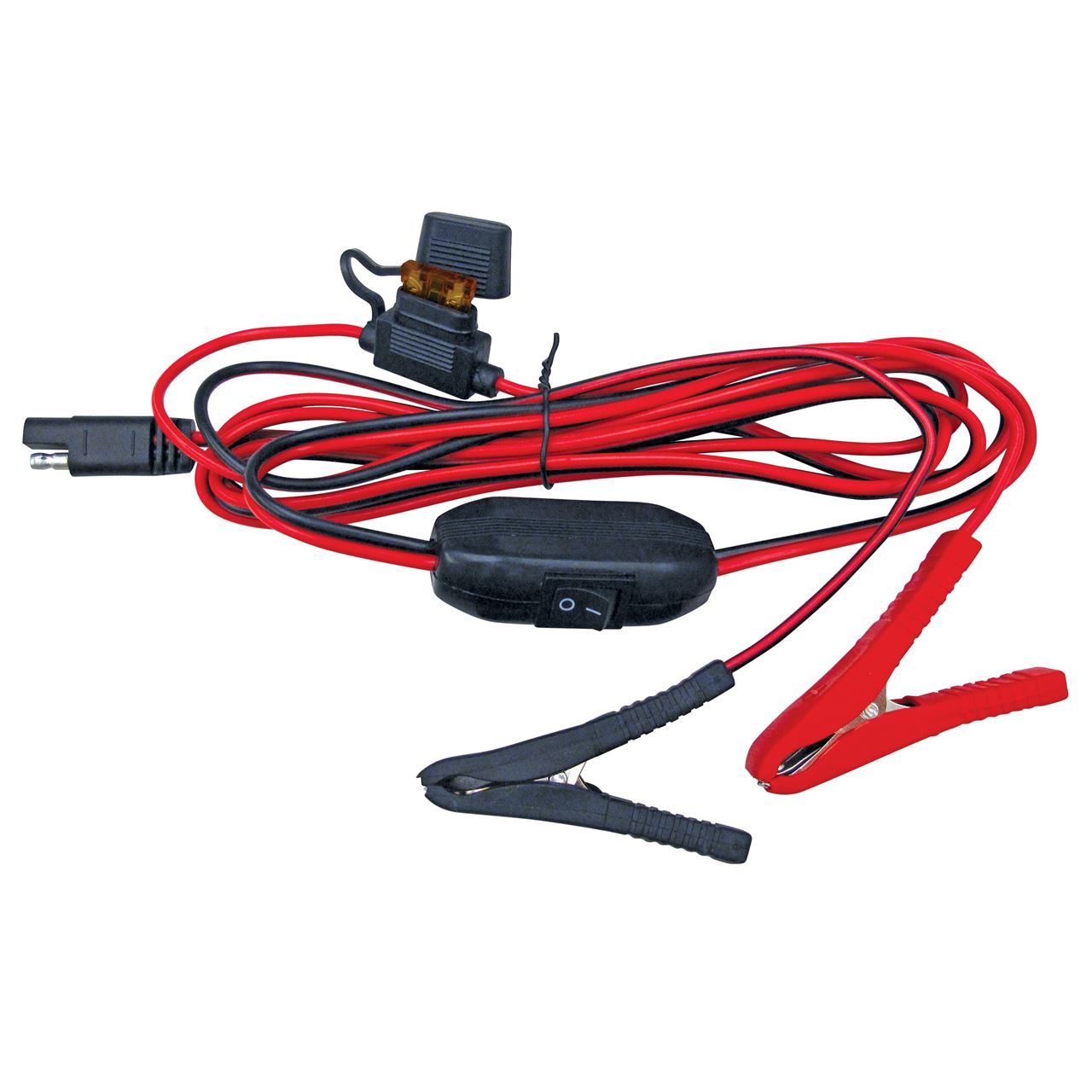

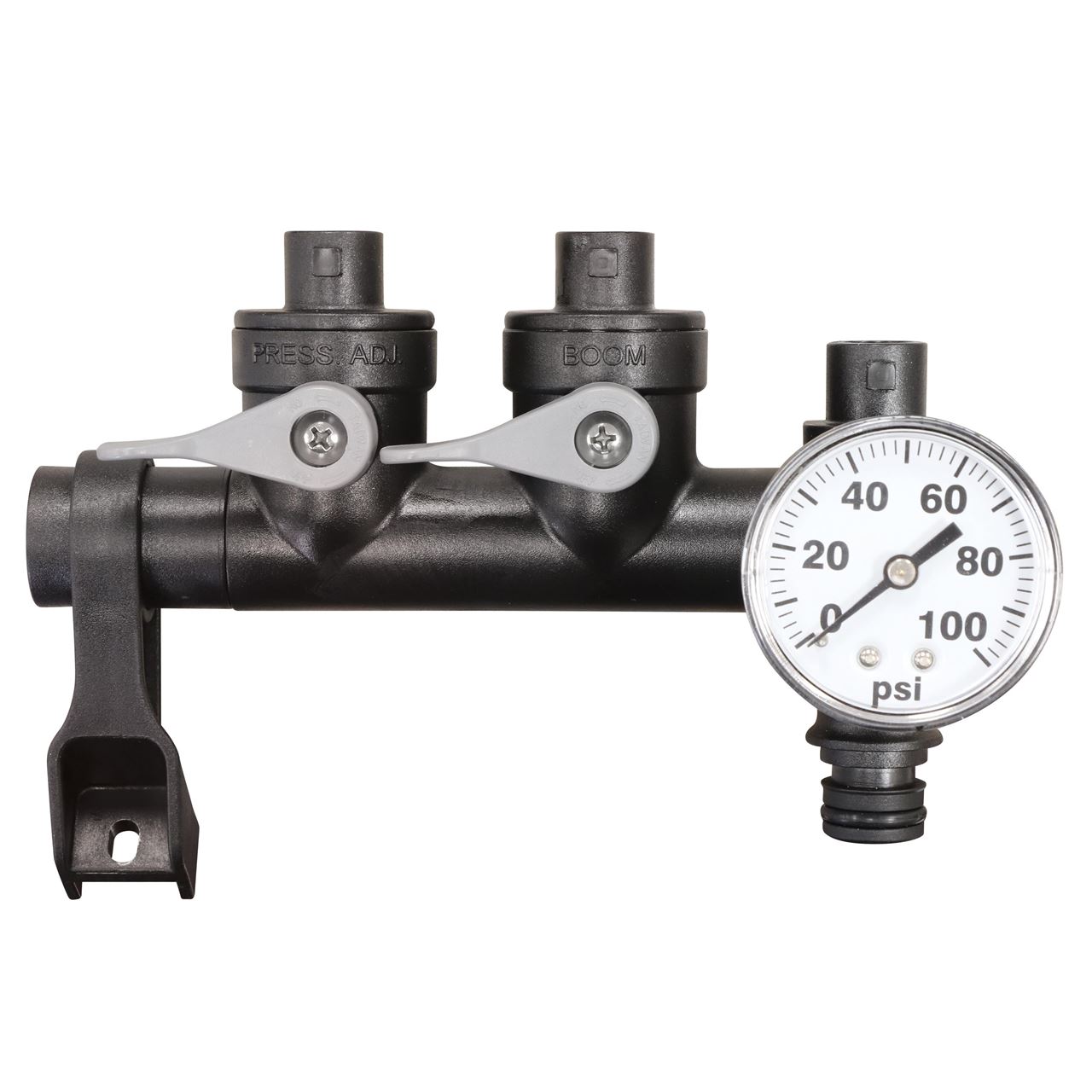

The FIMCO LG-25-BL-QR 25 Gallon 2 Nozzle Broadcast ATV Sprayer is built for large area liquid coverage in a compact platform. Best in class of entry level sprayers; the UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. Convert from a Spot Sprayer to an ATV Sprayer with the quick release mounting bracket allowing for simple installation or removal of the spray boom. This model 4 wheeler sprayer features the High Flo High Performance 4.5 GPM 12 Volt Pump with inline fuse protection. The Deluxe Spray Wand with an adjustable spray pattern brass tip distributes up to 40 feet of horizontal spray, 28 feet of vertical spray and comes with 15 feet of 3/8 inch hose. The 2 FIMCO exclusive long range fixed spray nozzles offer 28 feet of total spray coverage. Our FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This ATV sprayer offers the versatility and efficiency needed to spray tight spaces or larger areas and allows easy, accurate and consistent liquid application of lawn care products. The best ATV sprayer for controlling weeds, insects and diseases on lawns, ball fields, parks, acreages and small pastures

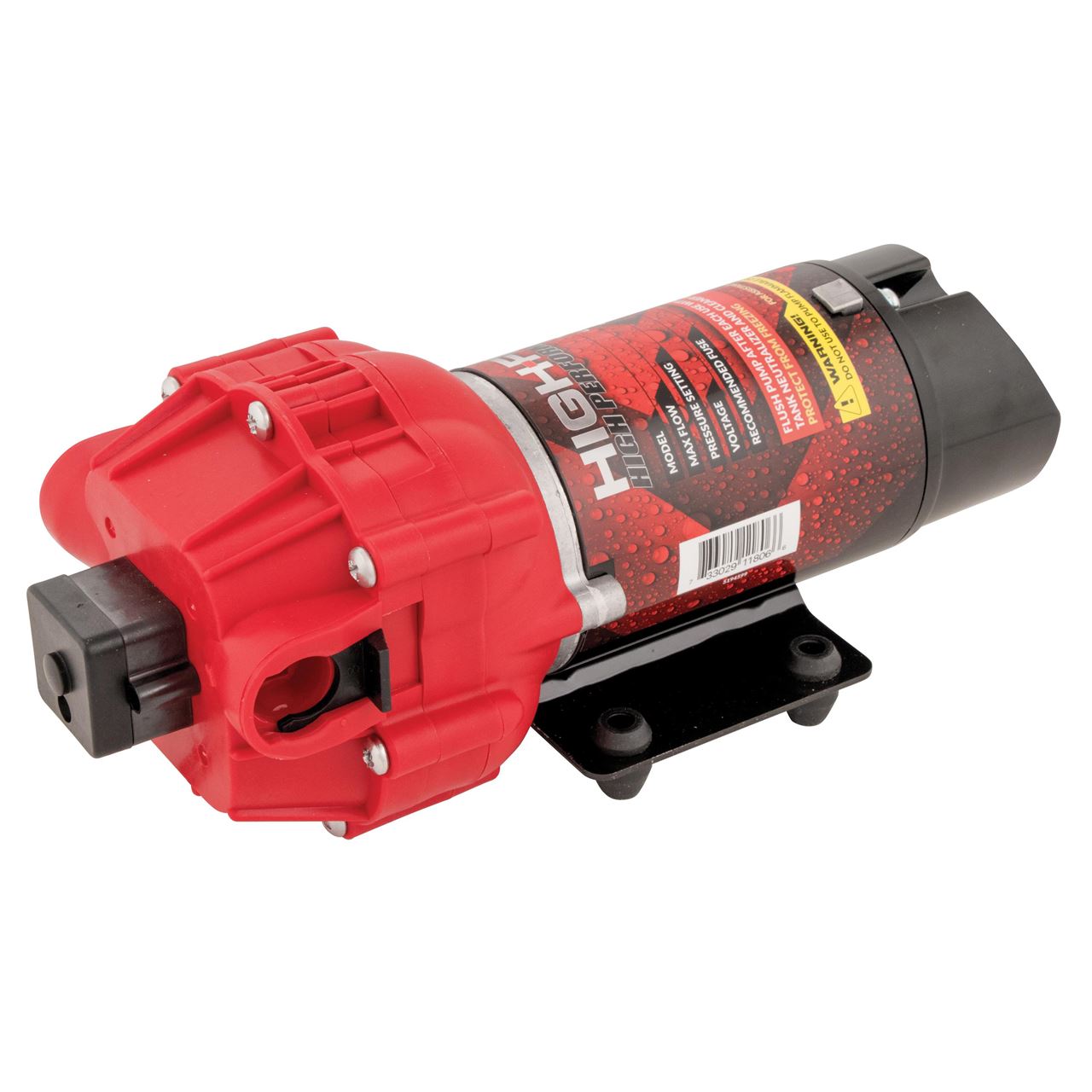

• 4.5 GPM High Flo High Performance Pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life

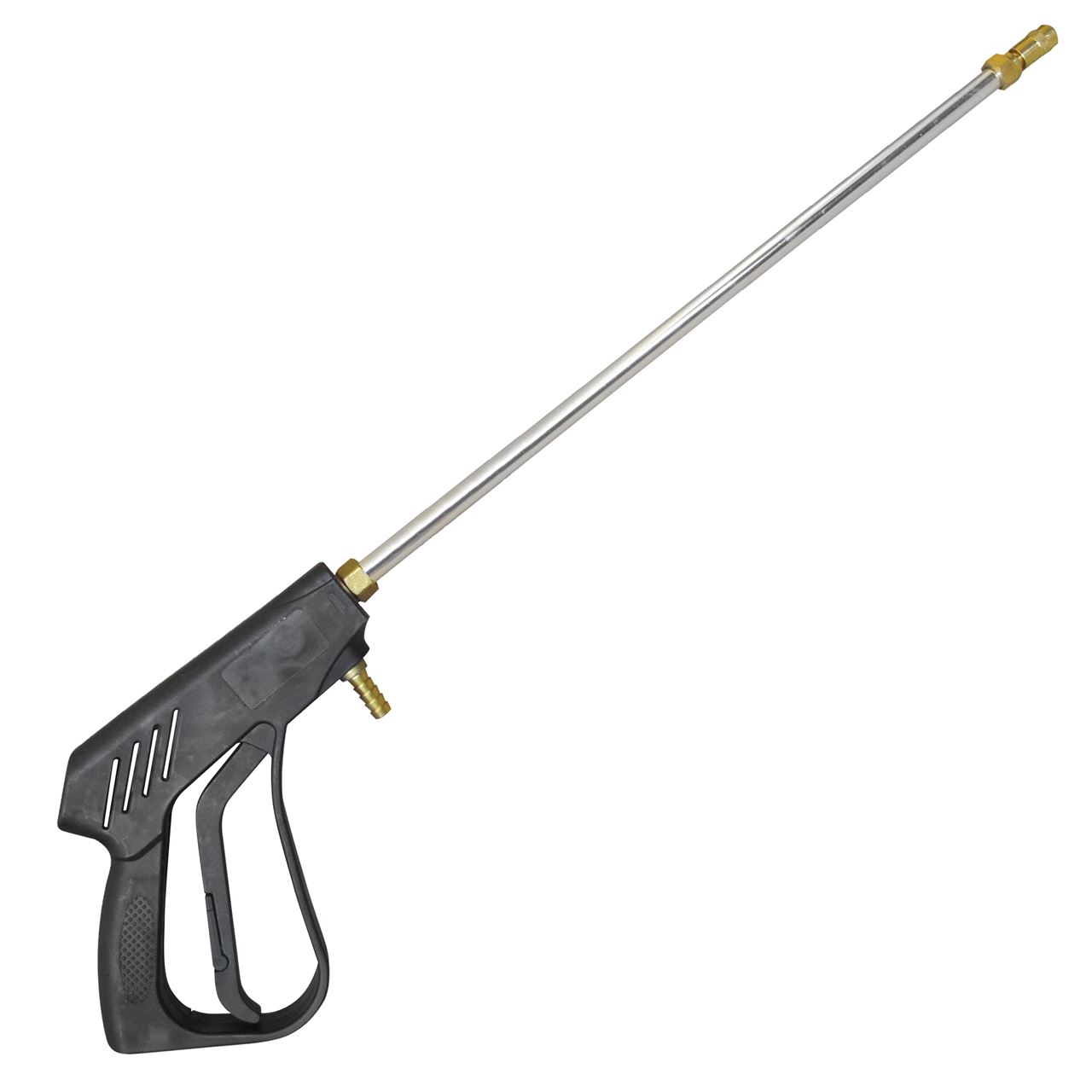

• Deluxe pistol grip spray wand delivers up to 40 feet of horizontal spray and 28 feet of vertical spray and features an ergonomic polymer handle and precision brass tip. 15 feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
• Durable 25 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
• Features FIMCOs exclusive quick release mounting system allowing you to quickly remove, change or store your spraying boom
• Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering

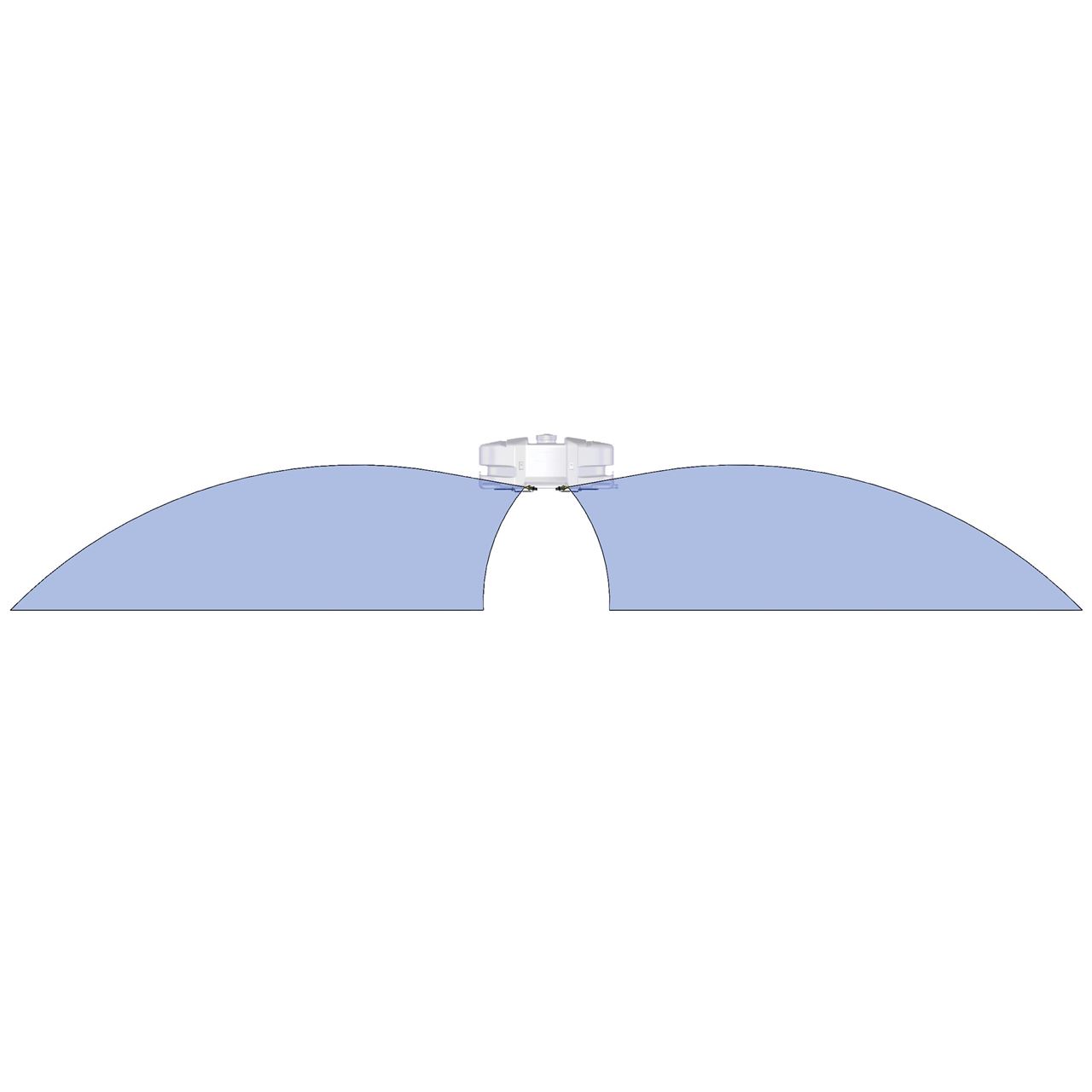

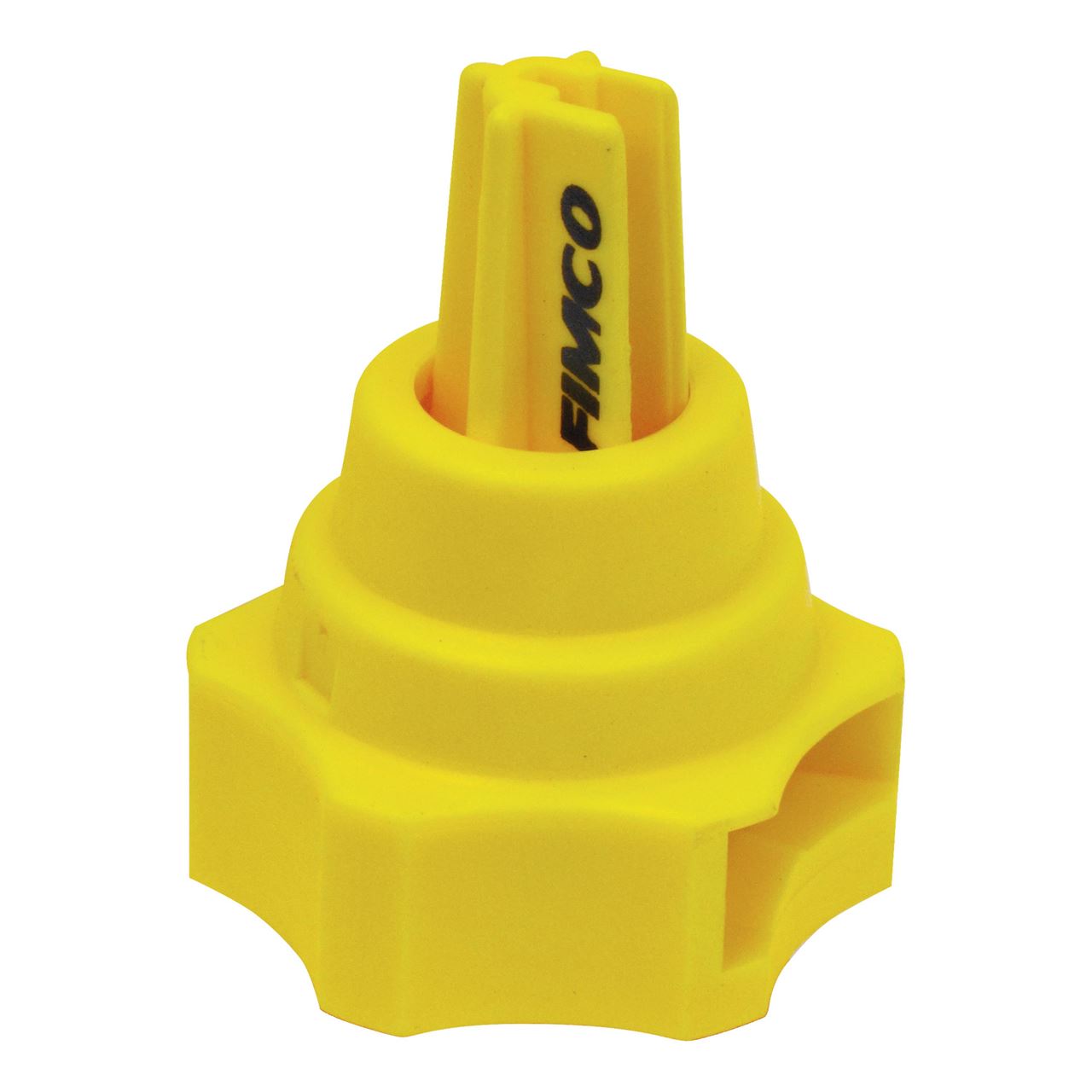

• Independent steel booms are fixed, and not adjustable. Featuring two FIMCO long distance nozzles, this boom is specifically designed to deliver 28 feet of broadcast liquid coverage

• Manufacturers Warranty: 1 yr Consumer / 90 day Commercial
• Tank Size (Gal) 25
• Flow (GPM): 4.5
• Pressure (PSI): 60
• Spray Wand Type: Deluxe Pistol Grip Spray Wand
• Spray Pattern: Adjustable Pattern Tip
• Pump Type: HIGH FLO
• Spray Height (ft.): 28
• Horizontal Spray Distance (ft.): 40
• Power Supply: 12V

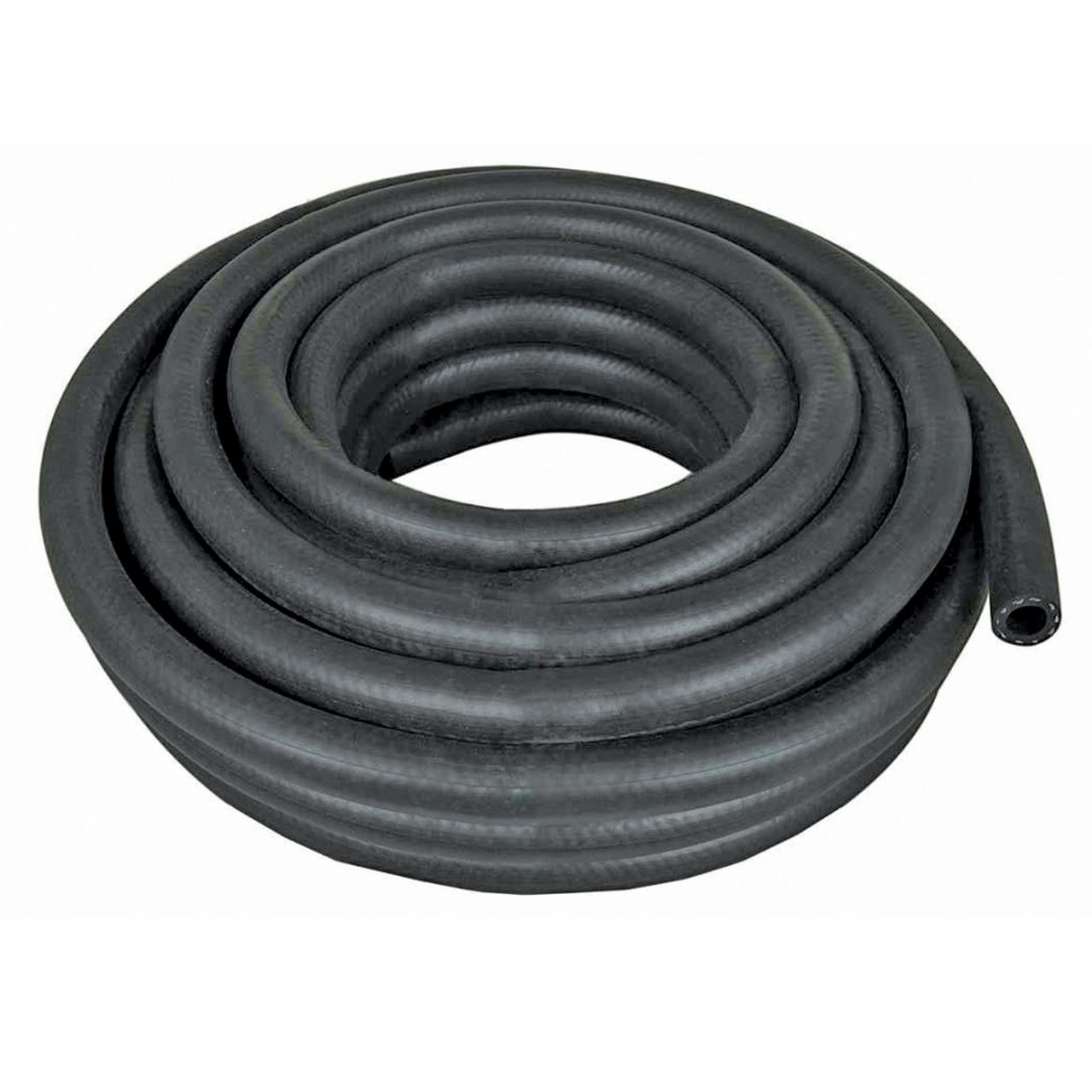

• Hose (in. x ft.): 3/8 x 15
• Boom Spray Coverage (ft.): 28
• Assembled L x W x H (in.): 39.25 x 17.5 x 15.5
• Pump Warranty: 2 yr Consumer / 90 day Commercial
Note: ATV & Straps are not included
• Weight 37 lbs
