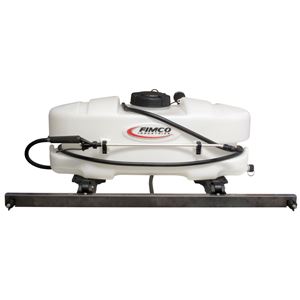

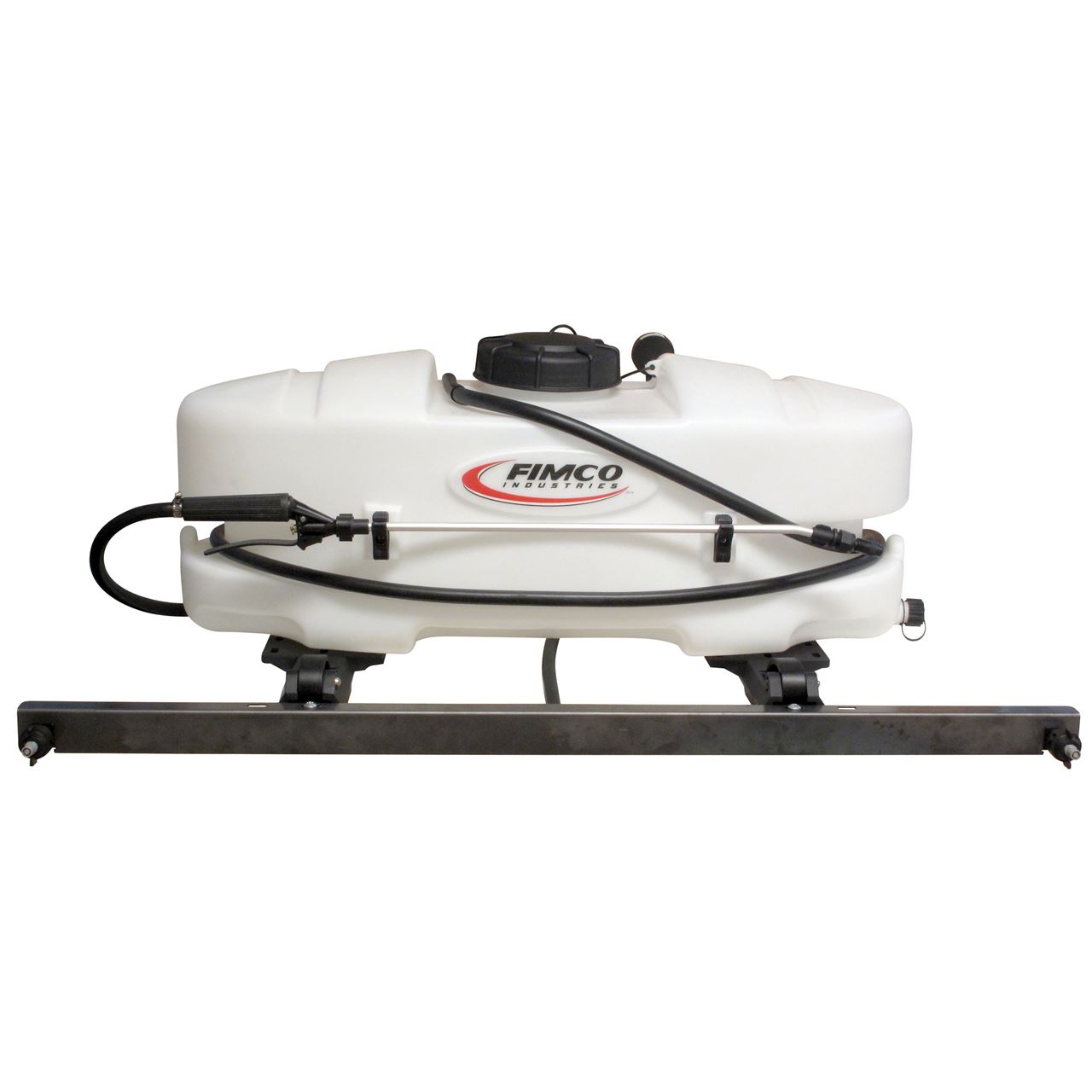

Picture of 20 Gallon ATV Sprayer 2.4 GPM 2 Nozzles (ATV-20-2-QR)

20 Gallon ATV Sprayer 2.4 GPM 2 Nozzles (ATV-20-2-QR)

SKU: 5302319

Brand: Fimco Industries

Estimated Delivery: 2 - 3 Weeks


Product Description

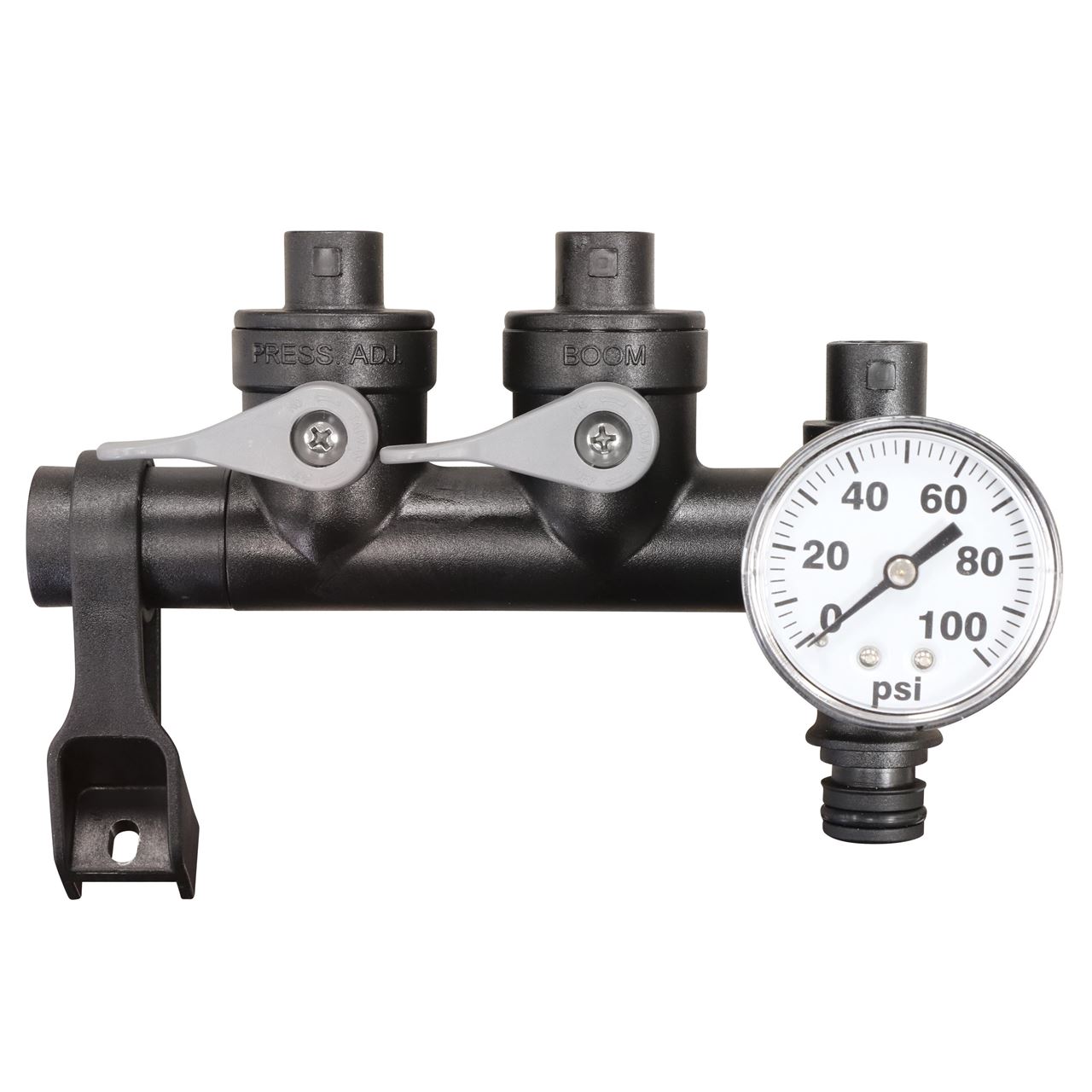

The FIMCO ATV-20-2-QR 20 Gallon ATV Sprayer is our basic 2 nozzle spraying boom offering the versatility and efficiency needed to spray tight spaces or larger areas. The UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. Convert from a Spot Sprayer to an ATV Sprayer with the quick release mounting bracket, allowing for simple installation or removal of the spray boom. This model 4 wheeler sprayer features the High Flo High Performance 2.4 GPM 12 Volt Pump with inline fuse protection. The Lever Spray Wand features an adjustable spray pattern poly tip which adjusts from a stream, fan or cone and distributes 30 up to feet of horizontal spray, 16 feet of vertical spray and comes with 15 feet of 3/8 inch hose. The 2 nozzle boom provides extra protection by shielding the TeeJet FllodJet nozzles for less wind drift with no drip check valves and offers 7 feet of total spray coverage. Our FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This ATV sprayer offers the versatility and efficiency needed to spray tight spaces or larger areas and allows easy, accurate and consistent liquid application of lawn care products. The best ATV sprayer for controlling weeds, insects and diseases on lawns, ball fields, parks, acreages and small pastures

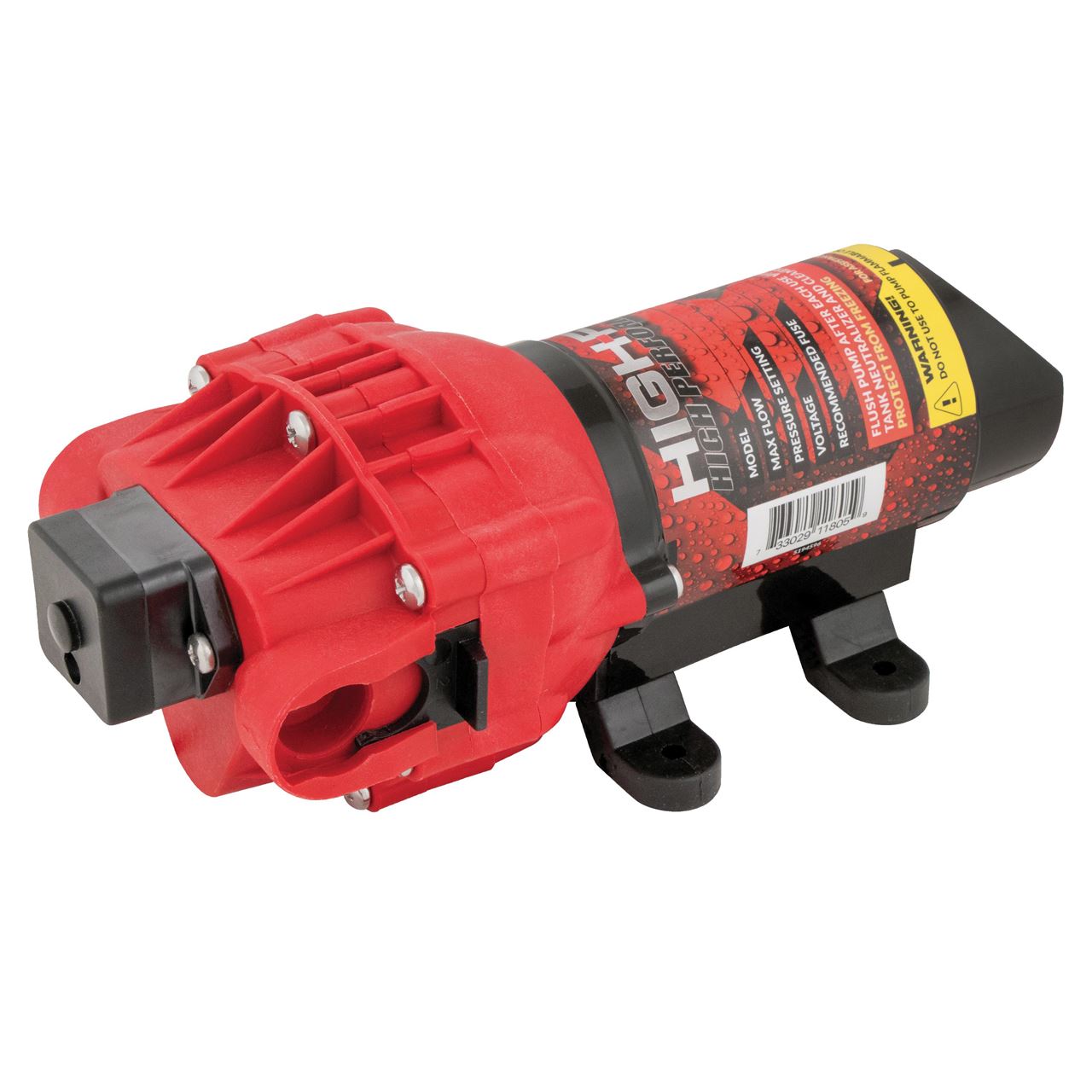

• 2.4 GPM High Flo High Performance Pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
• Durable 20 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
• Features FIMCOs exclusive quick release mounting system allowing you to quickly remove, change or store your spraying boom

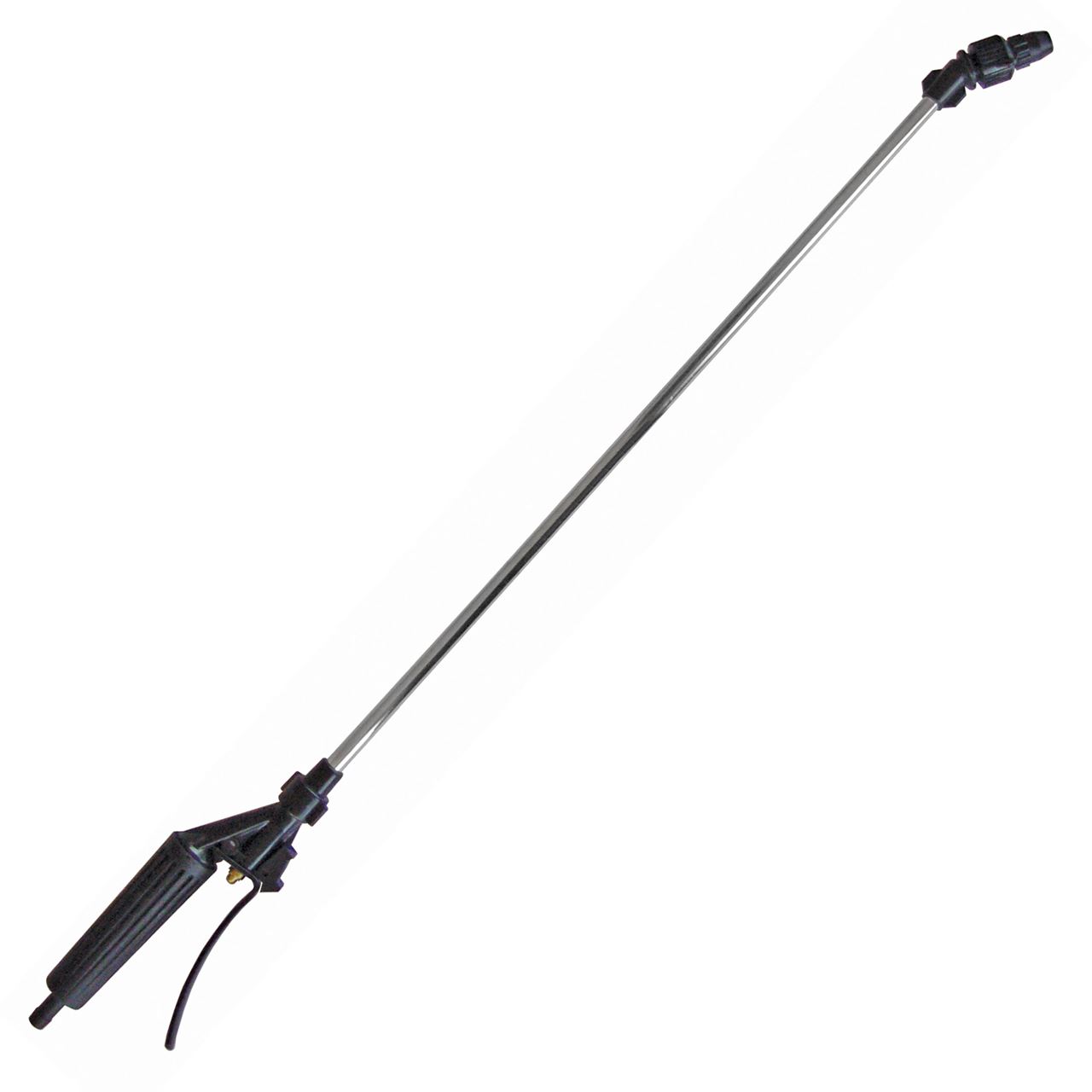

• Lever grip spray wand features an aluminum lance and a adjustable polymer nozzle that delivers 30 feet of horizontal spray and 16 feet of vertical spray. Plus 15 feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles

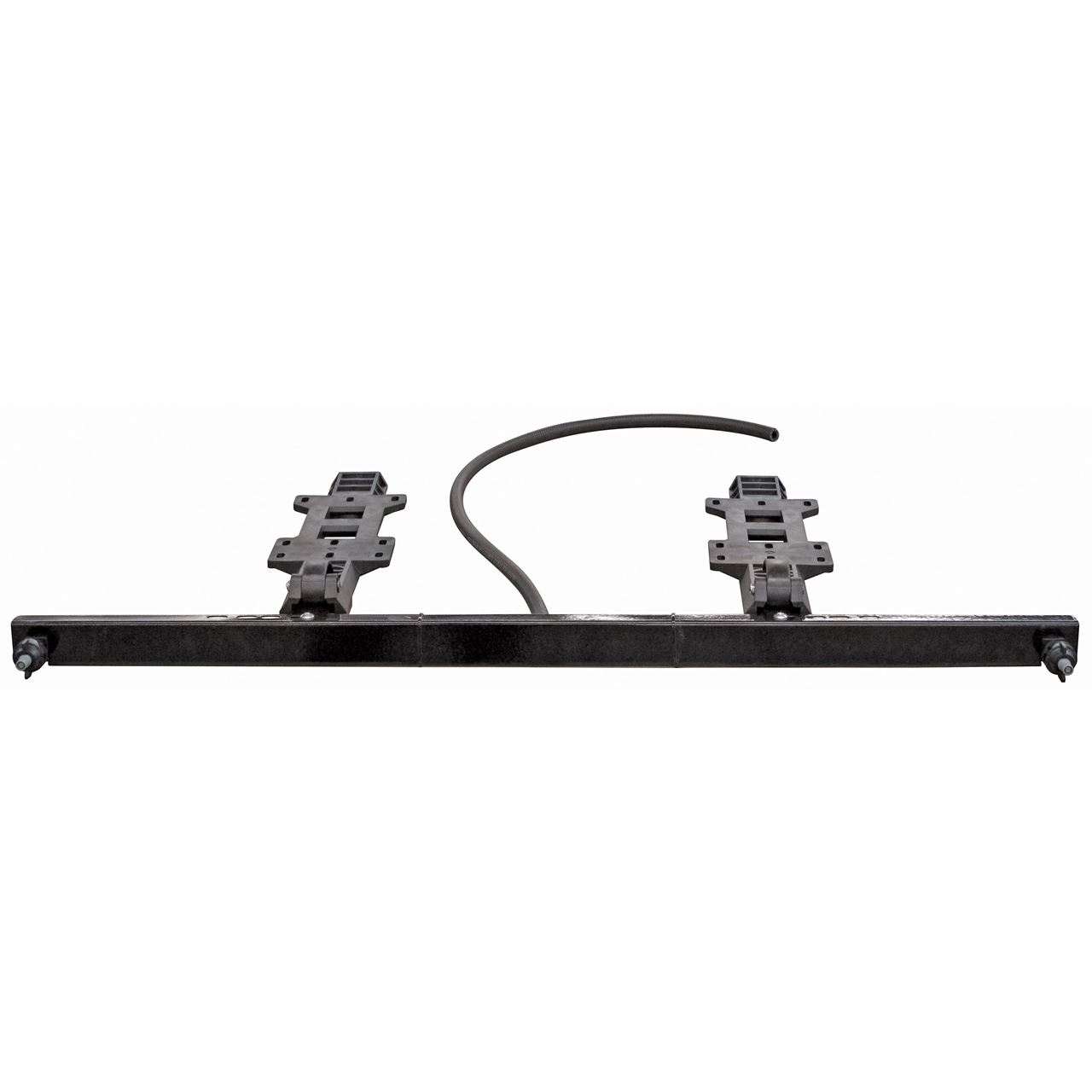

• Rigid steel 2 nozzle boom features Teejet® tips delivers 7 feet of total spray coverage with air induction tips for less wind drift and no drip check valves
• Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering

• Manufacturers Warranty: 1 yr Consumer / 90 day Commercial
• Tank Size (Gal) 20
• Flow (GPM): 2.4
• Pressure (PSI): 60
• Spray Wand Type: Lever Spray Wand
• Spray Pattern: Adjustable Pattern Tip
• Pump Type: HIGH FLO
• Spray Height (ft.): 16
• Horizontal Spray Distance (ft.): 30

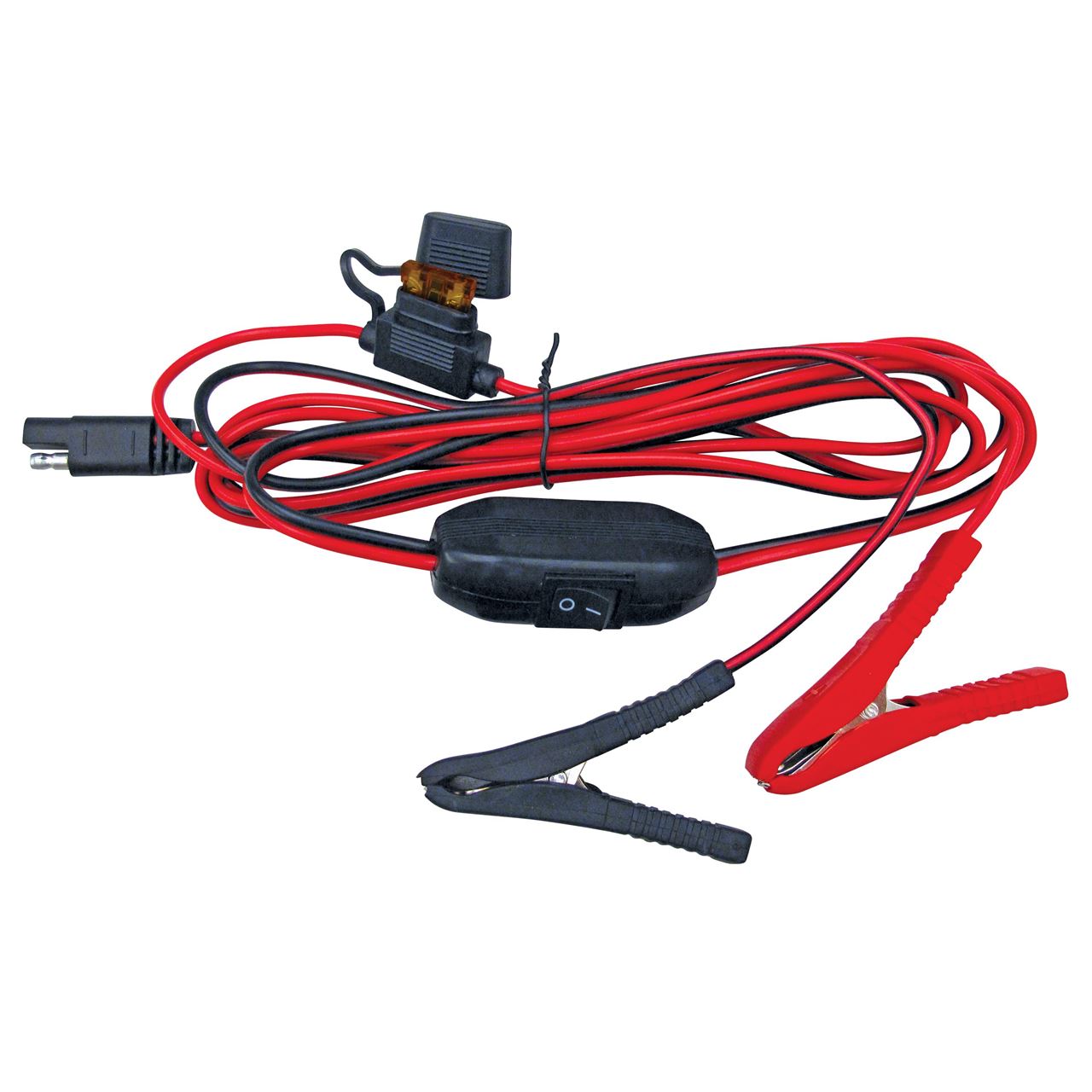

• Power Supply: 12V

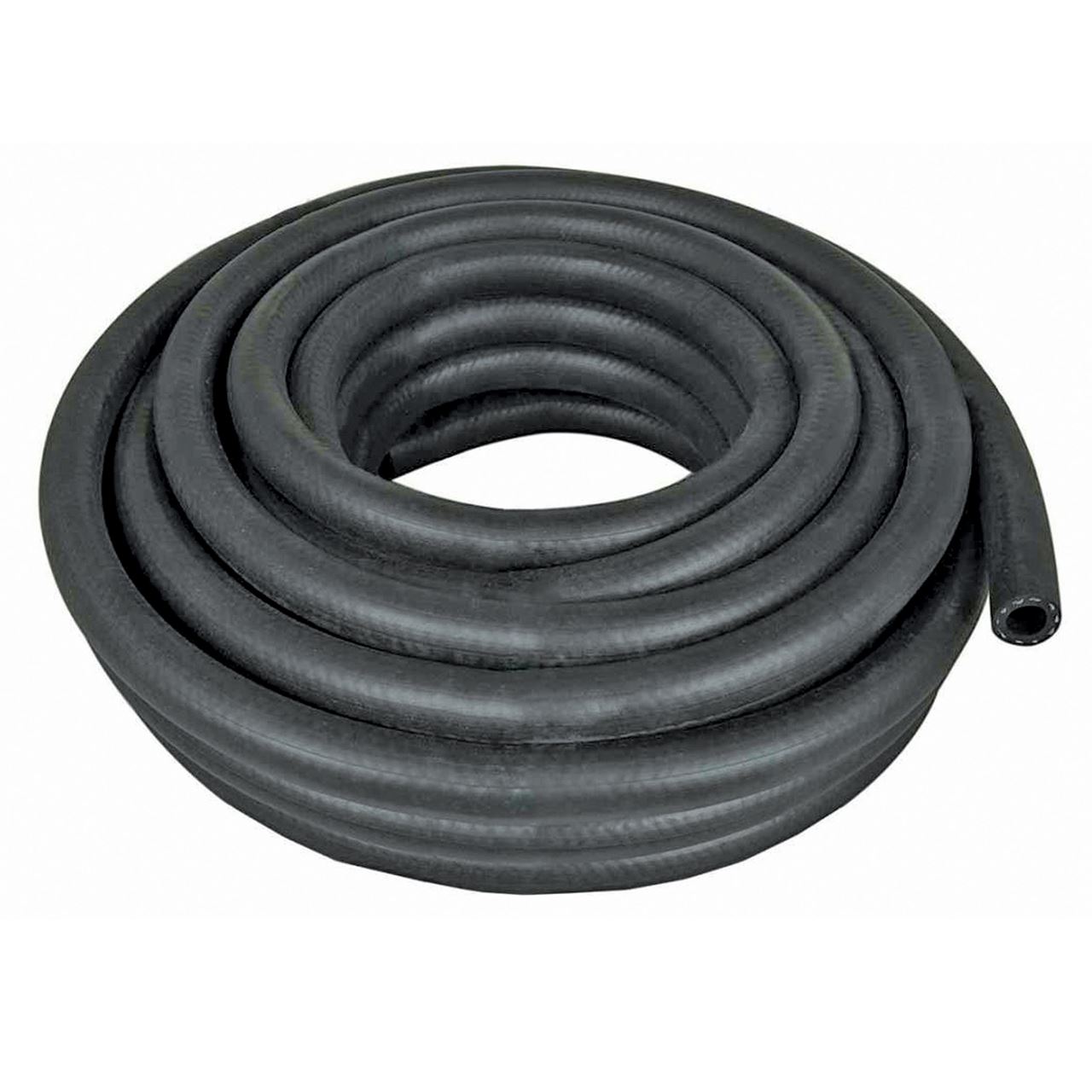

• Hose (in. x ft.): 3/8 x 15
• Boom Spray Coverage (ft.): 7
• Assembled L x W x H (in.): 37.5 x 16.25 x 14
• Pump Warranty: 2 yr Consumer / 90 day Commercial
Note: ATV & Straps are not included
• Weight 27 lbs
