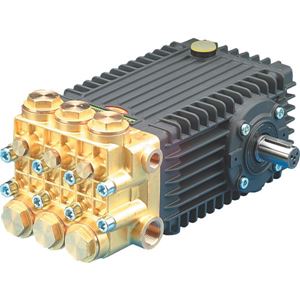

Picture of 3000 PSI, 8.5/10.2 GPM GPM 66 Series General Solid Shaft Pump

3000 PSI, 8.5/10.2 GPM GPM 66 Series General Solid Shaft Pump

SKU: TSF2221

Brand: General Pump


Product Description

General TSF2221 66 Series High Flow Triplex Plunger Pump

• Oversized roller bearings
• Fully anodized crankcase
• Innovative new seal design extends seal life
• New plunger design improves thermal shock resistance
• New valve cap improves hydrostatic performance

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Discharge Pressure: 3,000 PSI
• Max. Volume: 8.5 GPM @ 1,450 RPM
• Max. Volume: 10.2 GPM @ 1,750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements (EBHP): 17.5 @ 8.5 GPM/21.0 @ 10.2 GPM
• Maximum Inlet Pressure: 125 PSI
• Oil Capacity: 33.8oz.
• Max. Fluid Temp.: 165° F.
• Inlet Ports (2): 3/4"-14 BSP-F
• Discharge Ports (2): 3/8-19 BSP-F
• Drive Side: Standard right
• Dimensions: 14.94" x 9.78" x 6.99"
Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 40.7 lb.

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
