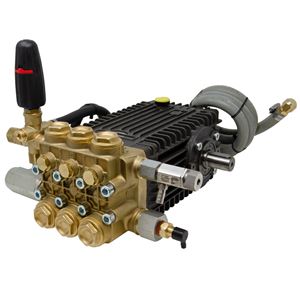

General PMRTSF2021 Pump Made Ready 66 Series High Flow Triplex Plunger Pump. Pump is ready to use right out of the box

Features:
• Oversized roller bearings
• Fully anodized crankcase
• Innovative new seal design extends seal life
• New plunger design improves thermal shock resistance
• New valve cap improves hydrostatic performance

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications:
• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Discharge Pressure: 3,600 PSI
• Max. Volume: 7.0 GPM @ 1,450 RPM
• Max. Volume: 8.5 GPM @ 1,750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements (EBHP): 17.3 @ 7.0 GPM/21.0 @ 8.5 GPM
• Maximum Inlet Pressure: 125 PSI
• Oil Capacity: 33.8oz.
• Max. Fluid Temp.: 165° F.
• Inlet Ports (2): 3/4"-14 BSP-F
• Discharge Ports (2): 3/8-19 BSP-F

COMPONENTS:
• General TSF2021 Triplex Plunger Pump
• 190446 Pump Oil Drain Kit
• ZH284K Unloader, 4060 PSI, 10 GPM
• High pressure safety relief valve
• Thermal relief valve
• 3/8” Hose Barb and Clamp Keeps Hose Secure and Sealed
• 3/4” Garden Hose Inlet Fitting with 1/4” Side Port
• 3/8” QC brass socket Installed and 3/8” QC Plug Included
• Mounting rails included
• Note: Pumps are not tested prior to shipping and unloader will need to be adjusted
• Weight: 46 lb
