Picture of Suttner ST-265 Unloader Valve 5,070 PSI

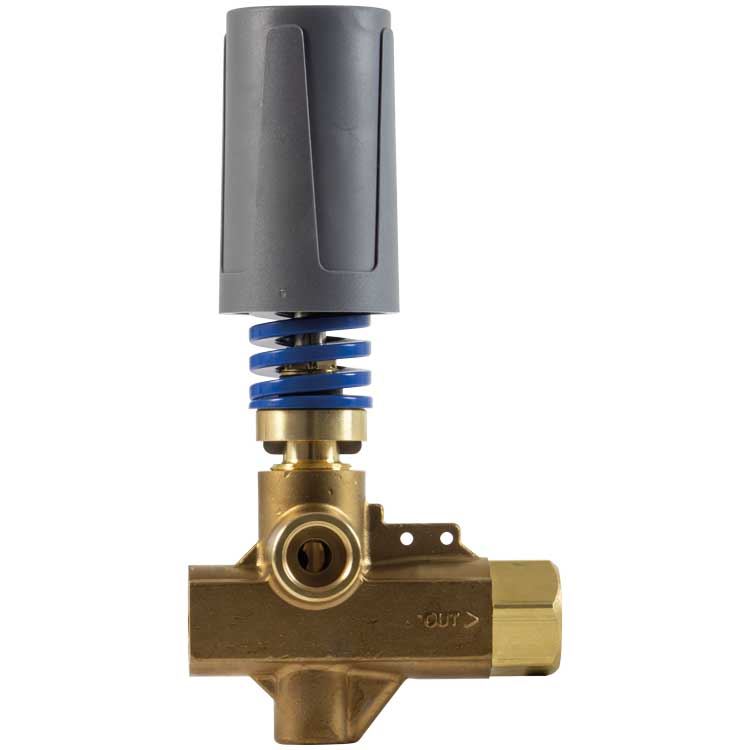

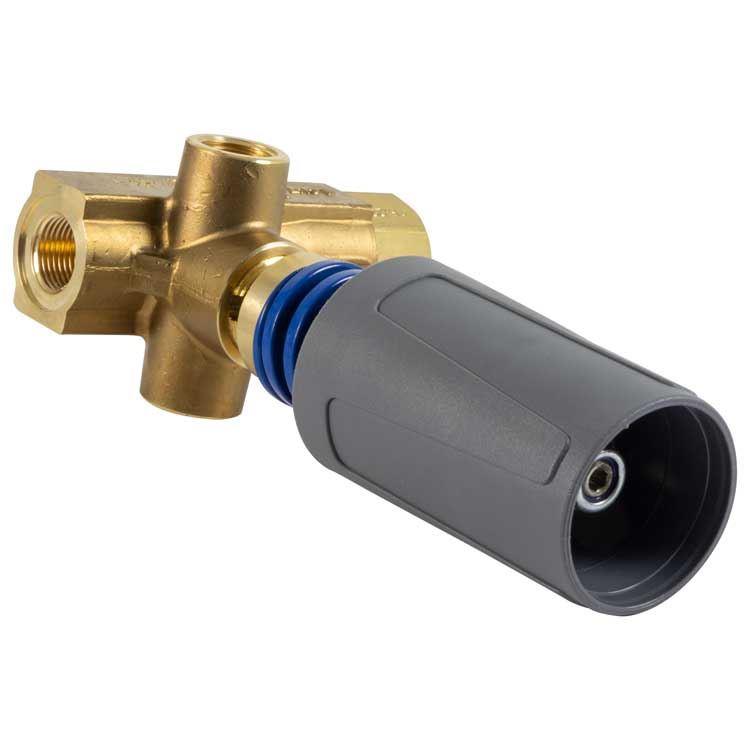

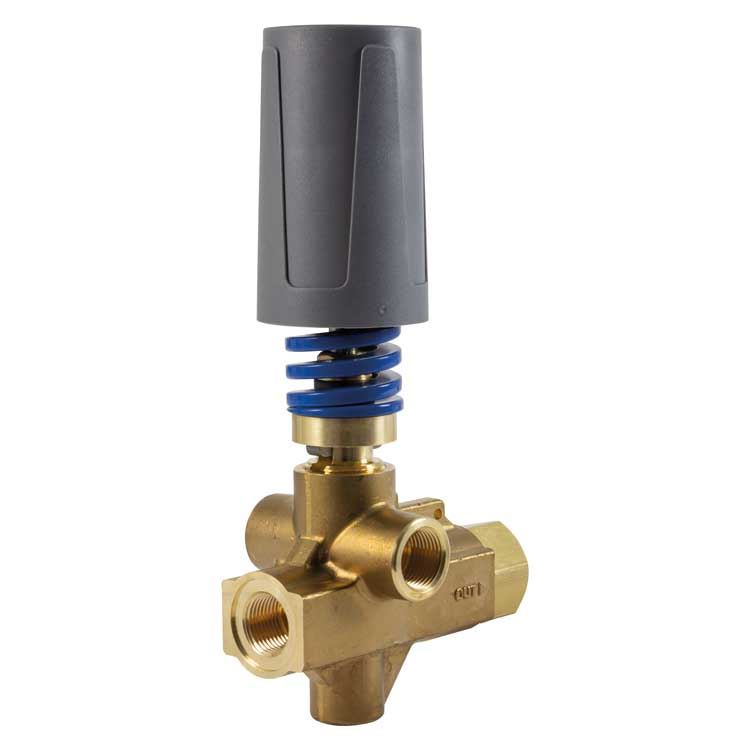

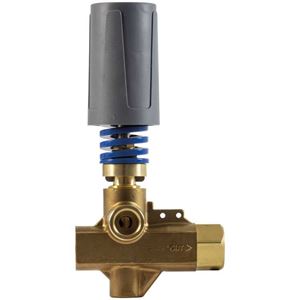

Suttner ST-265 Unloader Valve 5,070 PSI

SKU: 200265500

Brand: Suttner America

$118.96

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-265 Pressure Compensating Unloader Valve 5,070 PSI.


Features:
• Soft switching behavior
• Fatigue-free spring
• Particularly easy to maintain
• Low pressure drop
• Valve elements made of high-grade stainless steel and ceramic

Flyer


Specifications:
• Pressure:1,000 - 5,070 PSI
• Flow Rate: 13 GPM
• Max Temperature: 176° F
• Inlet Port: 3/8" FPT
• Outlet Port: 3/8” FPT
• Bypass Ports (2): 3/8” FPT
• Weight: 2.10 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
