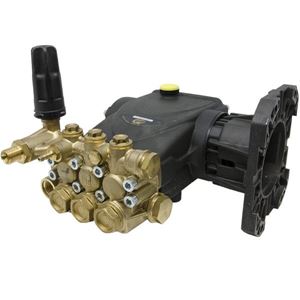

4,200 PSI 4.0 GPM General EP1313G8U/IF Direct Drive Pump with built-in unloader and injector

Features:
• Features built-in unloader (U) or unloader and fixed injector (UIF)
• New Forged brass manifold, increases working pressure to 4,200 PSI
• New plunger guide bushing (patent pending)
• Solid ceramic plungers with dual guide system
• New dual diameter plunger guide
• New optimized outlet valves
• New dual lip oil seal
• 1” Hollow shaft, flanged for direct couple to gas engines (SAE J609B)

Data Sheet

Specifications:
• General EP1313G8UIF Pump with SAE J609 Gas Flange
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,200 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 14.5 GHP
• Max. Fluid Temp.: 165º F
• Oil Capacity: 15 oz.
• Inlet Port Thread: 1/2"-14 BSP-F
• Discharge Port Thread: 3/8"-19 BSP-M
• Dimensions: 11.2"x9.6"x7.6"
• Replaces TX1510G8UIA
• Weight: 15.9 lb
