Picture of Suttner ST-285 Unloader Valve 3,625 PSI 26 GPM 1/2" F

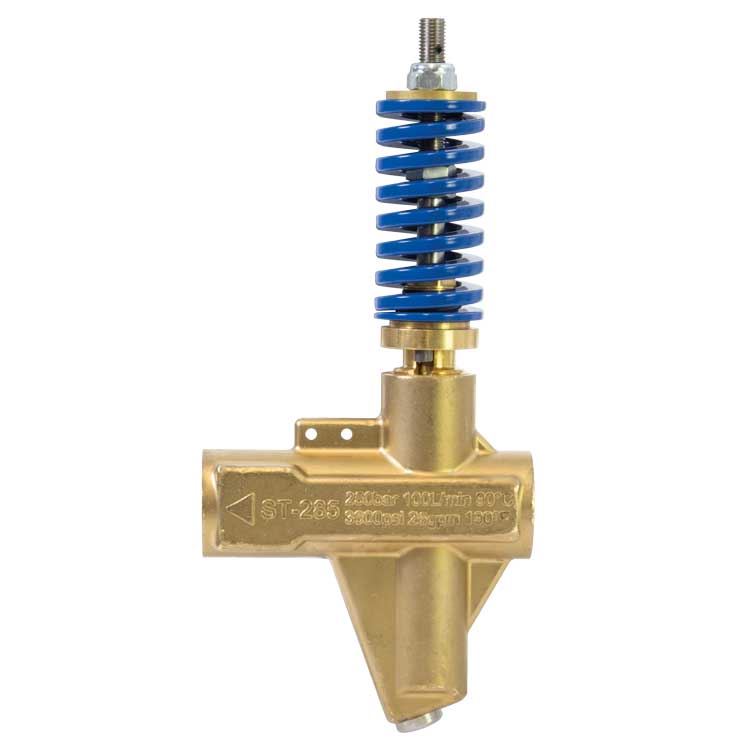

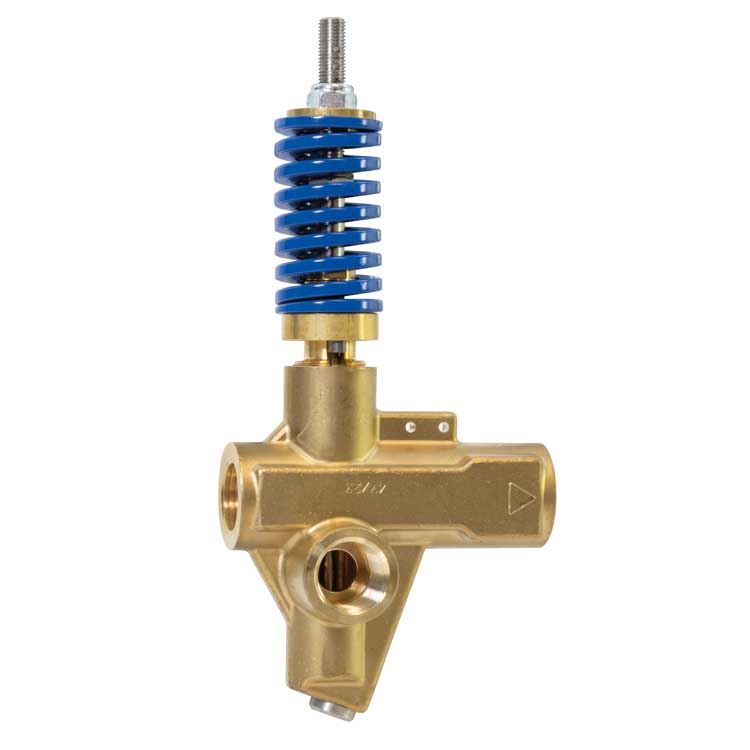

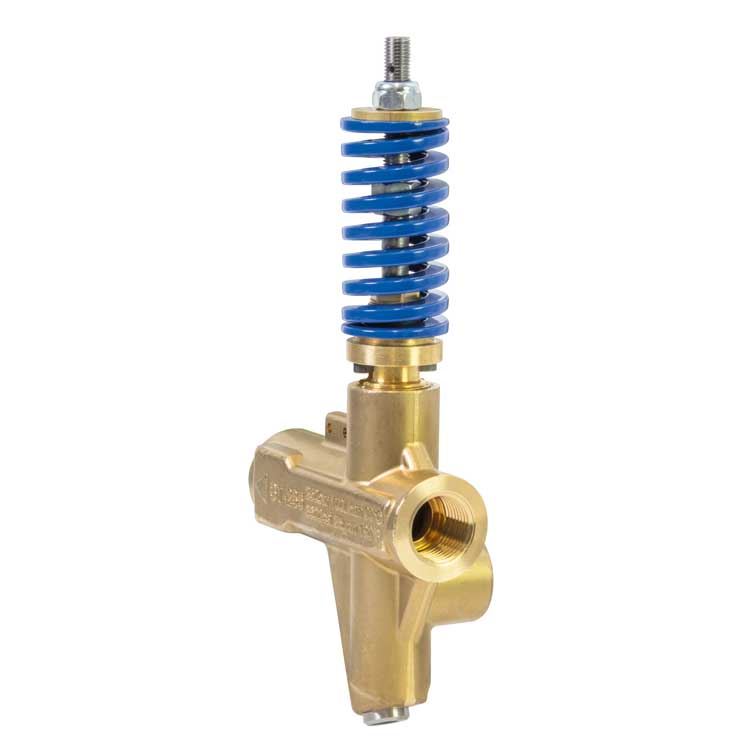

Suttner ST-285 Unloader Valve 3,625 PSI 26 GPM 1/2" F

SKU: 200285500

Brand: Suttner America

$134.60

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-285 Unloader Valve 3,625 PSI 26 GPM 1/2" F. Suttner unloader valve ST-285 for high flow rates. Particularly durable! High-quality combination of materials


Features:
• Soft switching behavior
• Fatigue-free spring
• Particularly easy to maintain
• Low pressure drop
• Sealing seats in high grade stainless steel and Ceramic ball in bypass

Flyer


Specifications:
• Max Pressure: 3,625 PSI
• Flow Rate: 26 GPM
• Max Temperature: 194° F
• Inlet Port: 1/2" F
• Outlet Port: 1/2” F
• Bypass Port: 1/2” F
• Weight: 2.10 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of PA VB 85/310 (Blue) and YUB21405 Adjustable Unloader 4,500 PSI

PA VB 85/310 (Blue) and YUB21405 Adjustable Unloader 4,500 PSI

SKU: 60.0423.65


PA VB 85/310 Rv and General YUB21405 blue spring trapped pressure unloader valve. At gun closure, the waterflow is discharged in bypass reducing the pressure in the system upstream of the valve


Featuring:
• Dynamic seals made up of O-ring and Back-up ring
• Optimized internal passages that guarantee reduced pressure loss
• Anti-rotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself
• O-rings of the fittings positioned upstream to the thread : no risk of fittings ejected in case of overpressure
• Double feed connection
• Suitable for recycled water and strong detergents

Data Sheet


Specifications:
• Spring Color: Blue
• Permissible Pressure: 4,500 PSI
• Rated Pressure: 4,050 PSI
• Rated Flow Rate: 21.0 GPM
• Rated Temperature: 195° F
• Inlet Ports (2): 1/2" NPT F
• Outlet Port: 1/2” NPT F
• Bypass Port: 1/2” NPT F
• Replaces: 60.0485.65, VB 85/280, 60.0400.65, VB 80/280 and YUB2140
• Weight: 40.63 Oz

  Price: $111.28
