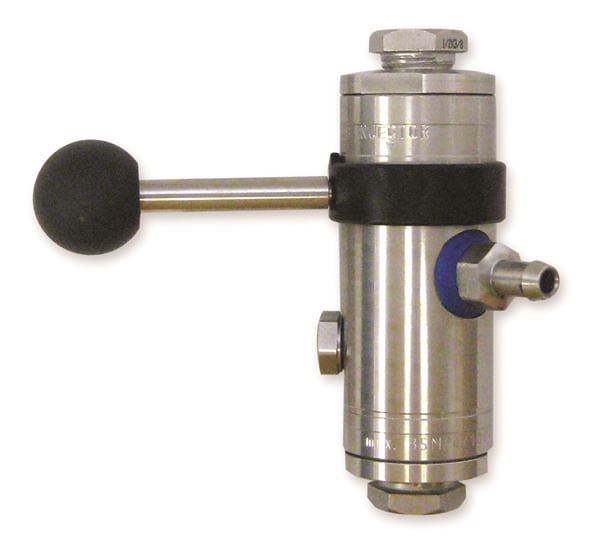

Picture of Suttner ST-167 Stainless Chemical Bypass Injector #6.0, 3/8" F x 3/8" F

Suttner ST-167 Stainless Chemical Bypass Injector #6.0, 3/8" F x 3/8" F

SKU: 200167505

Brand: Suttner America

$350.94

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-167 Stainless Steel Chemical Bypass Injector, #6.0, 5000 Psi, 3/8" F x 3/8” F


Field of Application
• The injectors completely made out of stainless steel make it possible to open two cross section areas (50 mm2 each) in order to guarantee a smooth use without drop in pressure when washing/rinsing
• This ensures that the injector can be permanently kept in the high pressure line, also at the time when large water quantities are used e.g. in the agriculture or food industry
• The cleaning capacity when cleaning and rinsing is not affected at all.

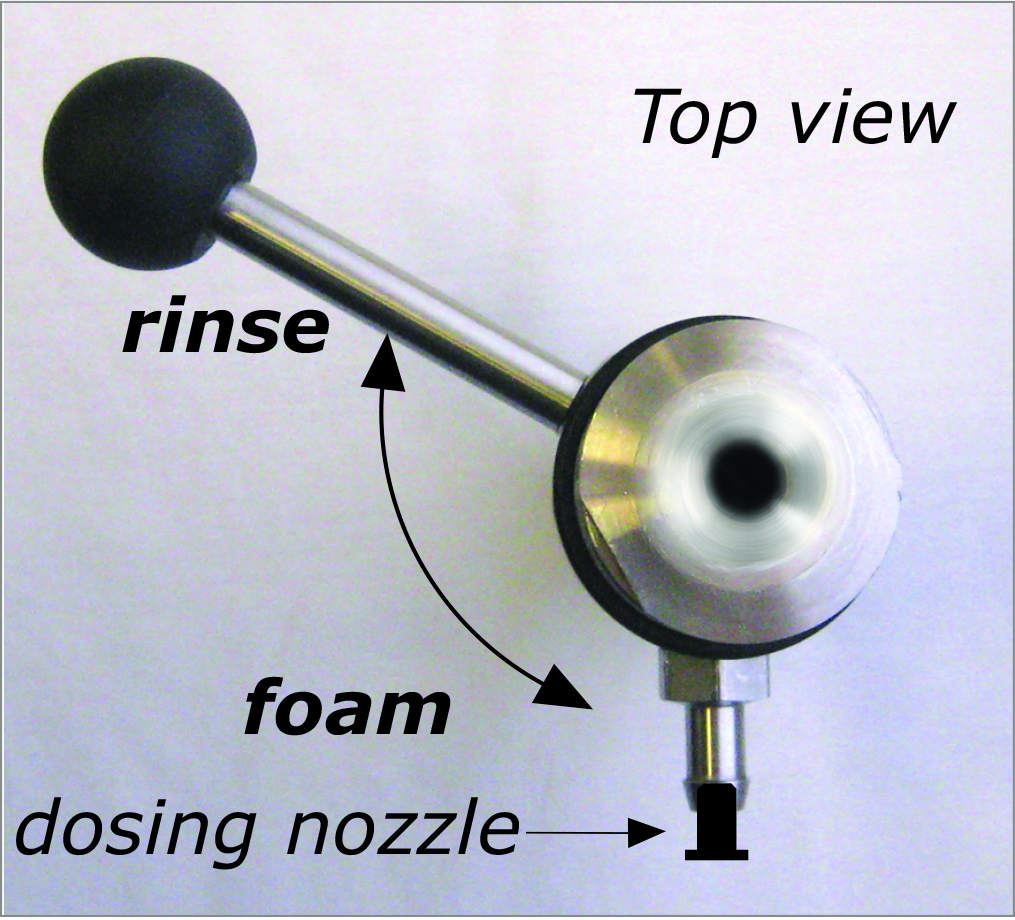

• A lever makes it possible to change from the cleaning and rinsing mode into injector operation
• When using the cleaning mode, there are two bore holes guiding the high pressure water parallel to the injector (bypass mode)
• When using the injector the available water quantity is guided through the injection area


Features
• Integrated lever that allows you to go from disinfectant to foam to rinse
• Food grade quality and specifications
• Durable Stainless steel construction
• 10 Dosing nozzles included
• Use 0.35 ID hose


Specifications
• Nozzle/Orifice Size: 6.0
• Max Flow Rate:18 GPM
• Min Flow Rate: 1 GPM
• Max Pressure: 5,000 PSI
• Min Pressure: 1,000 PSI
• Max Temp: 212° F.( Optimum foam created 130°F or less)
• Inlet: 3/8” Female
• Outlet: 3/8” Female
• Hose Barbs: .35” ID hose

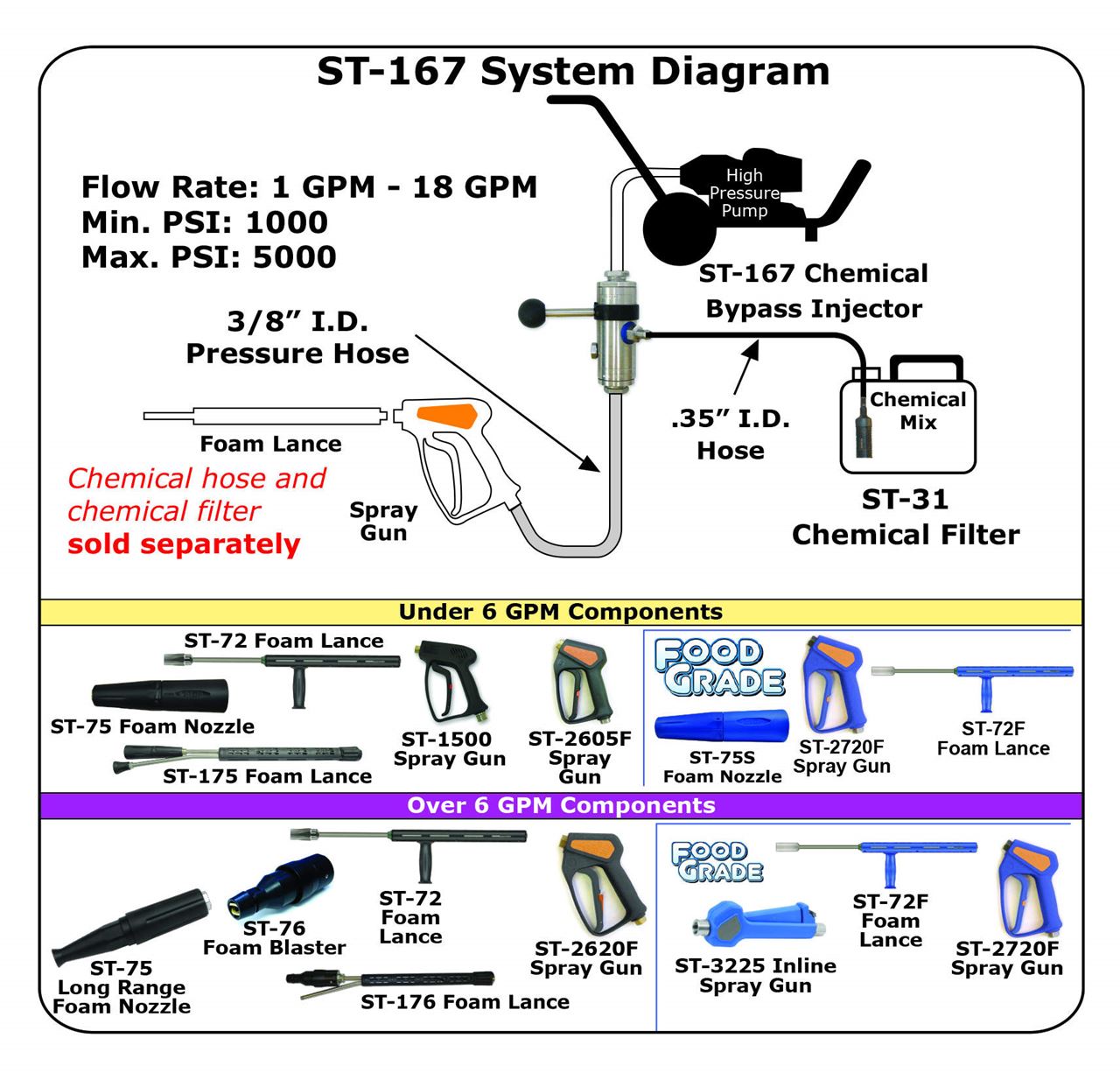

• See the ST-167 System Diagram (3rd Picture)
• Weight: 2.38 lb


Please use Nozzle Chart to determine proper nozzle size


Note: If between sizes, choose the larger nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
