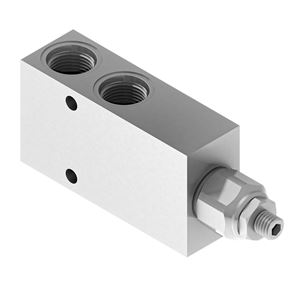

Delavan CBV-40-350-SAE8 Single Counterbalance Valve SAE8 10.6 GPM 870 - 5,075 PSI Range. BSA counterbalance valves are used to keep a load locked, the built-in relief valve protects the system from over- pressure in the cylinder by draining the oil.

Product Specifications

Specifications:

• Mfg.: FLUID-APP
• Type: BSA2S35
• Port Size: SAE 8 (3/4-16 UNF)
• Maximum Flow: 10.6 GPM
• Maximum Pressure : 5,075 PSI
• Range Spring: 870 – 5,075 PSI
• Increase To Turn: 1,960 PSI
• Pilot Ration: 1:4,25
• Oil temperature: -4°F + 176°F
• Max leakage: 0,25 cm3/min - 5 drops/min at 80% of the calibration pressure
• Warranty: 2 Years from date of purchase
• It is necessary to use a filter to protect the valve (advised filtration): 15 μm
• Weight: 2.31 lbs
