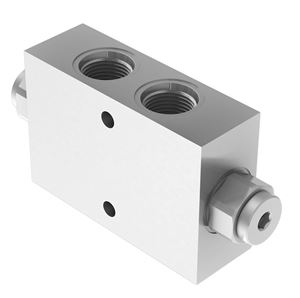

Delavan DAPOCV-60-210-SAE10 Double Acting Pilot Check Valve SAE 10 15.83 GPM 5,075 PS. VPD pilot check valves are used to lock a double acting actuator in place in both directions, ensuring the load is locked.

Product Specifications

Specifications:

• Mfg.: FLUID-APP
• Type: VPD3S
• Port Size: SAE 10 (7/8-14 UNF)
• Maximum Flow: 15.83 GPM
• Maximum Pressure : 5,075 PSI
• Pilot Ratio: 1:4
• Cracking Pressure: 65 PSI
• Oil temperature: -4°F + 176°F
• Max leakage: 0,25 cm3/min - 5 drops/min
• Warranty: 2 Years from date of purchase
• It is necessary to use a filter to protect the valve (advised filtration): 15 μm
• Weight: 4.15 lbs
