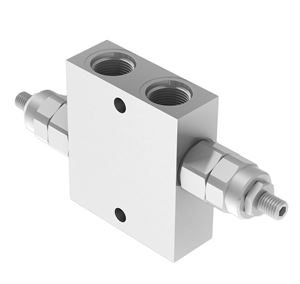

Delavan DCORV-80-210-SAE10-S Double Cross Relief Valve SAE10 21 GPM 290 - 3,625 Range 5,075 Max. VAA valves with steel manifold and two pressure relief valves, they control the pressure on both connection lines.

Product Specifications

Specifications:

• Mfg.: FLUID-APP
• Type: VAA3SC25H
• Port Size: SAE 10 (7/8-14 UNF)
• Maximum Flow: 21.1 GPM
• Maximum Pressure : 5,075 PSI
• Range Spring: 290 – 3,625 PSI
• Increase To Turn: 479 PSI
• Oil temperature: -4°F + 176°F
• Max leakage: 0,25 cm3/min - 5 drops/min at 80% of the calibration pressure
• Warranty: 2 Years from date of purchase
• It is necessary to use a filter to protect the valve (advised filtration): 15 μm
• Weight: 3.45 lbs
