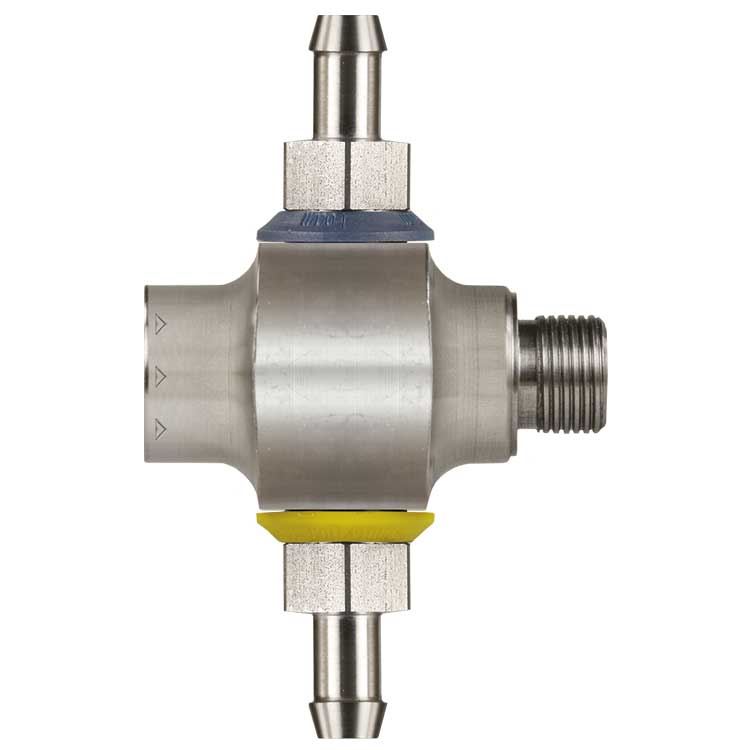

Suttner ST-166 Stainless Steel Dual Chemical Injector w/18 Metering / Dosing Nozzles, #11.0, 5000 PSI, 3/8" F x 3/8” M

Features
• Food grade quality and specifications
• Durable Stainless Steel housing

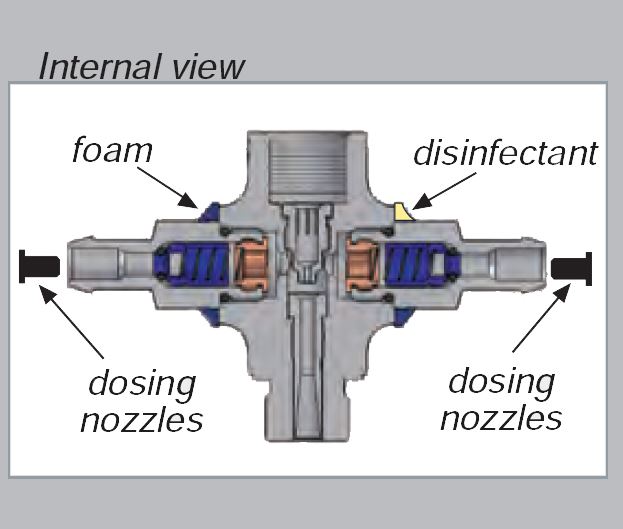

• 18 Metering / dosing nozzles included (See 3rd picture)
• Uses .35" I.D. Hose

Specifications
• Nozzle/Orifice Size: 11.0
• Max Flow Rate: 18 GPM
• Min Flow Rate: 1 GPM
• Max Pressure: 5,000 PSI
• Min Pressure: 1,000 PSI
• Max Temp: 194° F.
• Inlet: 3/8” Female
• Outlet: 3/8” Male
• Hose Barbs (2): .35” ID hose
• Weight: 0.75 lb

Please use Nozzle Chart to determine proper nozzle size

Note: If between sizes, choose the larger nozzle size

Nozzle Chart

See the ST-166 System Diagram below to determine the foam components needed

ST-166 System Diagram
