Picture of PA PR16 / GP Pressure Switch, 580 Switching (Black), 3/8" M Stainless Steel 5,000 PSI

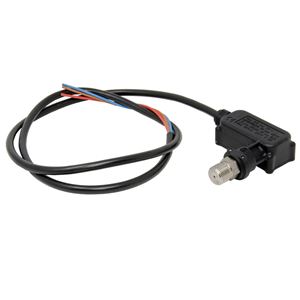

PA PR16 / GP Pressure Switch, 580 Switching (Black), 3/8" M Stainless Steel 5,000 PSI

SKU: 29.0035.10

Brand: P.A. Srl

$25.84

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA PR16 / General Pump YPRESSWITCH1564 5,000 PSI Pressure Switch with 580 PSI (Black) activation and 3/8" BSP-M stainless steel inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (580 PSI) , opens or closes an electrical control contact


Specifications
• Activation (Black) PSI: 580
• Max. Voltage: 250
• Permissible Pressure: 5,000 PSI
• Rated Temp: 165° F
• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Stainless Steel
• Cable Length: 47" (1200 mm)
• Electric Wire: 3 x 1 mm
• Inlet: 3/8" Bsp M
• Weight: 6.84 oz.
