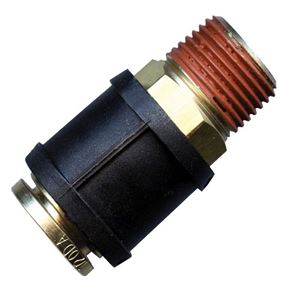

Fairview CPC1468-8B 1/2 Tube OD x 1/4 MPT Composite D.O.T. Push-To-Connect Male NPT Connector Air Brake Fitting. Fairview's Male Pipe Connectors Feature A Labor Saving Full Flow Design That Requires No Tools

Applications:
• Air Brakes
• Air Tanks
• Air Ride Suspension
• Sliders
• Tire Inflation
• Cab Controls

Product Features:
• Brass Collet
• Buna N O-ring
• Brass Tube Support
• Meets D.O.T. FMVSS 571.106
• Meets SAE J844
• Composite Body – Strong, Lightweight, Compact and Impact Resistant (Polypropylene)
• Plug-in configurations

Compatible Tubing:
• SAE J844 Type A & B nylon tubing

TECHNICAL DATA SHEET

Specifications:
• Fitting Type: Push-To-Connect
• Fitting Style: Male NPT Connector
• Tube OD: 1/2"
• Pipe Thread: 1/4" MPT
• Temperature Range (Using Low temp Buna O-ring): -67°F (-55°C) to 248°F (120°C)
• Weight 0.07 lbs
