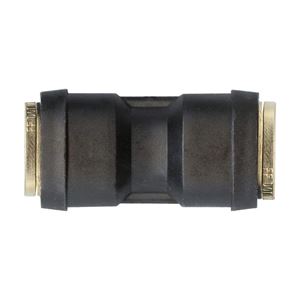

Fairview CPC1462-10 5/8 Tube OD x 5/8 Tube OD Composite D.O.T. Push-To-Connect Union Coupling Air Brake Fitting. Fairview's Union Couplings Feature A Labor Saving Full Flow Design That Requires No Tools

Applications:
• Air Brakes
• Air Tanks
• Air Ride Suspension
• Sliders
• Tire Inflation
• Cab Controls

Product Features:
• Brass Collet
• Buna N O-ring
• Brass Tube Support
• Meets D.O.T. FMVSS 571.106
• Meets SAE J844
• Composite Body – Strong, Lightweight, Compact and Impact Resistant (Polypropylene)
• Plug-in configurations

Compatible Tubing:
• SAE J844 Type A & B nylon tubing

TECHNICAL DATA SHEET

Specifications:
• Fitting Type: Push-To-Connect
• Fitting Style: Union Coupling
• Tube OD: 5/8"
• Temperature Range (Using Low temp Buna O-ring): -67°F (-55°C) to 248°F (120°C)
• Weight 0.095 lbs
