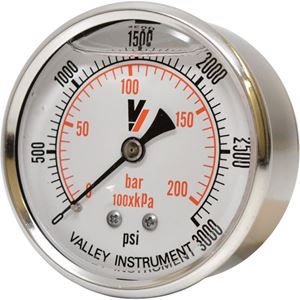

Picture of 3,000 PSI Back Mount 2-1/2" SS Pressure Gauge

3,000 PSI Back Mount 2-1/2" SS Pressure Gauge

SKU: 2240GXB3000

Brand: Valley Industries

Only $12.27

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Valley Industries Series 40 Dual Scale Industrial 3,000 PSI Back Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 3,000
• Dial Range (BAR): 0 – 200
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Back
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Kit: Water Seal SJV (Replaces AR2147)

SKU: AR2167
Kit: Water Seal SJV
Price: $19.13

Hypro 5300 Series Piston Pump 1.5GPM, 500PSI

SKU: 5315C-HRX

• 5300 Series Piston Pump
• 5/8” Hollow Shaft
• Max. Volume: 1.5 GPM
• Max. Discharge Pressure: 500 PSI
• Max. Pump Speed: 1750 RPM
• Cast iron body
• Stainless steel check valves
• ½” NPT Inlet & outlet Ports
• Complete with base or torque arm
• Max. Fluid Temp.: 180º degrees F.
• Weight: 10.0 lb.

Price: $326.66

Brass Pressure Relief Valve, 0-300 PSI, 3/4"M, 3/4"F

SKU: 2053-01

• High flow brass pressure relief valve
• Adjustable pressure range : 0 - 300 PSI
• Max. Volume: 15.0 GPM
• Durable & strong brass construction
• Stainless steel spring
• Positive Viton seal to prevent leakage
• Tee-handle adjustment screw
• Knurled locknut for easy adjustment
• Max. Fluid Temp.: 120 degrees F.
• Inlet Port: 3/4" MPT
• Outlet Port: 3/4” FPT
• Weight: 1.0 lbs

Price: $45.34

3,000 PSI Back Mount 1-1/2" SS Pressure Gauge

SKU: 0240GXB3000


Valley Industries Series 40 Dual Scale Industrial 3,000 PSI Back Mount 1-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 3,000
• Dial Range (BAR): 0 – 200
• Casing: 1 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Back
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.25 lbs.



Price: $11.05
