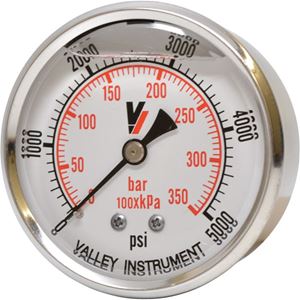

Picture of 5,000 PSI Back Mount 2-1/2" SS Pressure Gauge

5,000 PSI Back Mount 2-1/2" SS Pressure Gauge

SKU: 2240GXB5000

Brand: Valley Industries

Only $12.27

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Valley Industries Series 40 Dual Scale Industrial 5,000 PSI Back Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 5,000
• Dial Range (BAR): 0 – 350
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Back
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



Customers who bought this item also bought

#8.0 PA UR25 Blue Rotating Nozzle 3,650 PSI

SKU: 25.1620.80

#8.0 Blue UR25 Turbo Nozzle 3,650 PSI is shrouded in a resilient rubber housing protector


Features
• Offers 0° Impact, but with a 25° pattern
• Unique internal stabilization spring design allows for aim & shoot operation
• Nozzle can be pointed in any direction
• Shock resistant ceramic
• High Strength forged brass housing
• Durable rubber cover


Specifications
• Nozzle Size #8.0
• Max PSI: 3,650
• Max GPM: 7.7
• Inlet: 1/4" FPT
• Minimum for operation: 1.6 GPM at 1,150 PSI
• Weight: 0.9 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Price: $44.79

3/8 FPT Quick Coupler Socket, Brass

SKU: QCS2FB

Brass Quick Connect Socket with Female 3/8" NPT


Features:
• Disconnects with a simple pull to retract socket sleeve
• Ball bearing snap connection
• Precision machined parts
• Click lock design


Specifications:
• Quick connect coupler / socket
• Material: Brass
• Inlet: 3/8" Female NPT
• Outlet: 3/8" Female quick connect
• 4,200 PSI working pressure


Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"

Price: $2.46

1/4 MPT Quick Coupler Plug, Steel

SKU: QCP1MS

Zinc Coated Steel Quick Connect Plug with Male 1/4" NPT


Features:
• Ball bearing snap connection
• Precision machined parts
• Click lock design


Specifications:
• Quick connect plug
• Material: Zinc coated steel
• Inlet: 1/4" Male NPT
• Outlet: 1/4" Male quick connect
• 5,000 PSI working pressure

Price: $0.69

3/8 MPT Quick Coupler Socket, Brass

SKU: QCS2MB

Brass Quick Connect Socket with Male 3/8" NPT


Features:
• Disconnects with a simple pull to retract socket sleeve
• Ball bearing snap connection
• Precision machined parts
• Click lock design


Specifications:
• Quick connect coupler / socket
• Material: Brass
• Inlet: 3/8" Male NPT
• Outlet: 3/8" Female quick connect
• 4,200 PSI working pressure

Price: $2.53
