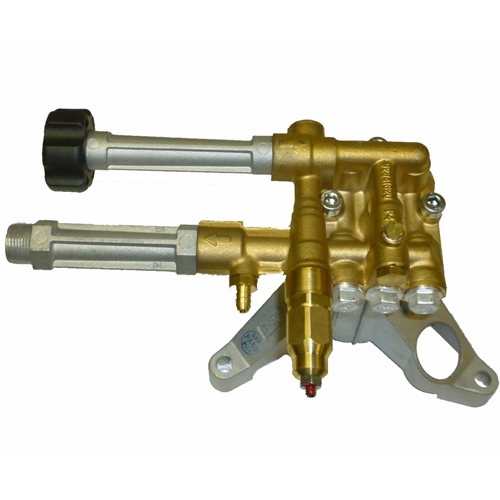

Picture of 2500PSI, 2.0GPM Annovi Reverberi Direct (Front Mount)

2500PSI, 2.0GPM Annovi Reverberi Direct (Front Mount)

SKU: RMW2G25D

Brand: Annovi Reverberi - AR North America

Only $115.02

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


This Annovi Reverberi / AR North America RMW2G25D, RMW 2G25D series plunger pump will pump up to 2.0 GPM at 2,500 PSI. Vertical Radial-Axial series replacement pump (Mounts under the engine). The hollow shafted pump includes a built-in pressure control valve and chemical injection system




Features:

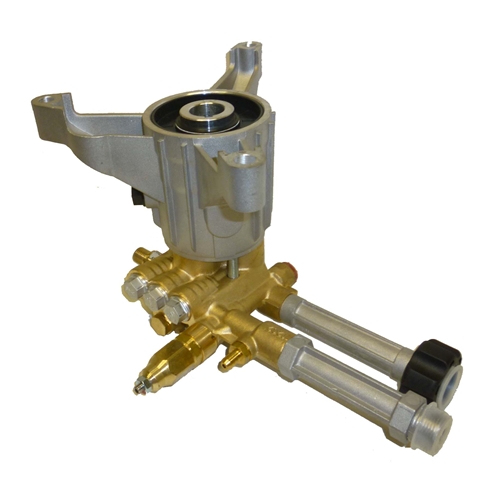

• Check the HOLE in the ARM location relative to the inlet/outlet Port (2nd Picture)

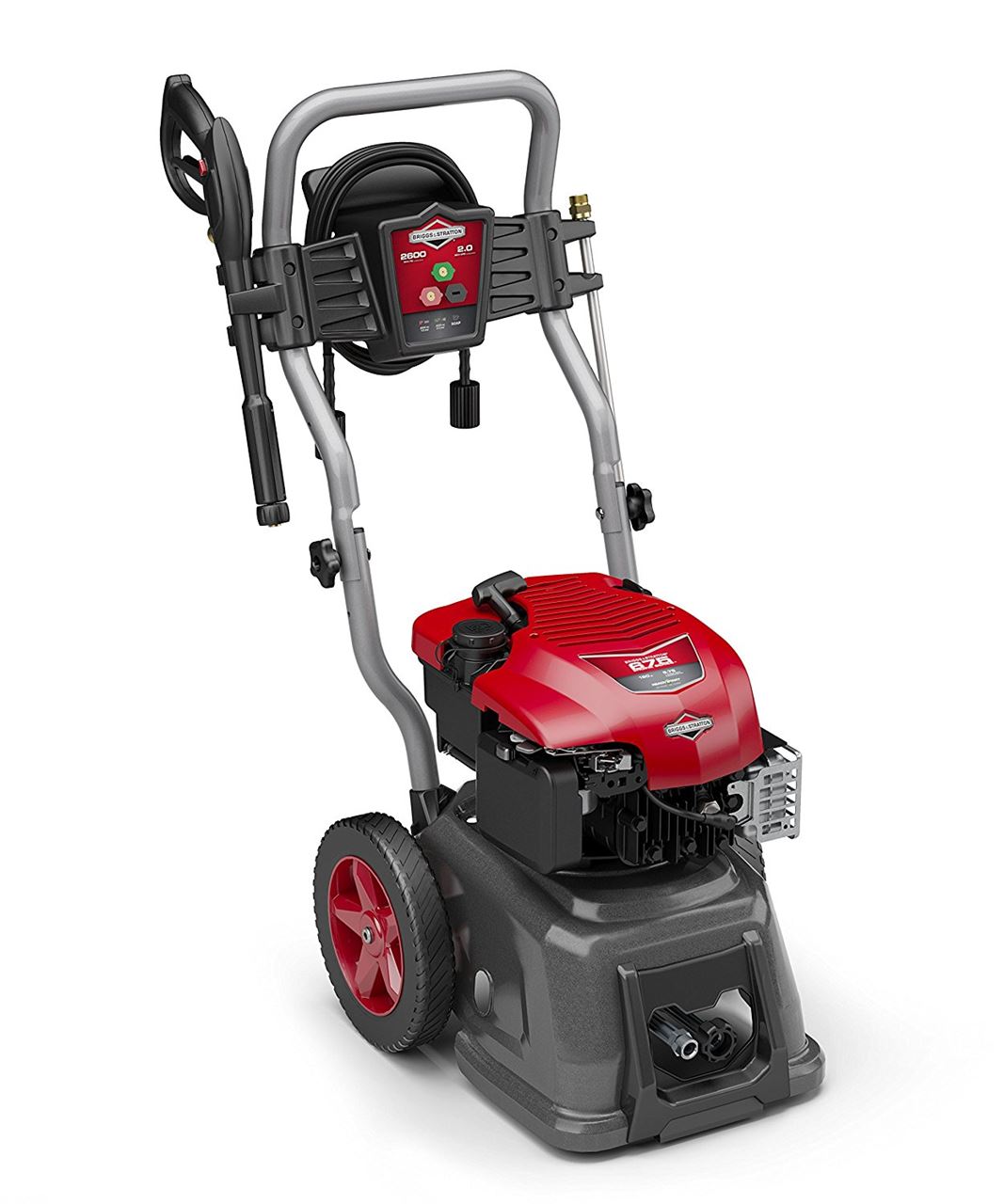

• Fits most homeowner type vertical pressure washers with Front Mounted Pump (see 3rd image)
• NOTE: This Pump DOES NOT fit Karcher units using a hex head bolt to drive the pump.


Specifications:
• Vertical Mount with Gas Flange 3-7 HP
Note: This pump is Front Mounted
• Max. Volume: 2.0 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 7/8” Hollow
• Built In unloader and chemical injector
• Maximum Horsepower Requirements: 4.5 GHP
• Inlet Port: 3/4" FGH (garden hose)
• Outlet Port: 22mm (Twist Connect)
• Auxiliary Port: 1/4” FPT
• Brass manifold
• Stainless steel plungers
• Pump comes with oil
• See optional items below or in our store
• Note: Engine shafts longer that 2” will require spacers or washers
• Weight: 7.7lb.



Customers who bought this item also bought

Thermal Relief Valve 145º F 1/4 MPT

SKU: TPP140 1/4

AR TPP140 Series Pressure Washer Thermal Relief Valve with 1/4" Male Inlet


Specifications:
• Automatically Resets at Cool Down
• Compact Design
• Trip Temperature: 145º F.
• Aluminum body
• Inlet thread size: 1/4" MPT
• Installs in bypass line or inlet side of pump head
• Weight: 1.5 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual O.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"

Price: $6.83

3/16" x 1-3/4" Straight Key, 3/4" & 7/8" Solid Shaft Engines

SKU: 8102.2800.00

3/16” Universal engine shaft key for 3/4" & 7/8" Solid Shaft Engines


Specifications:
• Works on most 3/4" horizontal & 7/8" vertical engines with solid shafts and a 3/16" keyway
• 3/16" W x 1-3/4" L
• Key may have to be cut to length

Price: $1.18
