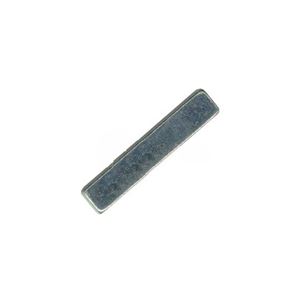

Specifications:
• Works on most 3/4" horizontal & 7/8" vertical engines with solid shafts and a 3/16" keyway
• 3/16" W x 1-1/2" L
• Key may have to be cut to length

Specifications:
• Special blend, 30W viscosity, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 16 oz bottles
• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS
• Weight: 1.0 Lbs.

This Annovi Reverberi / AR North America RSV4G40HDF40EZ / RSV4G40HD-F40EZseries pumps are designed to direct drive on gasoline engines ranging from 5 – 13 h.p. Intended use for medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance of 4 gpm at 4,000 psi. The RSV is a result of our combined 60 years of pumps building experience and expertise

Features
• Triplex pump with Easy Start is smooth starting
• Features a compact and efficient intergraded unloader valve and fixed chemical injector
• Thermal relief valve included at no cost
• Built In easy start valve
• Forged brass head & valve covers
• Ceramic coated stainless steel plungers
• Direct drive with 4 bolt gas mounting flange

Specifications
• AR number on pump head RSV 4G40B
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 13.75 GHP
• Max. Fluid Temp.: 140° F.
• Inlet Port: 3/8" FPT
• Outlet Port: 3/8" Male NPT
• Oil capacity: 16 oz
• Replaces RSV4G40B
• Weight: 14.0 lb.

Annovi Reverberi / AR North America RRV 4G40-PKG pump with bolt-on unloader, chemical injector, thermal valve and garden hose inlet connector. RRV D Version with F24 flange series pumps are designed to direct drive on gasoline engines ranging from 8 -13 HP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRV is a result of our combined 60 years of pumps building experience and expertise

Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications:
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 14.55 GHP
• Max. Fluid Temp.: 140° F.
• Oil capacity: 13.35 oz
• Unloader Inlet: 3/4" GH (garden hose)
• Unloader Outlet: 3/8" Male
• Weight: 20.10 lb.

Package Components:
• RRV4G40D-F24 pump
• VR35 Adjustable unloader with adjustable chemical injector
• Thermal relief valve
• Garden hose inlet connector with cone filter
