ProPulse, a Schieffer Company, backed by more than 90 years of innovation

Features:
• Assembled in USA with high quality components
• Suitable for commercial pressure cleaning applications
• Rubber construction throughout
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover: Smooth, “Mark-Less” with printed lay line
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

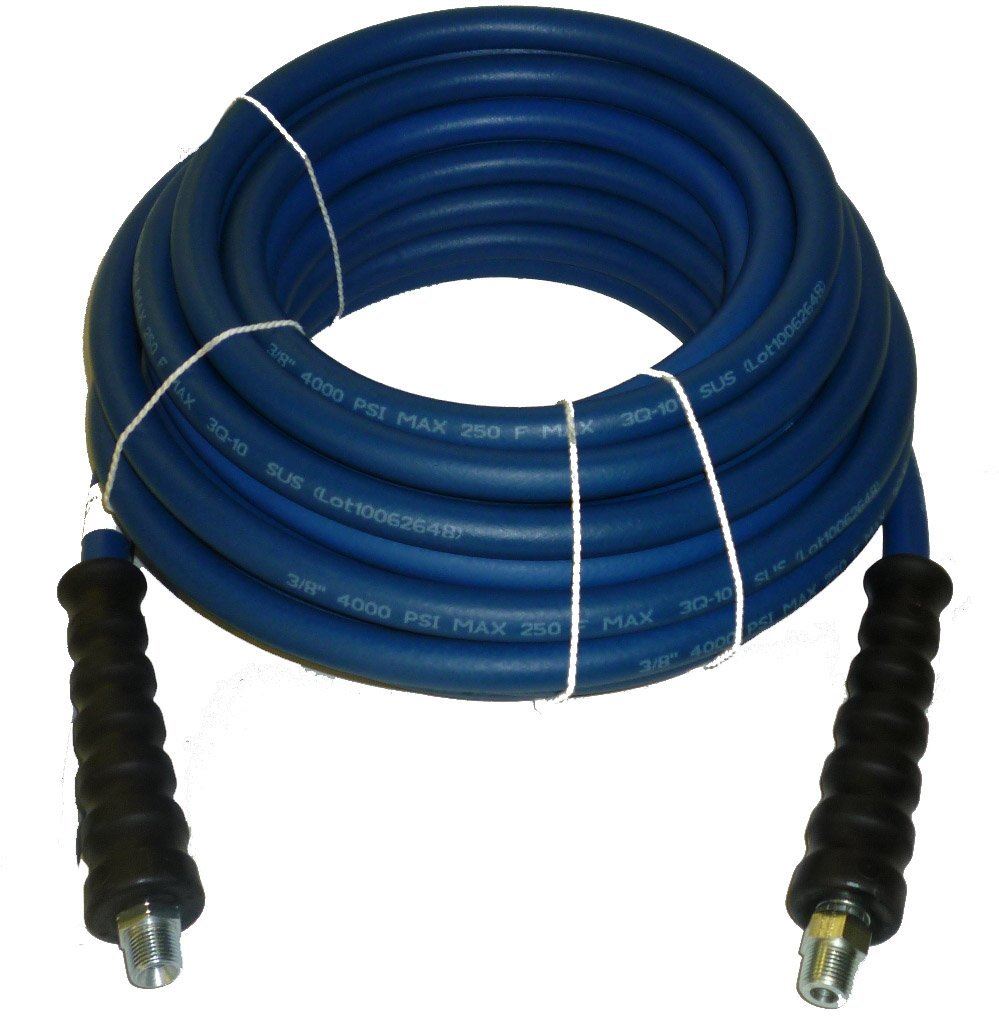

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 50’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Blue
• Maximum Temperature: 250° F.

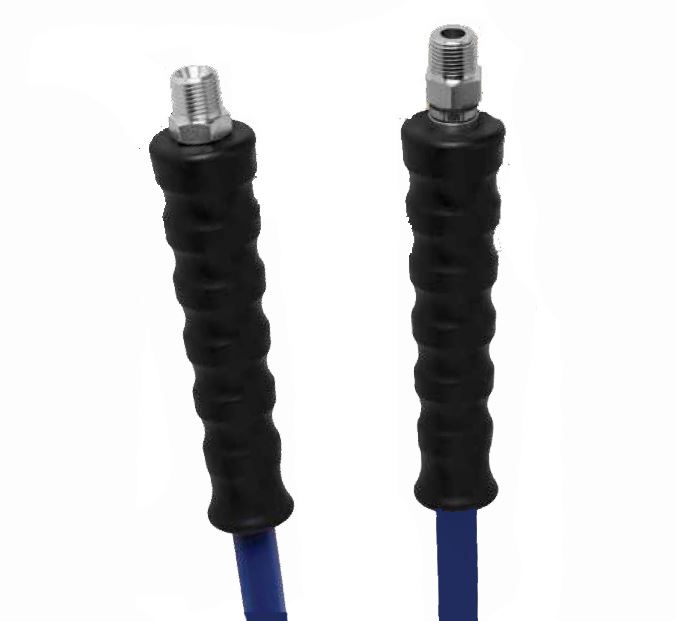

• Ends: 3/8" MPT (1 solid & 1 swivel) )
• Permanent heavy duty black bend restrictors on both ends.
• Weight 12.2 lbs

General Pump 40° (White) #4.0 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 40° (White)
• Nozzle Size: 4.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Specifications:
• Special blend, 30W viscosity, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 16 oz bottles
• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS
• Weight: 1.0 Lbs.

Specifications:
• Works on most 1" solid shaft engines with a 1/4" keyway
• 1/4" W x 1-5/16" L
• Key may have to be cut to length
