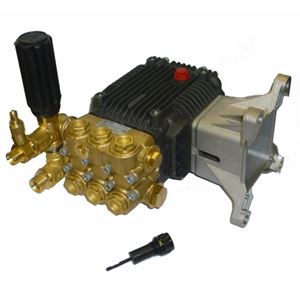

Picture of 3000PSI, 3.0GPM AR Direct Drive Pump with Unloader

3000PSI, 3.0GPM AR Direct Drive Pump with Unloader

SKU: XMV3G30D-F24C2I

Brand: Annovi Reverberi - AR North America

Only $320.41

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Annovi Reverberi / AR North America XMV3G30D-F24C2I pump with bolt-on unloader and chemical injector. XMV D Version with F24 flange series pumps are designed to direct drive on gasoline engines ranging from 8 -13 HP.


Specifications:
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 8.2 GHP
• Max. Fluid Temp.: 140° F.
• Drive Side: Standard right
• Forged brass head & valve covers
• Solid ceramic plungers
• Unloader Inlet: 1/2" MPT
• Unloader Outlet: 3/8" MPT
• Weight: 22.0 lb.


Package Components:
• XMV3G30D-F24 pump
• AR Gymatic 3/B Adjustable unloader with adjustable chemical injector

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
