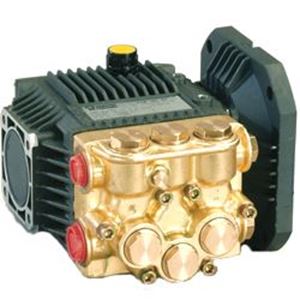

Annovi Reverberi / AR North America XTA E Version with F8 flange series pumps are designed to direct drive on electric NEMA 56 C motors ranging from 1.5 – 6.0 HP. XTA plunger pumps are used for a wide variety of moderate pressure washing applications

Features:
• Constructed with die-cast bodies and feature a brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized needle bearings on the drive side, and ball bearing on the non-drive side assure positive proper shaft alignment and maximum life
• One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement

Specifications:
• Direct Drive with Electric Flange NEMA 56C
• Max. Volume: 2.1 GPM
• Max. Discharge Pressure: 1,800 PSI
• Max. Pump Speed: 1750 RPM
• Shaft Diameter: 5/8” Hollow
• Minimum Horsepower Requirements: 2.5 BHP
• Max. Fluid Temp.: 160 degrees F.
• Inlet Ports (2): 1/2" BSP
• Discharge Ports (2): 3/8" BSP
• Drive Side: Standard right
• Forged brass head & valve covers
• Solid ceramic plungers
• Weight: 10.0 lb
