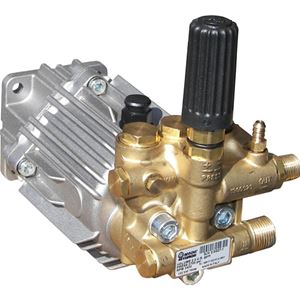

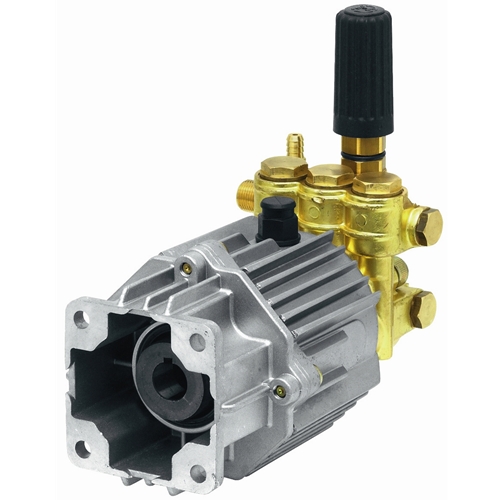

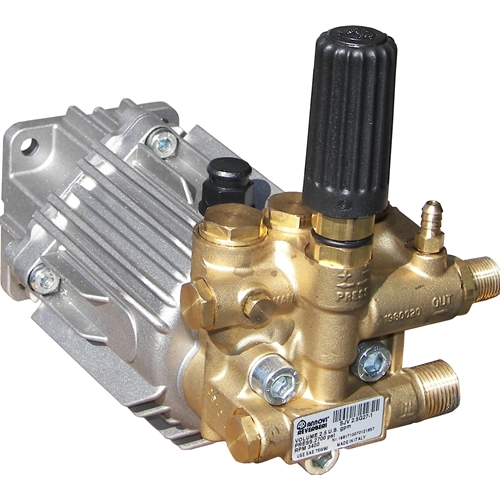

Annovi Reverberi / AR North America SJV2.5G27D Axial Radial Pump. This AR SJV series pump is designed for medium duty loads. It spins at 3400 RPM in a direct drive system coupled with a gasoline engine, the matching flange provides convenient connections to most 3/4” shaft 3.5 - 6.5 HP engines. Precision die-cast crankcase with large cooling fins for maximum heat dissipation. Seals and V-Packings designed to continuously lubricate for extended life. Built-in unloader to optimize performance while reducing setup time. Integral trap pressure with fixed chemical injector.
• Horizontal Mount Direct Drive with Gas Flange 3-6.5 HP SAE (2-9/16 center to center)
• Max. Volume: 2.5 GPM
• Max. Discharge Pressure: 2,700 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 3/4” Hollow
• Maximum Horsepower Requirements: 6.0 GHP
• Max. Fluid Temp.: 140º F.
• Inlet Port: 1/2" Male
• Discharge Port: 3/8" Male
• Auxiliary Port: 1/4" Female
• Built In unloader and chemical injector
• Forged brass head & valve covers
• Solid ceramic plungers
• Weight: 11.0 lb.
