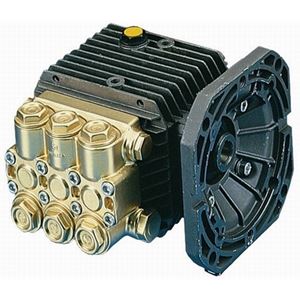

Picture of 1500PSI, 2.8GPM General Direct Drive Pump

1500PSI, 2.8GPM General Direct Drive Pump

SKU: TT9071EBF

Brand: General/Interpump Pump

Only $325.45

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


• Triplex Plunger Pump
• Direct Drive with Electric Flange NEMA 56C
• Max. Volume: 2.80 GPM
• Max. Discharge Pressure: 1,500 PSI
• Max. Pump Speed: 3400 RPM
• Shaft Diameter: 5/8” Hollow
• Max. Horsepower Requirements: 3.0 BHP
• Max. Fluid Temp.: 165º degrees F.
• Inlet Ports (2): 3/8" BSP
• Discharge Ports (2): 1/4" BSP
• Drive Side: Standard right
• Forged brass head & valve covers
• Solid ceramic plungers
• Weight: 11.5 lb.

Customers who bought this item also bought

3/8 FPT Quick Coupler Socket, Brass

SKU: QCS2FB

Brass Quick Connect Socket with Female 3/8" NPT


Features:
• Disconnects with a simple pull to retract socket sleeve
• Ball bearing snap connection
• Precision machined parts
• Click lock design


Specifications:
• Quick connect coupler / socket
• Material: Brass
• Inlet: 3/8" Female NPT
• Outlet: 3/8" Female quick connect
• 4,200 PSI working pressure


Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"

Price: $2.46

#4.0 x 15º QC Spray Nozzle (Yellow)

SKU: 915040Q

• 15º Quick Connect AR North America Spray Nozzle
• Nozzle Size: 4.0
• YELLOW color coded nozzle protector
• All nozzles tested for accuracy and spray patterns at time of manufacturing
• Triangle design allows for easy spray angle orientation
• Improved cap design for easy grip
• Super hard body reduces plug wear
• Special QC body for smooth insertion and ejection
• Hardened Stainless Steel
• 5,000 PSI max. pressure
• 1/4" QC plug inlet
• Weight: 0.05 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Price: $3.25

Suttner ST-5 Vertical Mount Flow Switch 4,380 PSI

SKU: 200005500

Suttner ST-5 Vertical Mount Flow Switch. Vertical mounting position and free floating brass magnet configuration


Features:
• Vertical mounting ONLY
• Reed switch encased in protective vacuum sealed glass tube eliminating exposure to corrosive cleaning chemicals
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close
• Easy reed switch replacement
• Most proven and reliable flow switches in the industry


Specifications:
• Max. Pressure: 4,380 PS
• Min. Pressure: 75 PSI
• Max. Flow Rate: 8 GPM
• Min. Flow Rate: 1 GPM
• Max Voltage: 250 V
• Max Current: 3 Amps
• Max: Fluid Temperature: 176° F
• Cable Length: 47.0”
• Inlet & Outlet: 3/8” FNPT
• Housing: Brass
• Color: Black
• Weight: 0.98 lbs

Price: $33.87

Panel Mount Probe Style Thermostat 125 - 325º

SKU: GTLU3036

AR North America GTL Series adjustable thermostat with panel mount controls. The GTL remote probe thermostat is a capillary tube thermostat. It relies on expansion of a viscous liquid to open or close a switch. Essentially a capillary tube thermostat consists of a sensing bulb and tube with an extremely small internal diameter partially filled with a special compound. The capillary tube thermostat may be mounted some distance from the sensing bulb


Specifications:
• Temp Range: 125 - 325º F
• Ratings: UL & CE
• Amps: 20
• Volts: 250
• Capillary: Copper
• Capillary Length: 63”
• Bulb: Copper
• Tube Fitting: 1/2” Male NPT
• Probe Length: 3.07”
• Max. Pressure: 4,000 PSI
• Weight: 0.35 Lb

Price: $26.05
