Picture of 2500PSI, 2.5GPM Annovi Reverberi Direct Drive Pump (Front Mount)

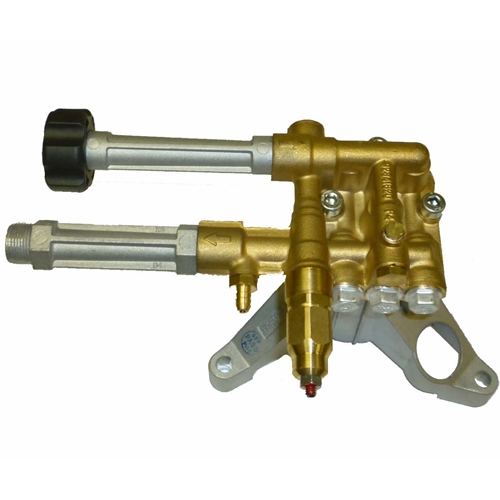

2500PSI, 2.5GPM Annovi Reverberi Direct Drive Pump (Front Mount)

SKU: RMW2.5G25D

Brand: Annovi Reverberi - AR North America

Only $131.49

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


This Annovi Reverberi / AR North America RMW25G25D, RMW 2.5G25D series plunger pump will pump up to 2.5 GPM at 2,500 PSI. Vertical Radial-Axial series replacement pump (Mounts under the engine). The hollow shafted pump includes a built-in pressure control valve and chemical injection system




Features:

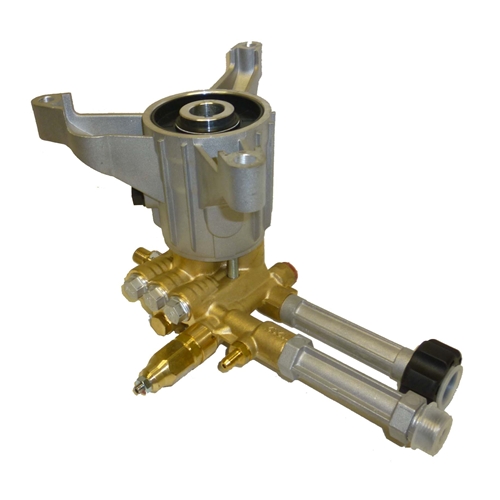

• Check the HOLE in the ARM location relative to the inlet/outlet Port (2nd Picture)

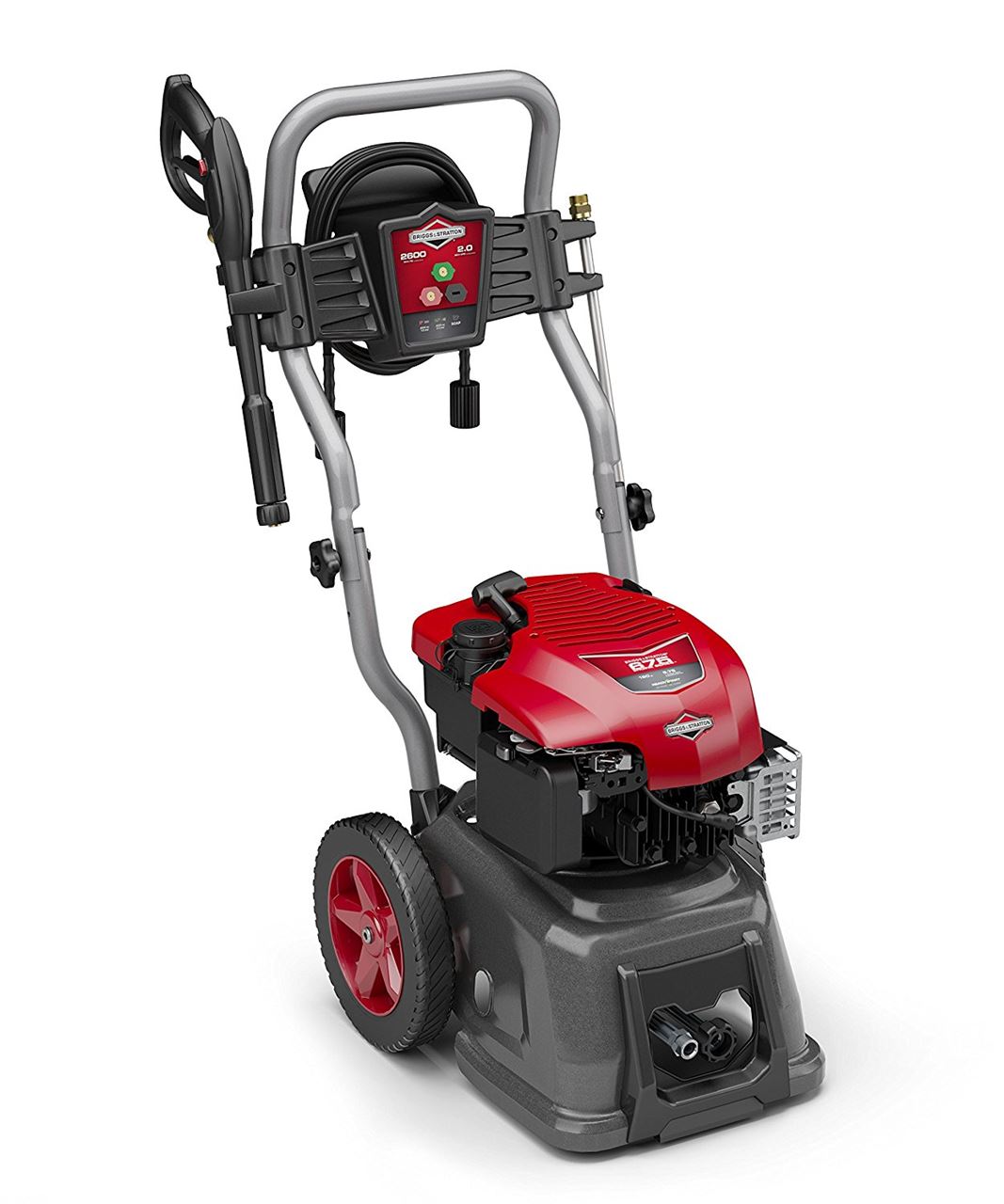

• Fits most homeowner type vertical pressure washers with Front Mounted Pump (see 3rd image)
• NOTE: This Pump DOES NOT fit Karcher units using a hex head bolt to drive the pump.


Specifications:
• Vertical Mount with Gas Flange 3-7 HP
Note: This pump is Front Mounted
• Max. Volume: 2.5 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 7/8” Hollow
• Built In unloader and chemical injector
• Maximum Horsepower Requirements: 5.8 GHP
• Inlet Port: 3/4" FGH (garden hose)
• Outlet Port: 22mm (Twist Connect)
• Auxiliary Port: 1/4” FPT
• Brass manifold
• Stainless steel plungers
• Pump comes with oil
• See optional items below or in our store
• Note: Engine shafts longer that 2” will require spacers or washers
• Weight: 7.7lb.
